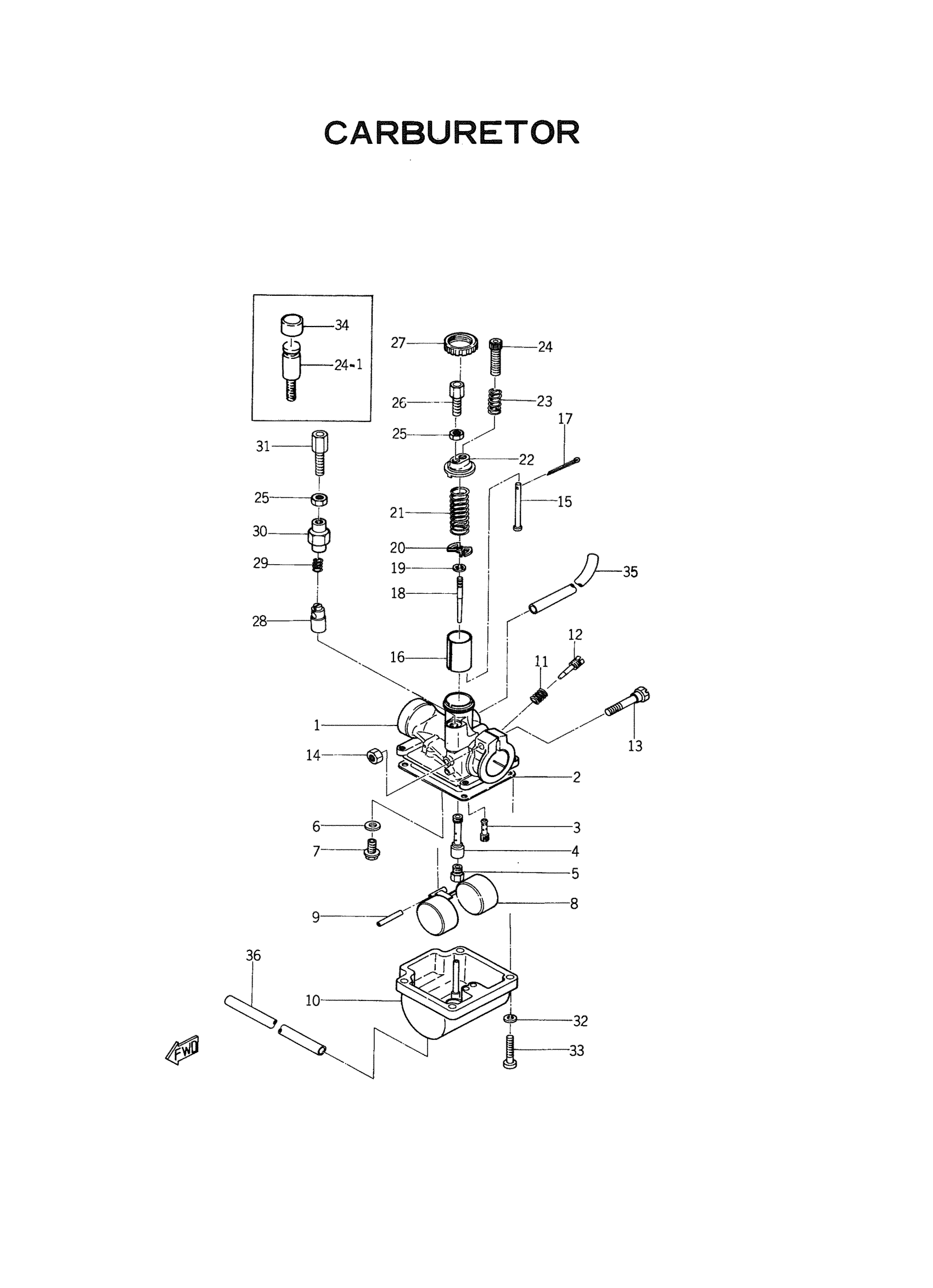

Yamaha YL2C_TRAILMASTER (TRAILMASTER) 167 1967 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
167-14101-01-00
Unavailable
3
JET, PIL0T (# 30)
193-14142-30-A0
Unavailable
4
NOZZLE, MAIN
164-14141-30-00
Unavailable
5
. JET, MAIN #80
137-14143-16-00
Unavailable
5
. JET, MAIN #90
137-14143-18-00
Unavailable
5
. JET, MAIN #95
137-14143-19-00
Unavailable
5
JET, MAIN #100
137-14143-20-00
Unavailable
5
JET, MAIN #110
137-14143-22-A0
Unavailable
7
VALVE SEAT ASSY
353-14190-15-00
Unavailable
8
. FLOAT
164-14185-00-00
Unavailable
10
BODY, FLOAT CHMBR 1
164-14181-00-00
Unavailable
11
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
12
. SCREW, AIR ADJUSTINGSET
127-W1412-00-00
Unavailable
13
. SCREW, BODY FITTING
127-14125-01-00
Unavailable
13
SCREW, BODY FITTING
137-14125-00-00
Unavailable
14
NUT, HEXAGON (663)
95380-05600-00
Unavailable
14
NUT, HEXAGON
95380-06600-00
Unavailable
16
VALVE, THROTTLE 1
166-14112-20-00
Unavailable
17
. PIN, COTTER
91490-12012-00
Unavailable
18
NEEDLE
166-14116-11-00
Unavailable
19
CLIP
3FA-14137-00-00
Unavailable
20
. SEAT, SPRING
137-14136-00-00
Unavailable
21
SPRING, THRTL VALVE
164-14131-00-00
Unavailable
22
TOP, MIXING CHAMBER
164-14158-00-00
Unavailable
23
SPRING, THROTTLE STOP
127-14133-00-00
Unavailable
24
SCREW, THRTL STOP
167-14121-00-00
Unavailable
25
NUT, WIRE ADJUSTING
127-14161-00-00
Unavailable
26
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
27
CAP, MIXING CHAMBER
164-14168-00-00
Unavailable
28
PLUNGER, STARTER
58E-14171-00-00
Unavailable
29
SPRING, PLUNGER
127-14135-00-00
Unavailable
30
CAP, PLUNGER
127-14174-00-00
Unavailable
31
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
32
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
33
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
34
CAP, THROTTLE SCREW
167-14119-00-00
Unavailable
35
HOSE
90445-07037-00
Unavailable
36
HOSE (L200)
90445-05N13-00
Unavailable
