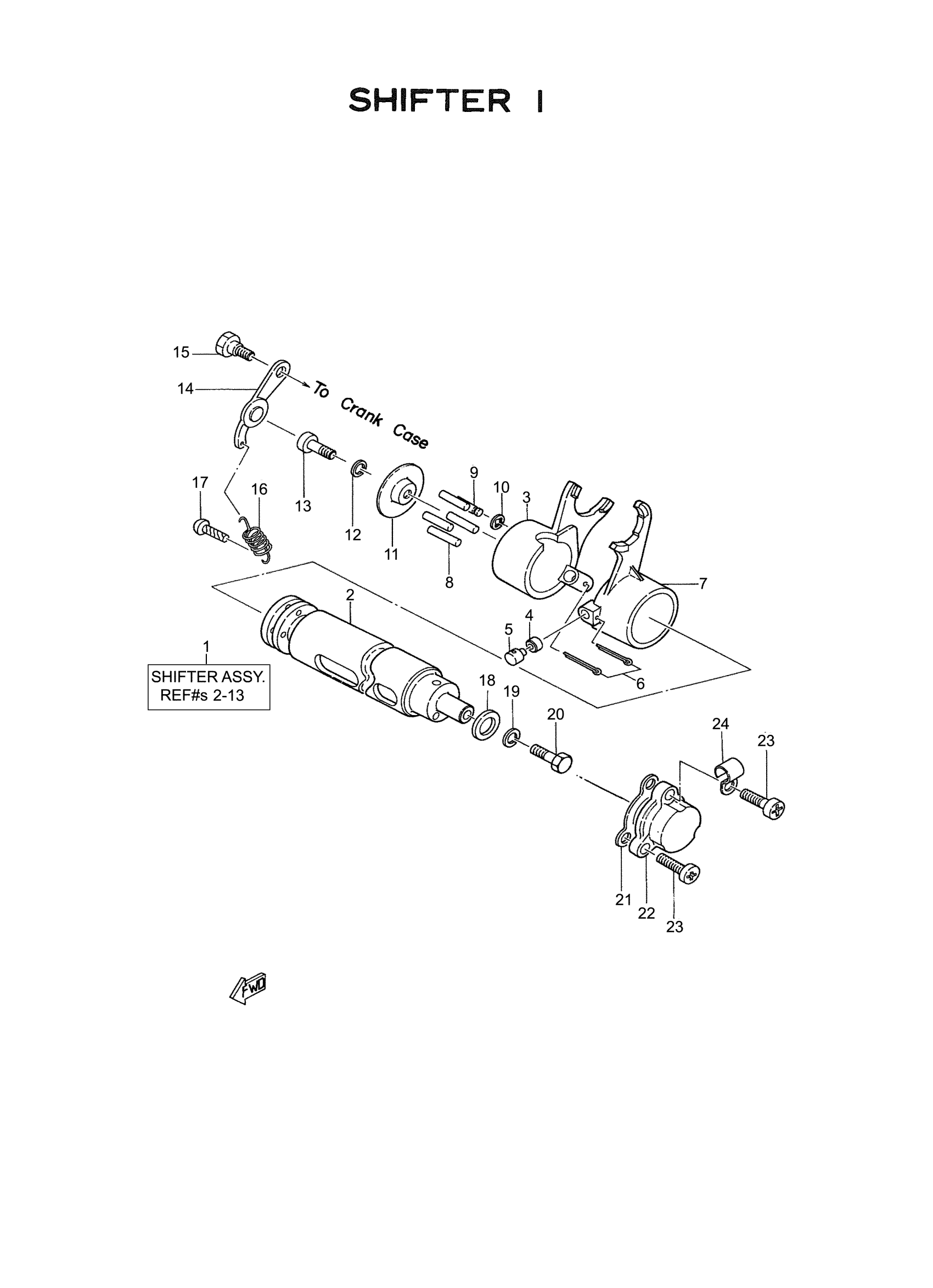

Yamaha YL2_100 (YL2) 166 1967 SHIFTER (1) Diagram

#

Description
Price

1

SHIFTER ASY

166-18500-63-00

Unavailable

2

CAM,SHIFT

166-W1854-63-00

Unavailable

3

. FORK, SHIFT 2

164-18512-00-00

Unavailable

4

. ROLLER, CAM FOLLOWER

164-18551-00-00

Unavailable

5

PIN,SPEC'L SHAPE

90249-10131-00

Unavailable

6

PIN, COTTER

91490-25020-00

$3.19

7

. FORK, SHIFT 1

164-18511-00-00

Unavailable

8

PIN, DOWEL

93604-23027-00

Unavailable

9

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

Unavailable

10

. CIRCLIP, E-TYPE

93430-03014-00

Unavailable

11

PLATE, SIDE

164-18561-00-00

$5.49

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

SCREW,PAN HEAD

92503-05012-00

Unavailable

14

STOPPER LEVER ASSY

132-18140-01-00

$15.49

15

BOLT

90109-06239-00

$7.49

16

SPRING, TENSION (260)

90506-09112-00

Unavailable

17

HOOK, SPRING

132-16346-00-00

Unavailable

18

SPRING, TENSION (260)

90506-09112-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

22

GASKET, PLUG BLIND

4EG-18579-00-00

Unavailable

23

PLUG, BLIND SHIFT CAM

164-18589-00-00

Unavailable

24

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

25

CLAMP 164825940000

90462-05012-00

Unavailable
