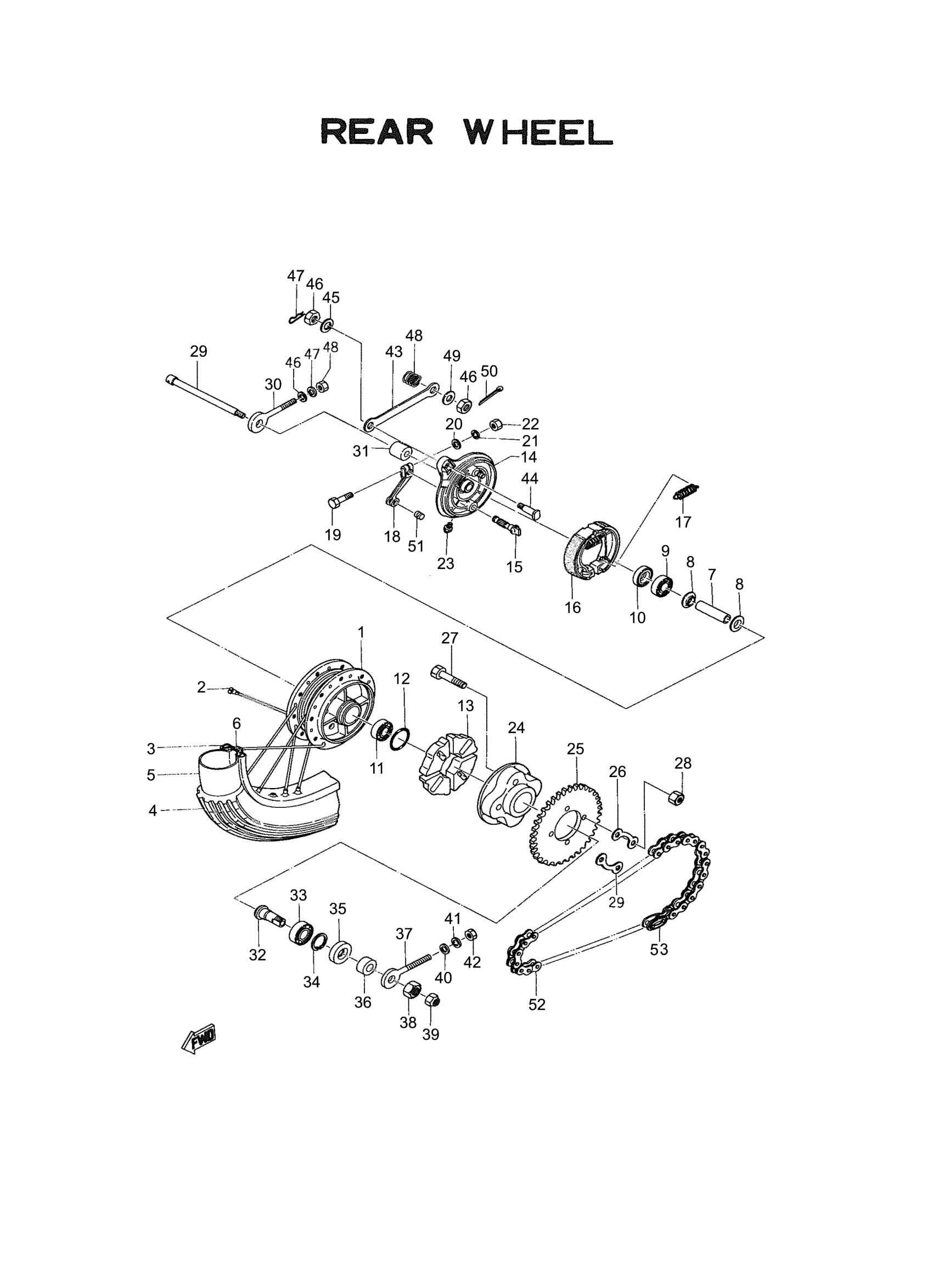

Yamaha YL2_100 (YL2) 166 1967 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

102-25311-00-38

Unavailable

2

SPOKE SET, REAR

164-25304-00-00

Unavailable

3

RIM (1.40-18)

94414-18545-00

$116.99

4

TIRE REAR (164)

94125-18351-00

Unavailable

5

TUBE (5H5)

94225-18194-00

$36.99

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER

90560-12145-00

$20.99

8

FLANGE, SPACER

109-25315-00-00

$7.99

9

BRG.

93306-30101-00

$36.99

10

OIL SEAL (21X37X7-102)

93104-21016-00

$14.99

11

BEARING

93306-30102-00

$39.99

12

O-RING (102)

93210-41041-00

$7.49

13

DAMPER

102-25364-00-00

Unavailable

14

BRAKE SHOE PLT ASY

339-25320-10-00

Unavailable

15

CAM SHAFT

122-25351-02-00

Unavailable

16

BRAKE SHOE KIT

4KN-W253E-11-00

Unavailable

17

SPRING, TENSION (566).

90506-16150-00

Unavailable

18

LEVER, CAM SHAFT

122-25355-00-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

NIPPLE, GREASE

93700-06M03-00

Unavailable

24

CLUTCH, HUB

102-25366-00-00

Unavailable

25

SPROCKET, DRIVEN (37T)

122-25437-11-00

Unavailable

25

SPROCKET, DRIVN 39T

122-25439-10-33

Unavailable

25

SPROCKET, DRIVEN (35T)

5A7-25435-01-00

Unavailable

26

WASHER

4AW-25412-00-00

Unavailable

27

BOLT(1AJ)

90101-08672-00

Unavailable

28

NUT(6L2)

95333-08600-00

Unavailable

29

AXLE,WHEEL

357-25381-00-00

Unavailable

30

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

31

COLLAR 102253830000

90387-12412-00

Unavailable

32

AXLE,SPROCKET

102-25387-02-00

Unavailable

33

BEARING(3BN)

93306-00438-00

Unavailable

34

CIRCLIP(5U8)

99009-42500-00

Unavailable

35

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

36

COLLAR

90387-18143-00

Unavailable

37

PULLER, CHAIN

4GL-2538A-10-00

Unavailable

38

NUT, HEXAGON

90170-18165-00

Unavailable

39

NUT,SPEC'L SHAPE

90179-10106-00

Unavailable

40

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

41

WASHER, SPRING

92995-06100-00

Unavailable

42

NUT, HEXAGON

95380-06600-00

Unavailable

43

BAR, TENSION

102-25371-00-00

Unavailable

44

BOLT 1022537300

90109-08183-00

Unavailable

45

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

46

. NUT

95380-08700-00

Unavailable

47

CLIP (156-83525-00)

90468-10050-00

Unavailable

48

SPRING,COMPRESSION

90501-20129-00

Unavailable

49

WASHER, PLAIN

92990-08200-00

Unavailable

50

PIN, COTTER

91490-20025-00

Unavailable

51

PIN 1562723700

90249-12008-00

Unavailable

52

420 100L

94504-20100-00

Unavailable

53

JOINT, CHAIN (29A)

94680-52001-00

Unavailable
