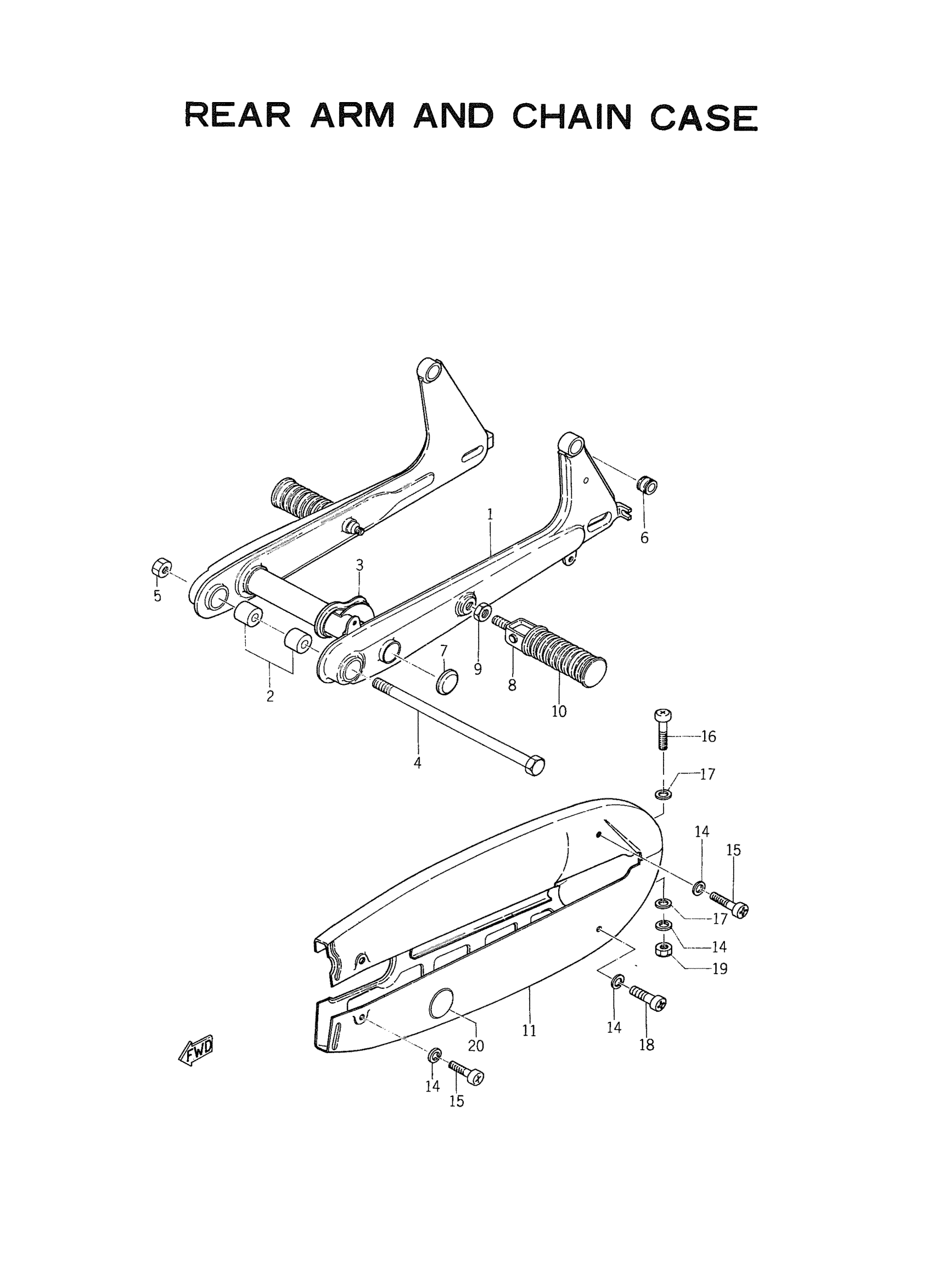

Yamaha YL2_100 (YL2) 166 1967 REAR ARM AND CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

164-22110-02-00

Unavailable

2

BUSH 1

102-22123-00-00

Unavailable

3

SEAL,GUARD

296-22151-01-00

Unavailable

4

SHAFT, PIVOT

486-22141-01-00

$33.99

5

NUT(3BM)

95314-10600-00

$2.39

6

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

7

CAP, REAR ARM

180-22117-00-00

$7.99

8

REAR FOOTREST ASSY

120-27430-02-00

Unavailable

9

NUT, HEXAGON SMALL

95317-12700-00

$8.49

10

COVER, REAR FOOTREST

120-27433-00-00

$8.99

11

CHAIN CASE ASSEMBLY

164-22310-01-81

Unavailable

12

GUARD, CHAIN

167-22318-00-81

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

SCREW, PAN HEAD(3AH)

98507-05006-00

$3.55

16

SCREW, PAN

98507-05035-00

$8.49

17

. WASHER, PLAIN

92990-05200-00

Unavailable

18

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

19

NUT, HEXAGON (663)

95380-05600-00

Unavailable

20

CAP

148-22315-00-00

Unavailable
