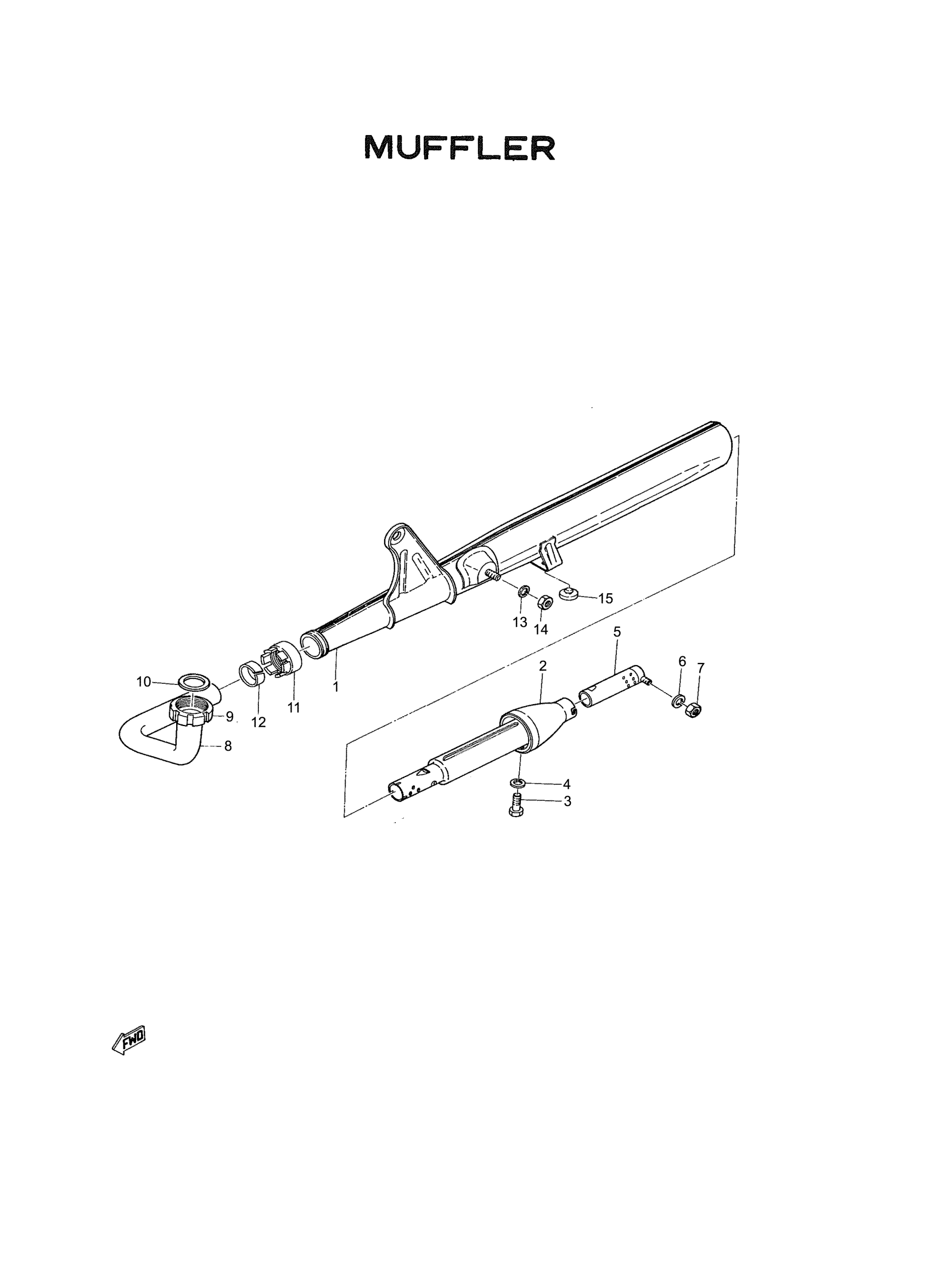

Yamaha YL2_100 (YL2) 166 1967 MUFFLER Diagram

#

Description
Price

1

MUFFLER ASSEMBLY L

166-14710-22-00

Unavailable

2

ARRESTER, SPARK

122-14786-20-00

Unavailable

3

BOLT, HEXAGON

97013-05010-00

$0.59

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

DIFFUSER

(122-14785-20-00)

Unavailable

6

WASHER, SPRING

92995-06100-00

Unavailable

7

NUT, HEXAGON

95380-06600-00

Unavailable

8

PIPE, EXHAUST L

166-14611-00-00

Unavailable

9

NUT, RING

134-14612-00-00

Unavailable

10

GASKET, EXHAUST PIPE

3MT-14613-00-00

$10.99

11

NUT, MUFFLER JOINT

132-14713-00-00

Unavailable

12

GASKET, MUFFLER

3NA-14714-01-00

Unavailable

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

NUT(6L2)

95333-08600-00

$2.49

15

STOPPER

1M3-27114-00-00

$8.99
