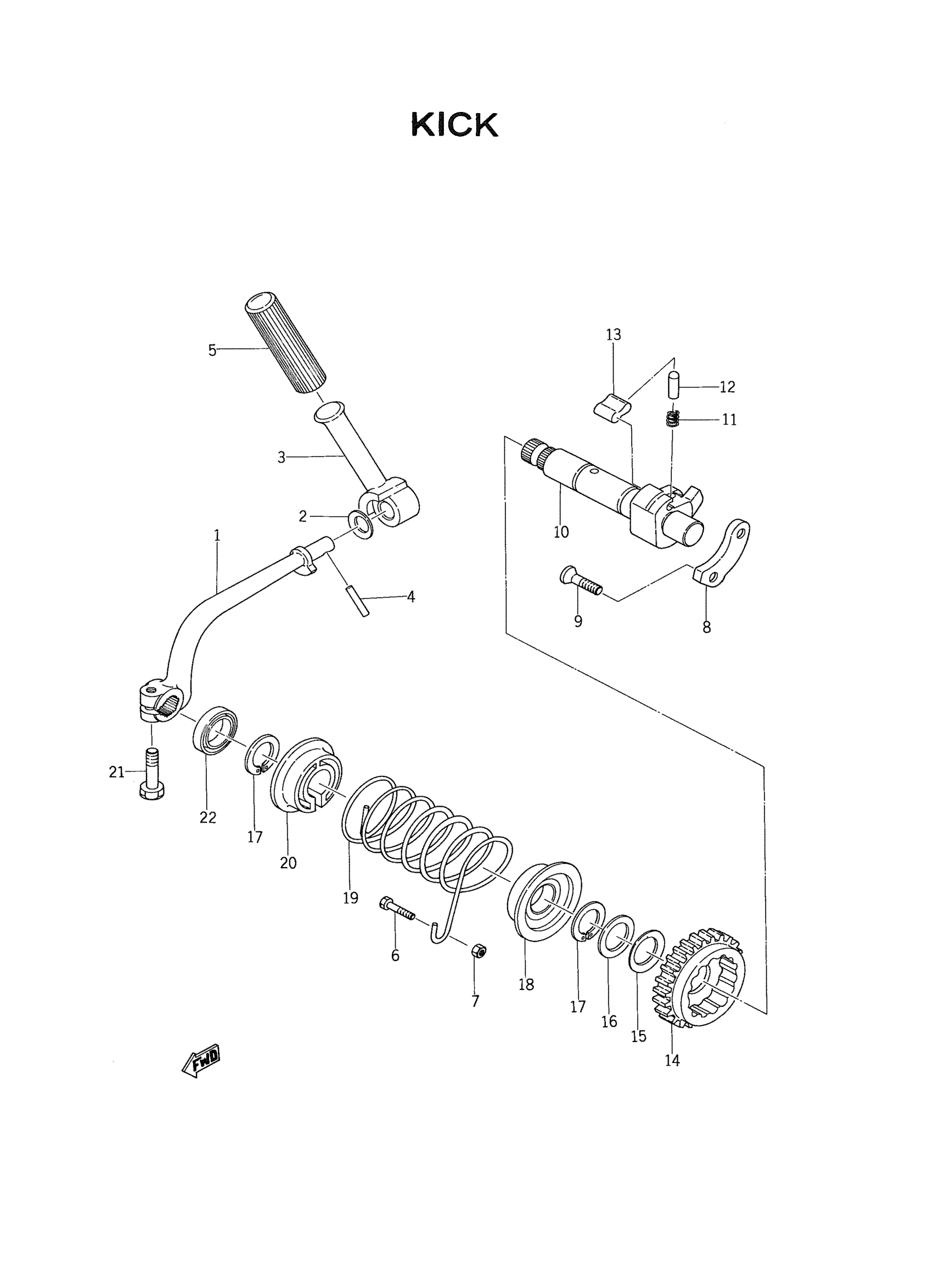

Yamaha YL2_100 (YL2) 166 1967 KICK Diagram

#

Description
Price

1

KICK CRANK ASSEMBLY

164-15611-00-00

Unavailable

2

WASHER,WAVE

90206-10014-00

Unavailable

3

LEVER,KICK

214-15612-09-00

Unavailable

4

. PIN, DOWEL

93604-18017-00

Unavailable

5

COVER, KICK LEVER

156-15618-01-00

$7.99

6

STOPPER, KICK SPRING

257-15668-00-00

Unavailable

7

NUT(6L2)

95333-08600-00

$2.49

8

STOPPER, PAWL

131-15638-00-00

Unavailable

9

SCREW, FLAT

98707-06014-00

$8.49

10

AXLE, KICK

132-15661-00-00

Unavailable

11

SPRING,COMPRESSION

90501-05020-00

Unavailable

12

PIN, STRAIGHT

90250-05006-00

Unavailable

13

PAWL, KICK

131-15635-00-00

Unavailable

14

GEAR, KICK

132-15641-00-00

Unavailable

15

WASHER WAVE 137156430000

90206-15021-00

Unavailable

16

SHIM

132-15644-00-00

Unavailable

17

CIRCLIP(1AR)

99009-15400-00

Unavailable

18

GUIDE, KICK SPRING

132-15664-01-00

Unavailable

19

SPRING TORSION 304156650000

90508-26136-00

Unavailable

20

COVER, KICK SPRING

132-15676-01-00

Unavailable

21

BOLT, HEXAGON

97017-06020-00

Unavailable

22

OIL SEAL (15X26X6-102)

93109-15001-00

Unavailable

23

KICK CRANK ASSY

357-15620-02-00

Unavailable
