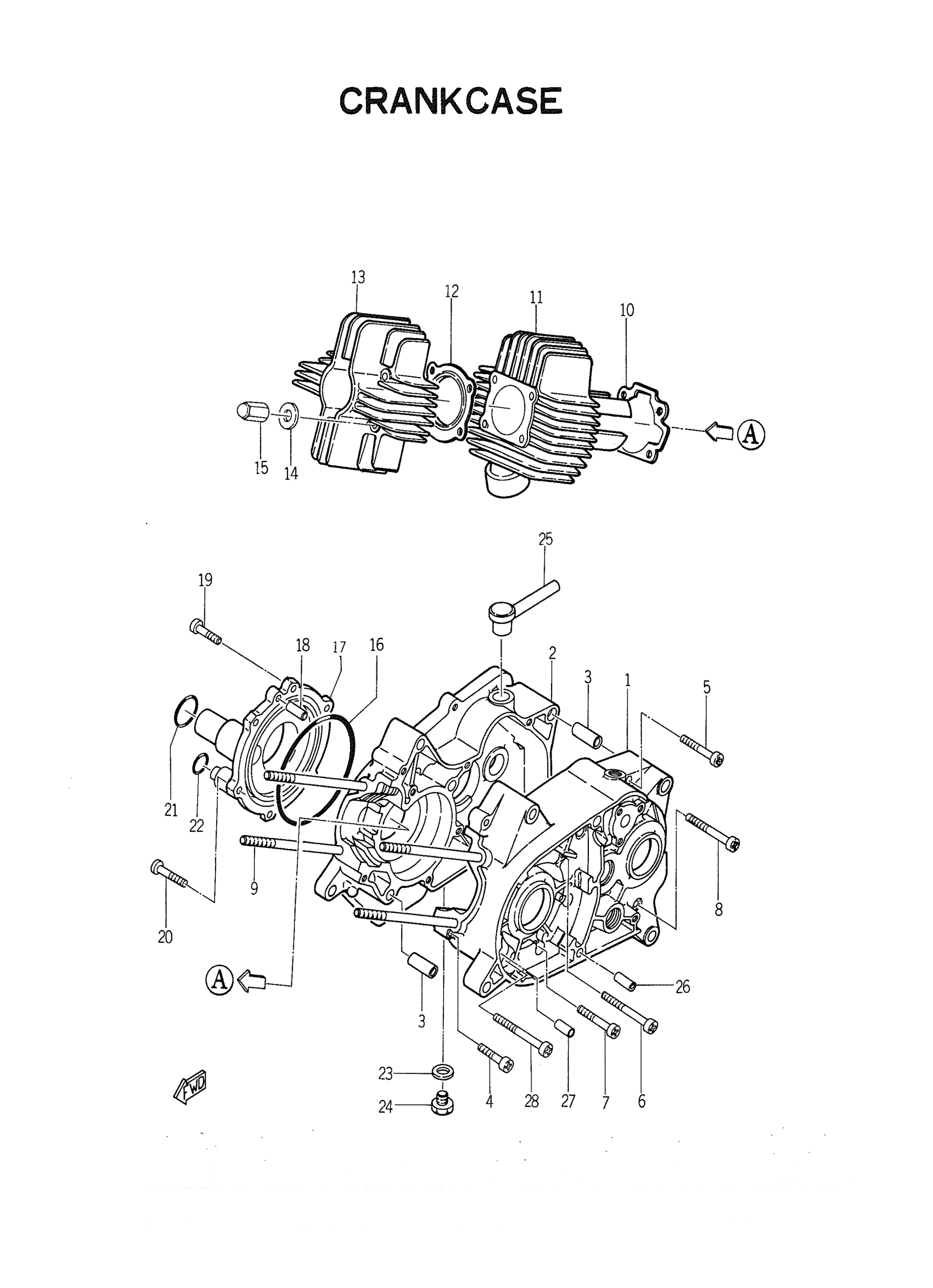

Yamaha YL2_100 (YL2) 166 1967 CRANK CASE Diagram

#

Description

Price

1

CRANKCASE 1

164-15111-01-00

Unavailable

2

CRANKCASE 2

164-15121-01-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

5

SCREW PAN HEAD

98580-06545-00

$5.60

6

SCREW PAN HEAD

98580-06565-00

Unavailable

7

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

8

SCREW, BIND (JH1)

98580-06560-00

Unavailable

9

BOLT, STUD 1641136100

90116-07035-00

$11.49

10

GASKET, CYLINDER

131-11351-01-00

Unavailable

11

CYLINDER 1

166-11311-00-00

Unavailable

12

GASKET, CYLINDER HEAD

531-11181-00-00

Unavailable

13

HEAD,CYLINDER 1

205-11111-00-00

Unavailable

14

WASHER, PLATE

90201-07077-00

Unavailable

15

NUT, CROWN (166-11171-60)

90176-07003-00

Unavailable

16

O-RING

93211-03063-00

Unavailable

17

COVER, VALVE

164-13551-01-00

Unavailable

18

PIN,DOWEL (137)

93604-14012-00

Unavailable

19

SCREW, PAN

98507-06014-00

Unavailable

20

SCREW, OVAL HEAD

98603-06018-00

Unavailable

21

O-RING (122)

93210-23029-00

Unavailable

22

O-RING (137)

93210-12014-00

Unavailable

23

GASKET (3JD1)

90430-12207-00

Unavailable

24

PLUG STRAIGTSCREW 132153510000

90340-12005-00

Unavailable

25

BREATHER

206-15371-00-00

Unavailable

26

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

27

PIN, DOWEL

93603-14026-00

Unavailable

28

SCREW PAN HEAD

98580-06570-00

Unavailable
