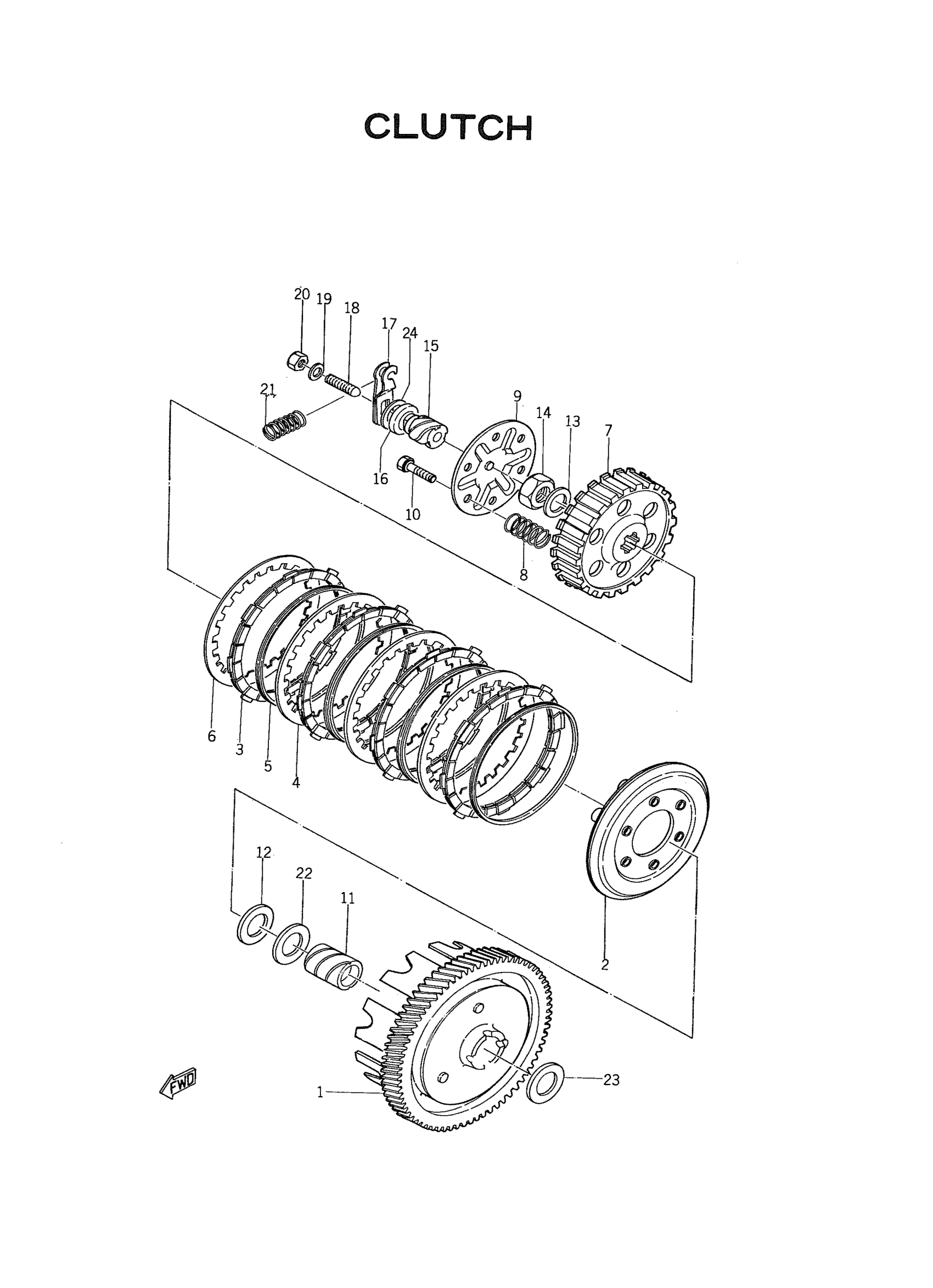

Yamaha YL2_100 (YL2) 166 1967 CLUTCH Diagram

#

Description
Price

1

. PRI DRVN GEAR

164-16105-02-00

Unavailable

1

CLUTCH ASSEMBLY

164-16301-02-00

Unavailable

2

. PLATE, PRESSURE 2

131-16352-01-00

Unavailable

3

PLATE, FRICTION

4EU-16321-00-00

$25.99

4

PLATE, CLUTCH 1

131-16324-10-00

$20.99

5

RING, CUSHION

131-16367-00-00

Unavailable

6

PLATE, CLUTCH 3

(131-16326-00-00)

Unavailable

7

. BOSS, CLUTCH

164-16371-02-00

Unavailable

8

SPRING COMPRESSION180163330000

90501-20126-00

Unavailable

9

PLATE, PREESURE 1

122-16351-90-00

Unavailable

10

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

10

SCREW, PAN HEAD

98580-05020-00

Unavailable

11

SPACER (517)

90560-17146-00

Unavailable

12

PLATE, THRUST

131-16154-00-00

Unavailable

13

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

14

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

15

SCREW, PUSH

164-16341-01-00

Unavailable

16

OIL SEAL, SO-TYPE

93104-15009-00

Unavailable

17

LEVER, PUSH

164-16342-01-00

Unavailable

18

BOLT SET 241163430000

90113-06013-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

NUT(650)

95380-06700-00

Unavailable

21

SPRING, COMPRESSION

90501-08040-00

Unavailable

22

. BEARING, FLAT #41

93341-22302-00

Unavailable

23

PLATE, THRUST

122-16164-00-00

Unavailable

24

WASHER, STPPR LEVER

102-18454-00-00

Unavailable
