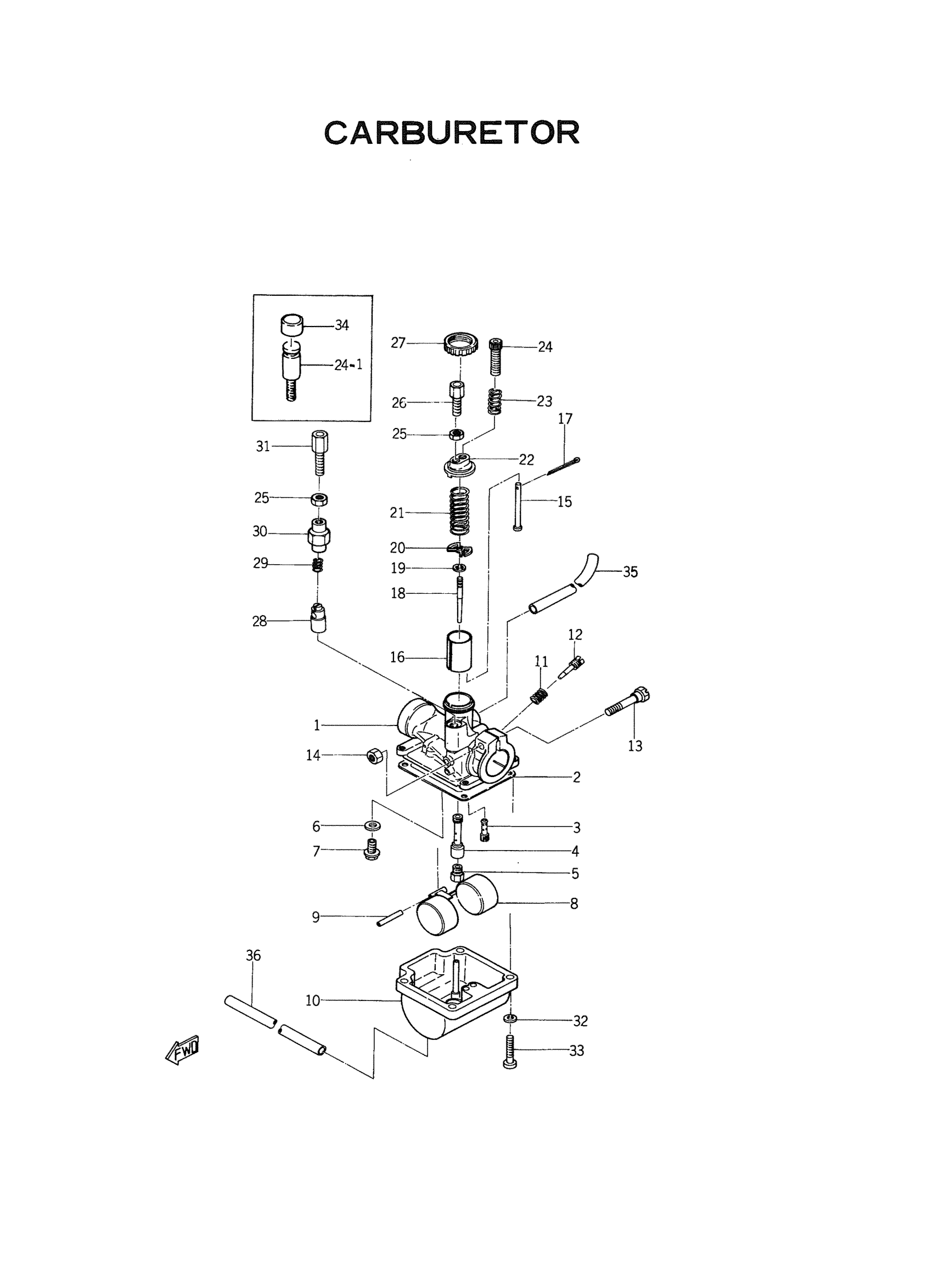

Yamaha YL2_100 (YL2) 166 1967 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

166-14101-01-00

Unavailable

2

GASKET, FLOAT CHAMBER

164-14184-00-00

$16.49

3

JET, PILOT (# 20)

193-14142-20-00

$9.99

4

NOZZLE, MAIN

164-14141-30-00

Unavailable

5

JET, MAIN #100

137-14143-20-00

Unavailable

5

JET, MAIN #110

137-14143-22-A0

Unavailable

5

. JET, MAIN #120

137-14143-24-00

Unavailable

6

WASHER, VALVE SEAT

127-14195-00-00

$7.99

7

VALVE SEAT ASSY

353-14190-15-00

Unavailable

8

. FLOAT

164-14185-00-00

Unavailable

9

PIN, FLOAT

127-14186-00-00

$6.65

10

BODY, FLOAT CHMBR 1

164-14181-00-00

Unavailable

11

SPRING, AIR ADJUSTING

127-14134-00-00

$7.99

12

. SCREW, AIR ADJUSTINGSET

127-W1412-00-00

Unavailable

13

. SCREW, BODY FITTING

127-14125-01-00

Unavailable

13

SCREW, BODY FITTING

137-14125-00-00

Unavailable

14

NUT, HEXAGON (663)

95380-05600-00

Unavailable

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

BAR, THROTTLE

164-14114-00-00

Unavailable

16

VALVE, THROTTLE 1

166-14112-20-00

Unavailable

17

. PIN, COTTER

91490-12012-00

Unavailable

18

NEEDLE

166-14116-11-00

Unavailable

19

CLIP

3FA-14137-00-00

Unavailable

20

. SEAT, SPRING

137-14136-00-00

Unavailable

21

SPRING, THRTL VALVE

164-14131-00-00

Unavailable

22

TOP, MIXING CHAMBER

164-14158-00-00

Unavailable

23

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

24

SCREW, THRTL STOP

127-14121-00-00

Unavailable

25

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

26

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

27

CAP, MIXING CHAMBER

164-14168-00-00

Unavailable

28

PLUNGER, STARTER

58E-14171-00-00

Unavailable

29

SPRING, PLUNGER

127-14135-00-00

Unavailable

30

CAP, PLUNGER

127-14174-00-00

Unavailable

31

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

32

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

33

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

34

CAP, THROTTLE SCREW

167-14119-00-00

Unavailable

35

HOSE

90445-07037-00

Unavailable

36

HOSE (L200)

90445-05N13-00

Unavailable
