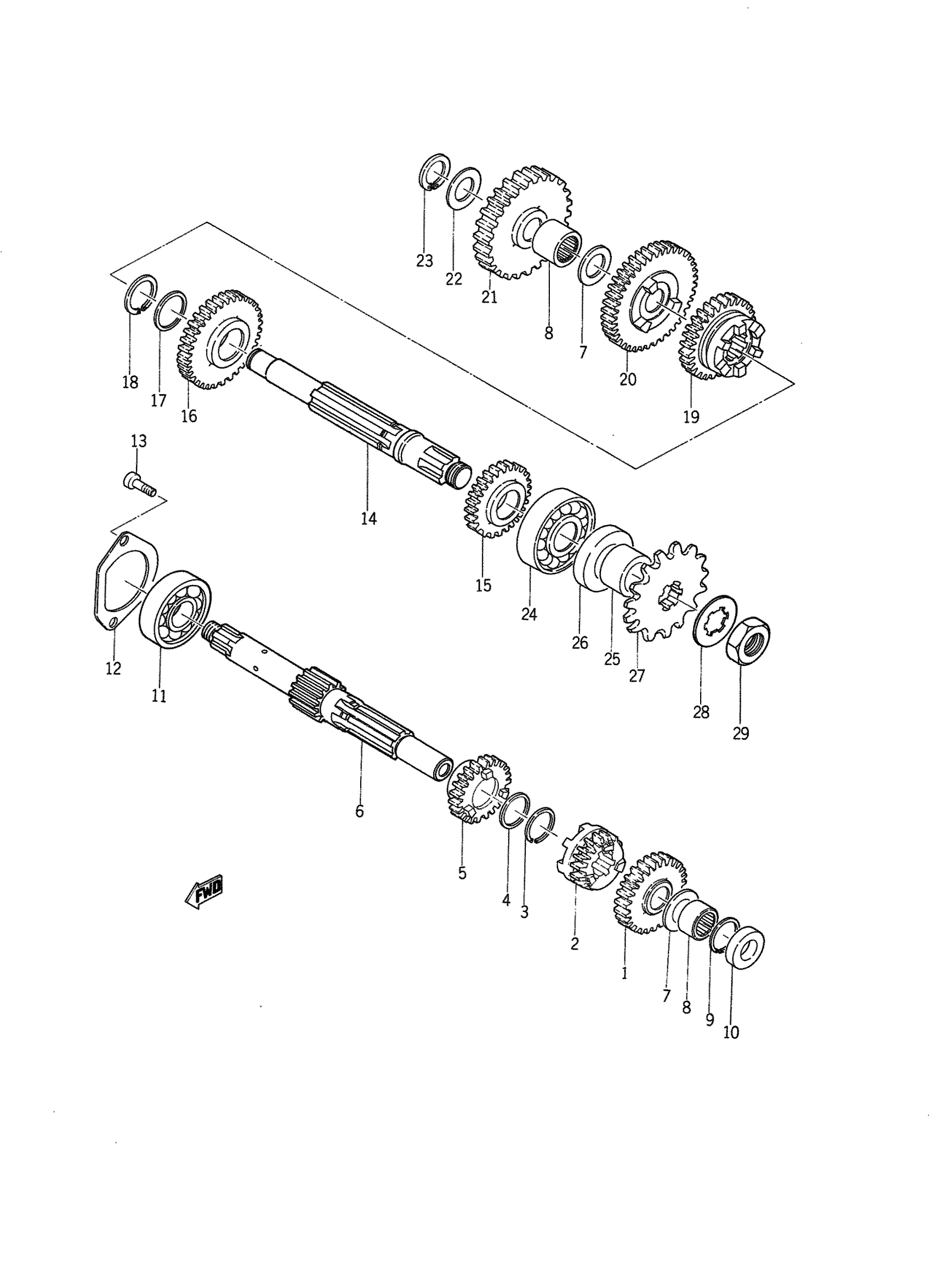

Yamaha YL1 (YL1_1E) 1966 TRANSMISSION Diagram

#

Description
Price

1

GEAR, 4TH PINION

132-17141-01-00

Unavailable

2

GEAR, 2ND PINION

132-17121-00-00

Unavailable

3

CIRCLIP (525)

93410-20038-00

$3.76

4

WASHER PLATE 132172160000

90201-20266-00

$9.49

5

GEAR, 3RD PINION

132-17131-00-00

Unavailable

6

AXLE, MAIN

132-17411-01-00

Unavailable

7

SHIM, DRIVE AXLE

164-17427-00-06

$5.49

8

BEARING, CYLINDER.#15

93315-31501-00

Unavailable

9

CIRCLIP, R-TYPE

93420-22026-00

Unavailable

10

SEAL, PUSH ROD (3V6)

93109-06060-00

$8.49

11

BRG,R-B 6303 47MM 115G NK

93306-30302-00

$45.99

12

PLATE, COVER

132-17471-02-00

Unavailable

13

SCREW, PAN

98507-06014-00

$8.49

14

AXLE, DRIVE

132-17421-02-00

Unavailable

15

GEAR, 4TH WHEEL

132-17241-00-00

Unavailable

16

GEAR, 2ND WHEEL

132-17221-00-00

Unavailable

17

WASHER PLATE 132172160000

90201-20266-00

$9.49

18

CIRCLIP (525)

93410-20038-00

$3.76

19

GEAR, 3RD WHEEL

132-17231-00-00

Unavailable

20

GEAR, 1ST WHEEL

132-17211-01-00

Unavailable

21

GEAR, KICK IDLE

132-15651-00-00

Unavailable

22

WASHER

132-15653-00-10

Unavailable

23

CIRCLIP(13M)

99009-13400-00

Unavailable

24

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

25

COLLAR

90387-20346-00

Unavailable

26

OIL SEAL

93106-28043-00

Unavailable

27

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

Unavailable

27

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

Unavailable

27

SPROCKET, DRIVE (166-17461-60)

93812-16092-00

Unavailable

28

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

29

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable
