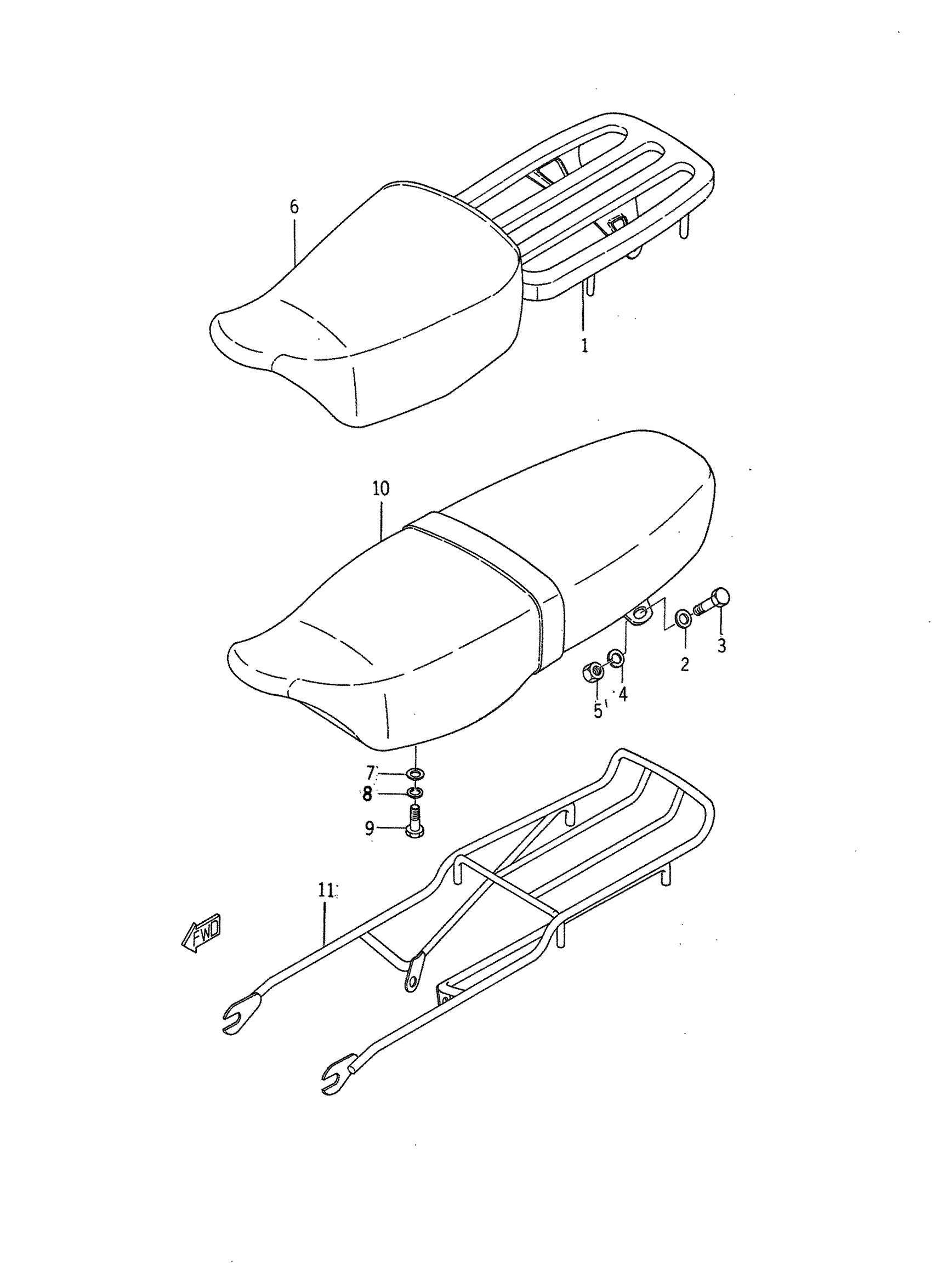

Yamaha YL1 (YL1_1E) 1966 SEAT - CARRIER Diagram

#

Description
Price

1

CARRIER ASSY.

122-24810-00-00

Unavailable

2

WASHER, PLAIN

92990-08200-00

Unavailable

3

BOLT(JA9)

90101-08691-00

$4.29

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

NUT(6L2)

95333-08600-00

$2.49

6

SINGLE SEAT ASSEMBLY

132-24710-00-00

Unavailable

7

WASHER, PLAIN

92990-08200-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

BOLT, HEXAGON

97013-08016-00

$1.01

10

DOUBLE SEAT ASY

195-24730-00-00

Unavailable

11

SUB CARR YG1/YL1

122-24830-00-00

Unavailable

12

COVER, SINGLE SEAT

132-24711-00-00

Unavailable

13

COVER, DOUBLE SEAT

134-24731-60-00

Unavailable
