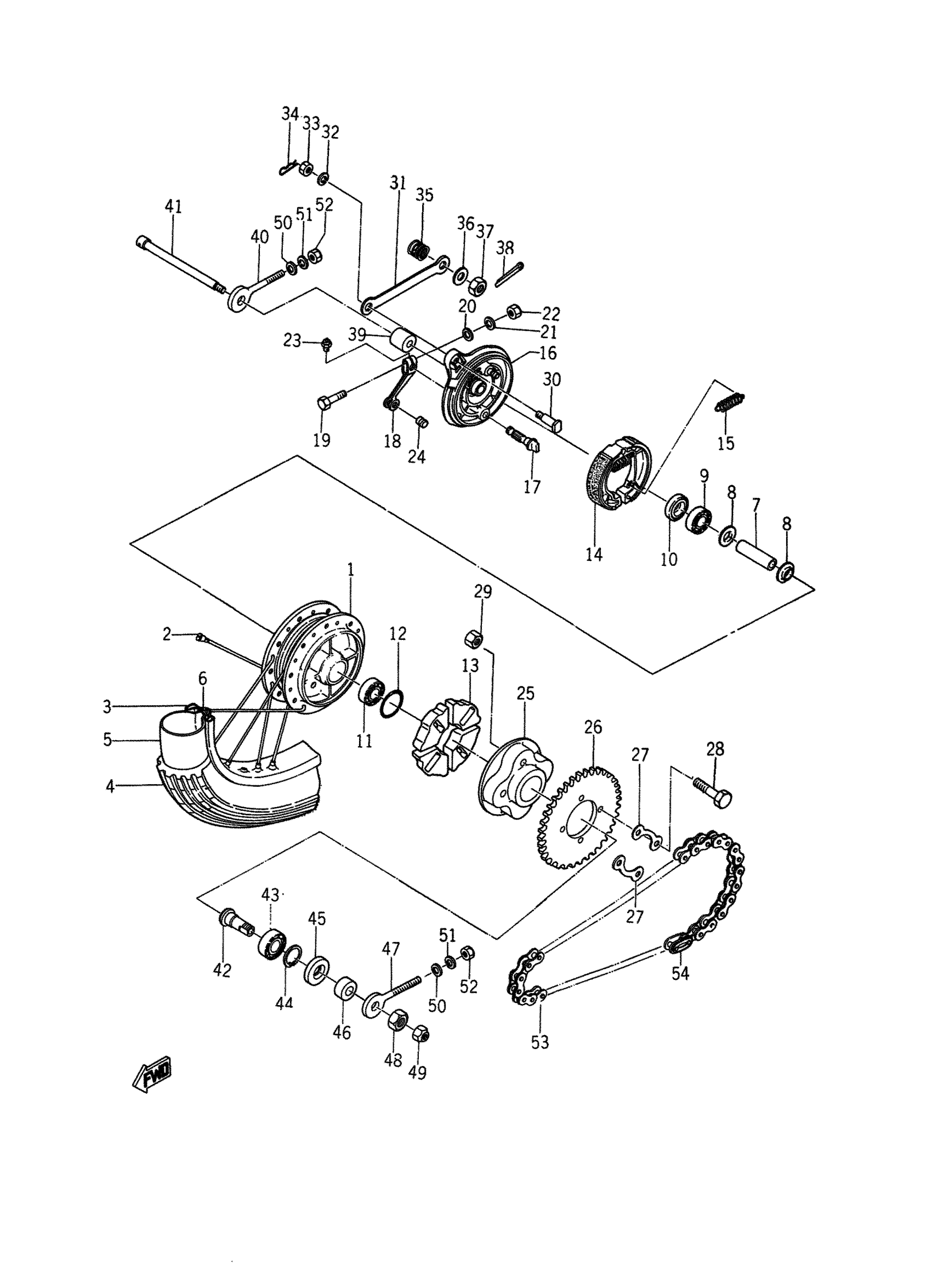

Yamaha YL1 (YL1_1E) 1966 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

102-25311-00-38

Unavailable

2

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

3

RIM 1.40X17

94414-17003-00

Unavailable

4

250X17 FRNTRIB

94125-17313-00

Unavailable

5

TUBE

94225-17082-00

Unavailable

6

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

$9.49

7

SPACER

90560-12145-00

$20.99

8

FLANGE, SPACER

109-25315-00-00

$7.99

9

BRG.

93306-30101-00

$36.99

10

OIL SEAL (21X37X7-102)

93104-21016-00

$14.99

11

BEARING

93306-30102-00

$39.99

12

O-RING (102)

93210-41041-00

$7.49

13

CLUTCH, HUB

102-25366-00-00

Unavailable

14

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

15

SPRING, TENSION (566).

90506-16150-00

$9.49

16

BRAKE SHOE PLT ASY

339-25320-10-00

Unavailable

17

CAM SHAFT

122-25351-02-00

Unavailable

18

LEVER, CAM SHAFT

122-25355-00-00

Unavailable

19

BOLT(JF7)

97080-06030-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

NIPPLE, GREASE

93700-06M03-00

Unavailable

24

PIN 1562723700

90249-12008-00

Unavailable

25

CLUTCH, HUB

102-25366-00-00

Unavailable

26

SPROCKET, DRIVN 33T

122-25433-10-00

Unavailable

26

SPROCKET, DRIVEN (37T)

122-25437-11-00

Unavailable

26

SPROCKET, DRIVEN (35T)

5A7-25435-01-00

Unavailable

27

WASHER

4AW-25412-00-00

Unavailable

28

BOLT(1AJ)

90101-08672-00

Unavailable

29

NUT(6L2)

95333-08600-00

Unavailable

30

BOLT 1022537300

90109-08183-00

Unavailable

31

BOLT 1022537300

90109-08183-00

Unavailable

32

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

33

. NUT

95380-08700-00

Unavailable

34

CLIP (156-83525-00)

90468-10050-00

Unavailable

35

SPRING (137-16333-00)

90501-20122-00

Unavailable

36

WASHER, PLAIN

92990-08200-00

Unavailable

37

. NUT

95380-08700-00

Unavailable

38

PIN, COTTER

91490-20025-00

Unavailable

39

COLLAR 102253830000

90387-12412-00

Unavailable

40

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

41

AXLE, WHEEL

357-25181-00-00

Unavailable

42

AXLE,SPROCKET

102-25387-02-00

Unavailable

43

BEARING(3BN)

93306-00438-00

Unavailable

44

CIRCLIP(5U8)

99009-42500-00

Unavailable

45

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

46

COLLAR 167253860000

90387-18144-00

Unavailable

47

PULLER, CHAIN

4GL-2538A-10-00

Unavailable

48

NUT, HEXAGON

90170-18165-00

Unavailable

49

NUT, SPEC''L SHAPE

90179-10123-00

Unavailable

50

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

51

WASHER, SPRING

92995-06100-00

Unavailable

52

NUT, HEXAGON

95380-06600-00

Unavailable

53

420-106L

94580-52106-00

Unavailable

54

JOINT, CHAIN (29A)

94680-52001-00

Unavailable
