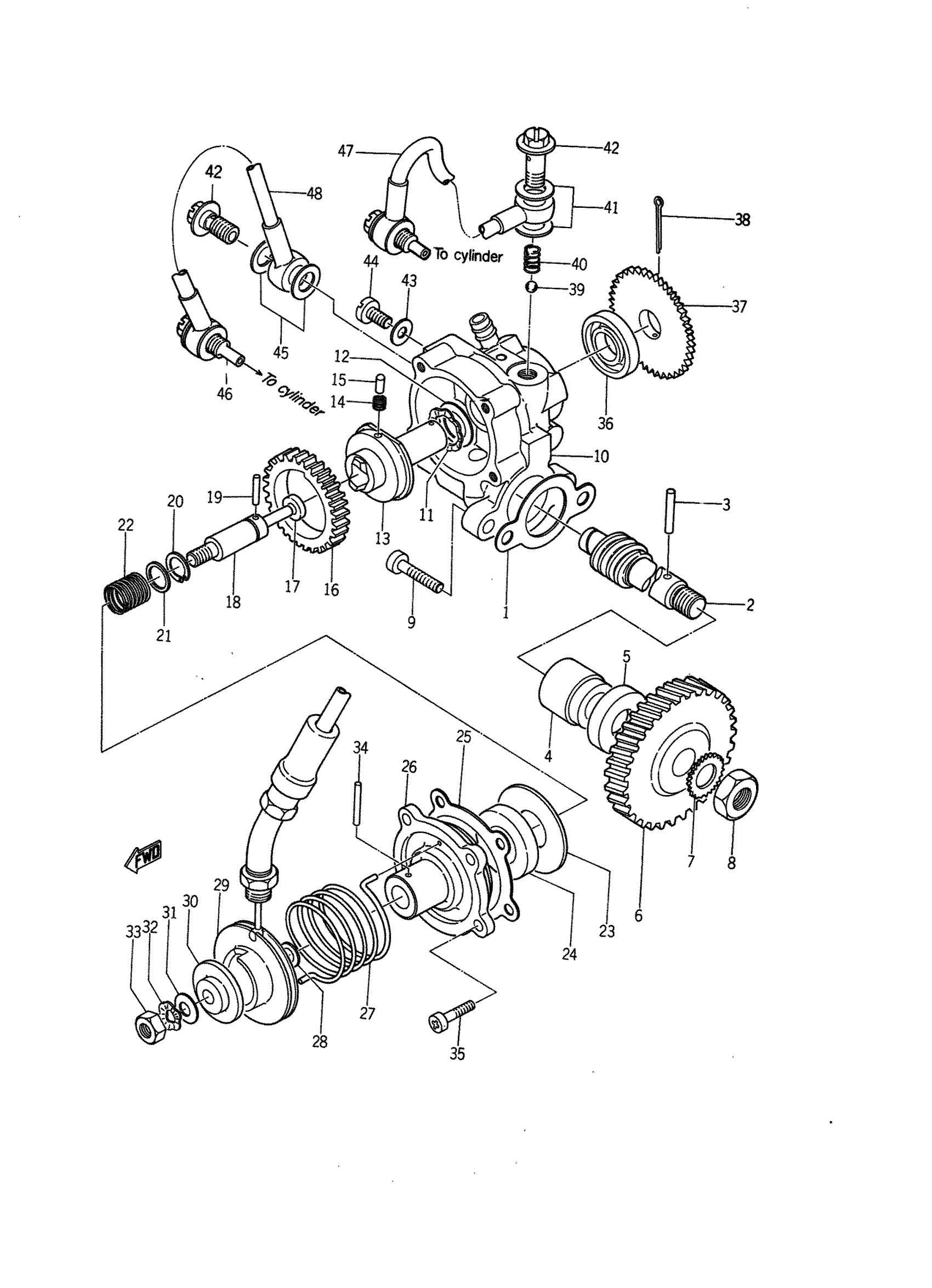

Yamaha YL1 (YL1_1E) 1966 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

132-13101-02-00

Unavailable

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

SHAFT, WORM

132-13175-00-00

Unavailable

3

PIN,DOWEL (137)

93603-22028-00

$3.76

4

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

5

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

6

GEAR, PUMP DRIVE

132-13178-01-00

Unavailable

7

WASHER (688)

92990-08400-00

Unavailable

8

. NUT

95380-08700-00

Unavailable

9

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

. UNAVAILABLE IN PRICE BOOK (137-13129-00)

90206-10016-00

Unavailable

12

PLATE, CAM THRUST

137-13148-00-00

Unavailable

14

SPRING,COMPRESSION

90501-02016-00

Unavailable

15

. PIN, DOWEL

93602-04029-00

Unavailable

16

GEAR, WORM WHEEL

110-13124-00-00

Unavailable

17

OIL SEAL

93104-04114-00

Unavailable

19

PIN,DOWEL (137)

93603-12030-00

Unavailable

20

. CIRCLIP, PLUNGER

93440-08001-00

Unavailable

21

. SEAT, SPRING

137-13134-00-00

Unavailable

22

. SPRING, PLNGR RTRN

137-13135-00-00

Unavailable

23

. PLATE, WORM WHEEL

137-13127-00-00

Unavailable

24

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

25

. GASKET, PUMP CASE COVER

137-13142-00-00

Unavailable

27

. SPRING, TORSION (156-13145-00)

90508-10013-00

Unavailable

28

SHIM,PLUNGER

137-13137-00-10

Unavailable

29

PULLEY, ADJUSTING

132-13144-00-00

Unavailable

30

SHIM,PLUNGER

137-13137-00-10

Unavailable

31

SHIM,PLUNGER

137-13137-00-10

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

. NUT

137-13139-00-00

Unavailable

34

. PIN

91608-20010-00

Unavailable

35

SCREW, PAN HEAD

92501-04010-00

Unavailable

36

OIL SEAL (J10)

93101-10090-00

Unavailable

37

. PLATE, STARTER

137-13128-00-00

Unavailable

38

. PIN, COTTER

91401-12018-00

Unavailable

39

BALL

93505-32002-00

Unavailable

40

. SPRING, COMPRESSION

90501-02017-00

Unavailable

41

GASKET(3FP)

90430-06224-00

Unavailable

42

BOLT UNION 137131650000

90401-06001-00

Unavailable

43

GASKET 137131870000

90430-04004-00

Unavailable

44

SCREW,PAN HEAD

164-81245-20-00

Unavailable

45

GASKET(3FP)

90430-06224-00

Unavailable

46

UNAVAILABLE IN PRICE BOOK (132-13166-00))

90401-05011-00

Unavailable

47

PIPE, DELIVERY 1

132-13161-00-00

Unavailable

48

PIPE, DELIVERY 2

132-13171-00-00

Unavailable
