HEAD LAMP - TAIL LAMP

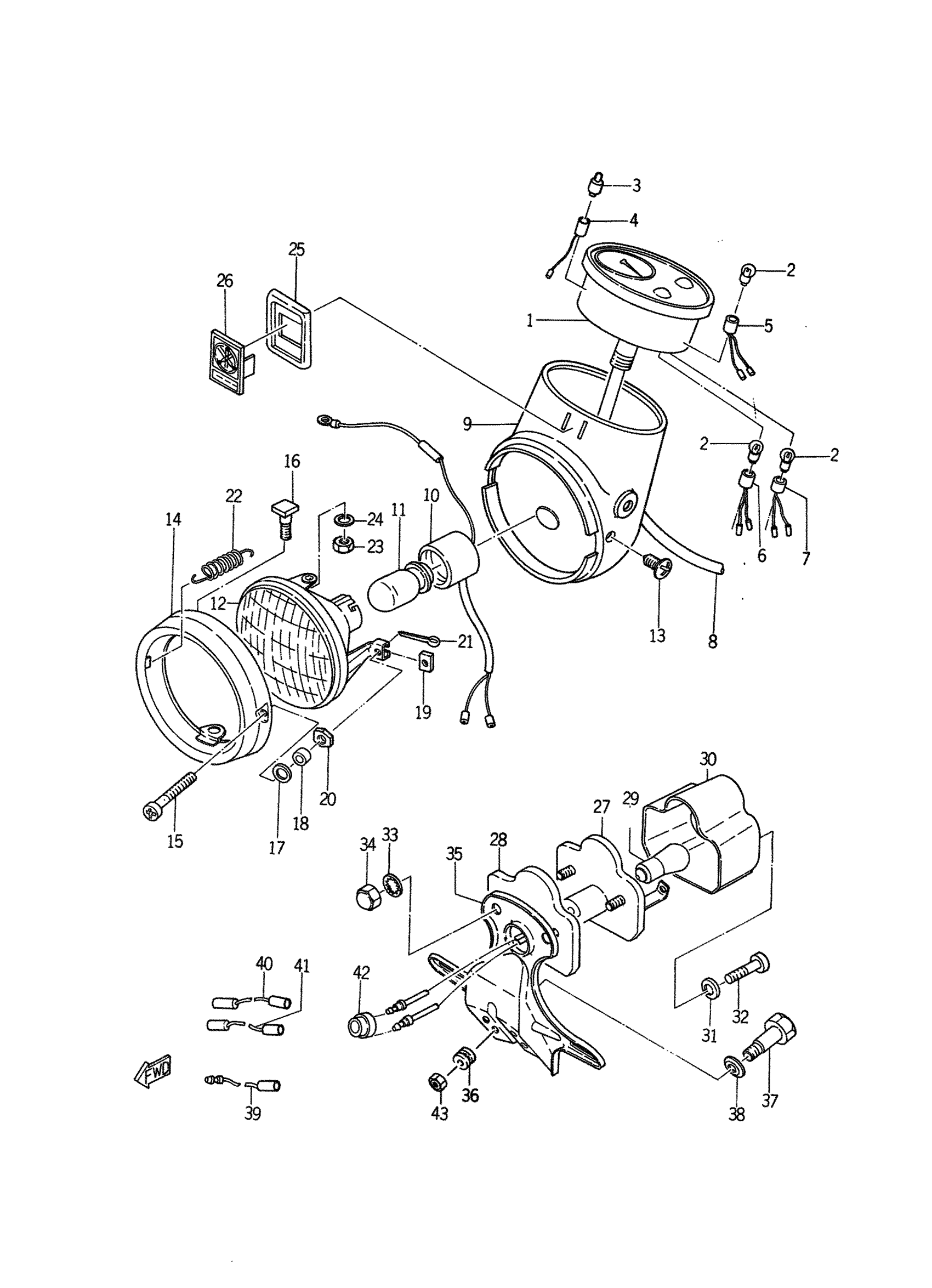

Yamaha YL1 (YL1_1E) 1966 HEAD LAMP - TAIL LAMP Diagram
#
1
SPEEDOMETER ASSEMBLY
132-83510-41-00
Unavailable
3
BULB
256-84347-00-00
Unavailable
4
. SOCKET, METER
122-83536-10-00
Unavailable
5
SOCKET, NEUTRAL
122-83537-10-00
Unavailable
6
SOCKET, CHARGE
132-83539-20-00
Unavailable
7
SOCKET, FLASHER
122-83538-10-00
Unavailable
8
SPEEDOMETER CABLE
166-83550-01-00
Unavailable
9
BODY ASSEMBLY
132-84330-60-35
Unavailable
10
SOCKET
122-84112-60-00
Unavailable
12
LENS ASSEMBLY
132-84320-60-00
Unavailable
13
SCREW, RIM FITTING
150-84125-00-00
Unavailable
14
RIM, HEADLIGHT
132-84315-60-00
Unavailable
15
SCREW, RIM ADJUSTING
132-84331-60-00
Unavailable
16
COLLAR, BODY FTNG
132-84338-60-00
Unavailable
17
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
18
. SPACER
132-84328-60-00
Unavailable
19
NUT, ADJUSTING
132-84334-61-00
Unavailable
20
NUT
132-84326-60-00
Unavailable
21
. PIN, COTTER
91401-10015-00
Unavailable
22
SPRING
132-84335-60-00
Unavailable
23
NUT
132-84326-60-00
Unavailable
24
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
25
SEAT, EMBLEM
122-84142-00-00
Unavailable
26
EMBLEM, HEADLIGHT
122-84141-01-00
Unavailable
27
BASE, TAILLIGHT
197-84711-60-00
Unavailable
28
. SEAT, BASE
124-84512-60-00
Unavailable
29
BULB(12V32/3CP)1157
137-84714-61-XX
Unavailable
30
. LENS, TAILLIGHT
124-84521-60-00
Unavailable
31
. WASHER
124-84522-60-00
Unavailable
32
SCREW,PAN HEAD
92503-04015-00
Unavailable
33
WASHER, TOOTH
92990-06300-00
Unavailable
34
NUT (J17)
95380-06800-00
Unavailable
35
BRACKET, LICENSE
132-84751-61-35
Unavailable
36
DAMPER
132-84753-60-00
Unavailable
37
BOLT 168217380000
90109-06017-00
Unavailable
38
WASHER, SPECIAL
132-84754-60-00
Unavailable
39
WIRE, EARTH LEAD
132-84756-60-00
Unavailable
40
WIRE, LEAD 1
122-84148-00-00
Unavailable
41
WIRE, LEAD 1
122-84148-00-00
Unavailable
42
GROMMET 152845180000
90480-12013-00
Unavailable
43
NUT, HEXAGON
95380-06600-00
Unavailable
