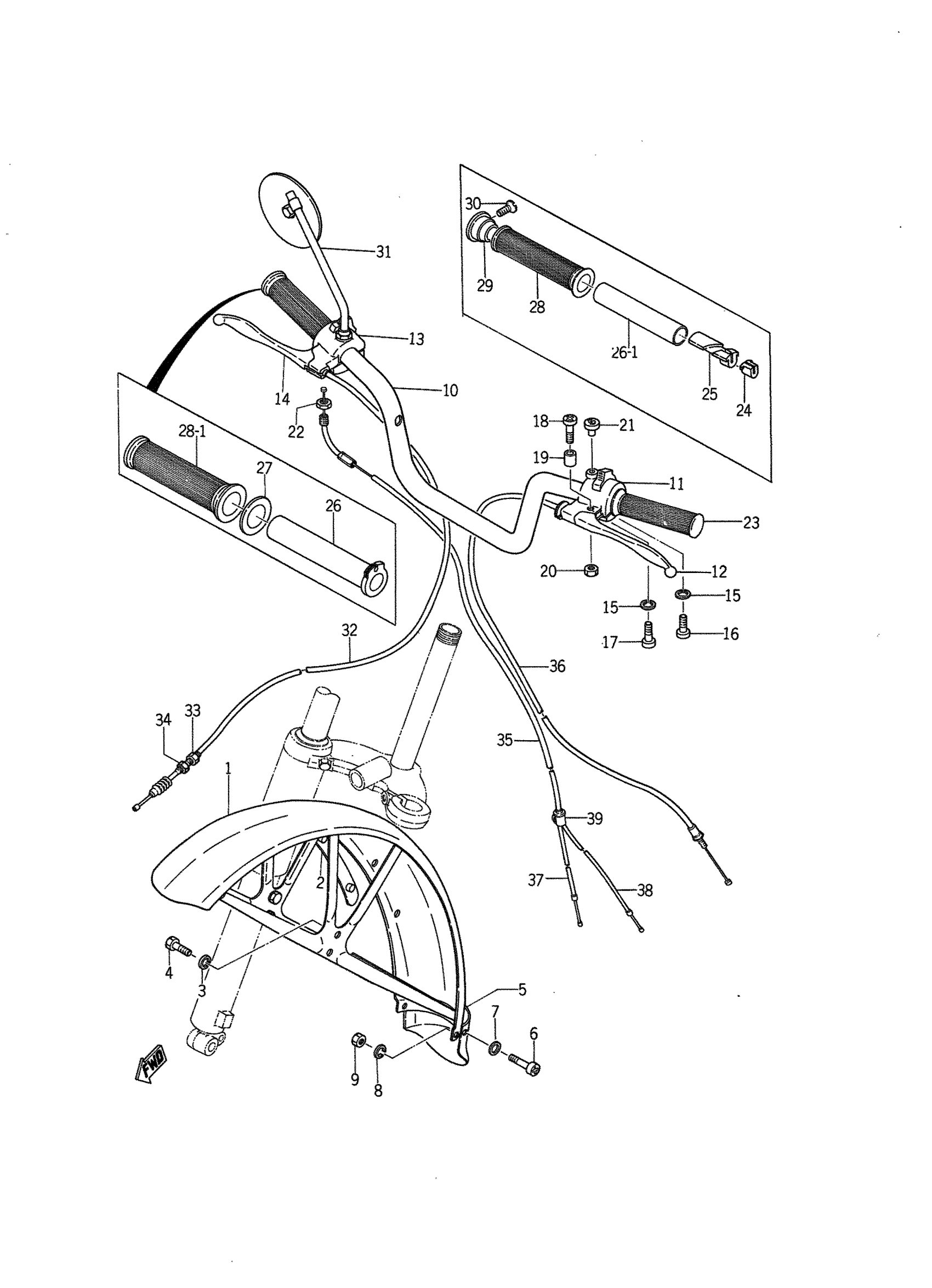

Yamaha YL1 (YL1_1E) 1966 HANDLE & FRONT FENDER Diagram

#

Description
Price

1

FENDER,FRONT

209-21510-00-35

Unavailable

1

FENDER, FRONT

129-21510-00-93

Unavailable

2

PAD, CABLE

122-21517-00-00

Unavailable

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

BOLT(62E)

97013-08012-00

Unavailable

5

FLAP, FRONT FENDER

129-21521-00-33

Unavailable

6

SCREW PAN HEAD

98580-06010-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

NUT(650)

95380-06700-00

$8.49

10

HANDLEBAR

132-26111-00-00

Unavailable

10

HANDLEBAR

132-26111-10-00

Unavailable

11

LEVER HOLDER ASSEMBLY 1

353-82910-01-00

Unavailable

12

LEVER (L.H)

137-83912-02-38

Unavailable

13

LEVER HOLDER ASY

164-82620-11-94

Unavailable

13

LEVER HOLDER ASSEMBLY 2

167-82820-11-94

Unavailable

14

LEVER (R.H)

2N3-83922-00-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

16

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

17

SCREW, PAN HEAD

92503-05025-00

Unavailable

18

SCREW, PAN HEAD

92503-05025-00

Unavailable

19

. COLLAR, LEVER 1

137-83913-01-00

Unavailable

20

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

21

PLUG (17J)

90338-07124-00

Unavailable

22

NUT, HEXAGON

90170-10038-00

Unavailable

23

GRIP LH

341-26241-00-00

Unavailable

24

STOPPER,CABLE

135-26245-00-00

Unavailable

25

SLIDER 1

137-26244-00-00

Unavailable

26

TUBE, THRTL GUIDE

148-26243-00-00

Unavailable

26

TUBE, GUIDE

1V1-26243-00-00

Unavailable

27

RING, LEAF

150-26249-00-00

Unavailable

28

GRIP RH

136-26242-00-00

Unavailable

29

END,GRIP

137-26246-01-00

Unavailable

30

SCREW,FLAT HEAD

92701-05008-00

Unavailable

31

MIRROR

116-26290-02-00

Unavailable

32

CABLE, BRAKE

109-26341-10-00

Unavailable

32

UNAVAILABLE IN PRICE BOOK

209-26341-10-00

Unavailable

33

BOLT (109-26345-00)

90123-06011-00

Unavailable

34

NUT (109-26344-00)

90179-06143-00

Unavailable

35

CABLE, THROTTLE 1

132-26311-10-00

Unavailable

35

CABLE, THROTTLE 1

176-26311-00-00

Unavailable

36

CABLE, CLUTCH

132-26335-10-00

Unavailable

37

CABLE, PUMP

132-26321-00-00

Unavailable

38

CABLE, THROTTLE 2

132-26312-00-00

Unavailable

39

CYLINDER, WIRE

156-26261-01-00

Unavailable

40

END, WIRE

164-26363-00-00

Unavailable
