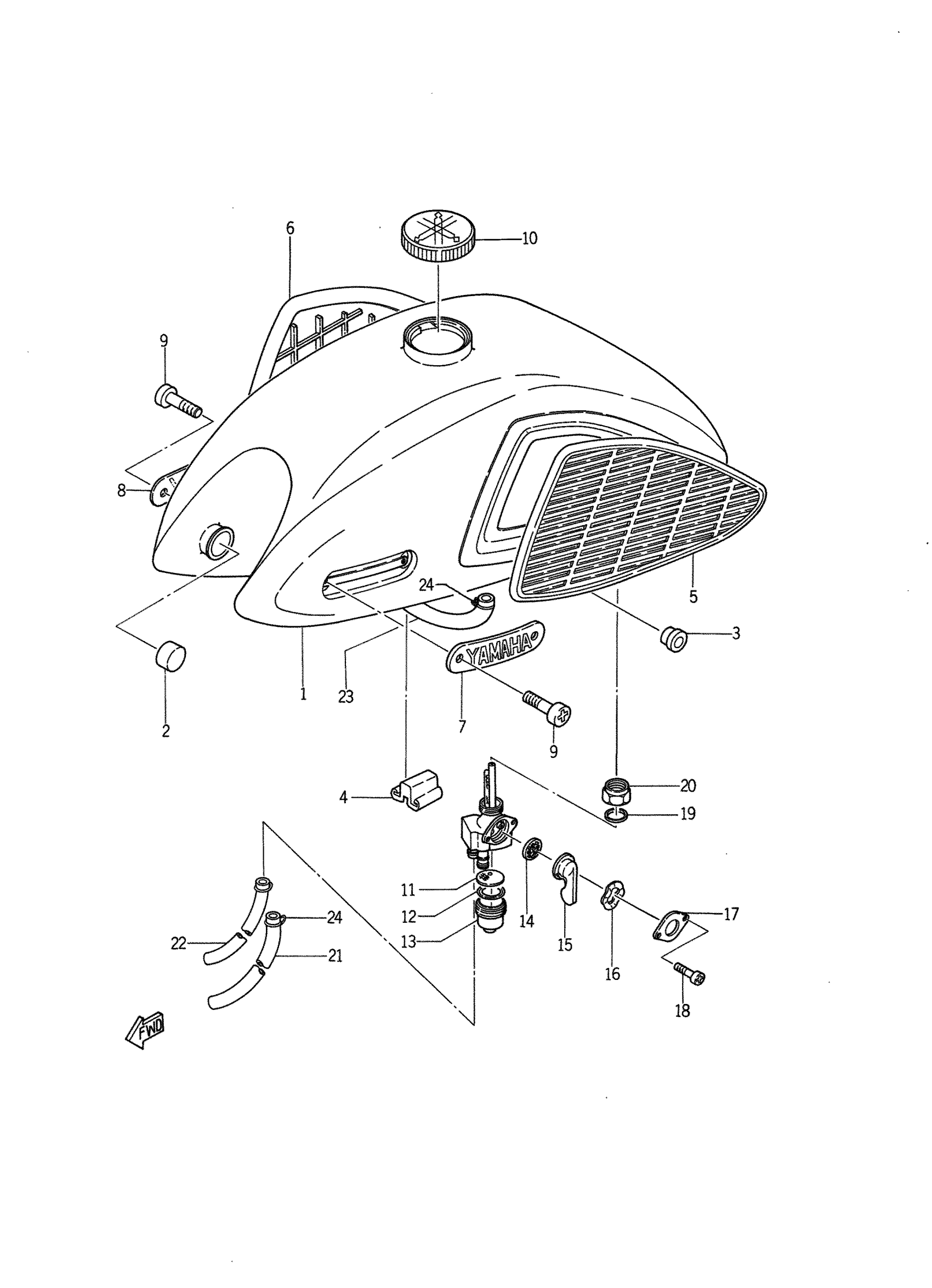

Yamaha YL1 (YL1_1E) 1966 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

132-24110-01-81

Unavailable

1

FUEL COCK ASSEMBLY 1

132-24500-02-00

Unavailable

2

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

3

DAMPER, LOCATING 2

122-24182-01-00

Unavailable

4

DAMPER, LOCATING 3

129-24183-00-00

Unavailable

5

GRIP, KNEE 1

132-24171-00-00

Unavailable

6

GRIP, KNEE 2

132-24172-00-00

Unavailable

7

EMBLEM 1

132-24161-00-00

Unavailable

8

EMBLEM 1

132-24161-00-00

Unavailable

9

SCREW, PAN HEAD

92503-04008-00

Unavailable

10

CAP ASSY

122-24610-01-00

$22.99

11

. NET, FILTER 2

304-24515-00-00

Unavailable

12

GASKET, FILTER

498-24522-00-00

$39.99

13

. CUP, FILTER

1A0-24521-01-00

Unavailable

14

. VALVE

132-24523-00-00

Unavailable

14

VALVE

137-24523-00-00

Unavailable

15

LEVER, COCK

132-24524-00-00

Unavailable

15

. LEVER, COCK

168-24524-00-00

Unavailable

16

WASHER, WAVE

132-24518-00-00

Unavailable

17

PLATE, LEVER FITTING

132-24525-01-00

Unavailable

18

. SCREW

92503-03006-00

Unavailable

19

GASKET, FUEL COCK

434-24532-00-00

Unavailable

20

. NUT

132-24531-00-00

Unavailable

21

HOSE (L135)

90445-09091-00

Unavailable

22

HOSE (L420)

90445-092K1-00

Unavailable

23

HOSE (L420)

90445-092K1-00

Unavailable

24

CLIP 101235600

90467-08003-00

Unavailable
