Description

Price

1

HUB,FRONT

102-25111-01-38

Unavailable

2

PLATE, BRAKE SHOE

122-25121-02-38

Unavailable

3

RIM 1.40X17

94414-17003-00

Unavailable

4

250X17 FRNTRIB

94125-17313-00

Unavailable

5

TUBE

94225-17082-00

Unavailable

6

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

$9.49

7

HUB,FRONT

102-25111-01-38

Unavailable

8

BEARING(3DL)

93306-20226-00

$38.99

9

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

10

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

11

SPRING, TENSION

90506-26051-00

Unavailable

12

OIL SEAL, OS-TYPE

93107-42001-00

Unavailable

13

RING, STOP

102-25137-00-00

$7.99

14

BEARING(3DL)

93306-20226-00

$38.99

15

PLATE, BRAKE SHOE

122-25121-02-38

Unavailable

16

CAM SHAFT

122-25351-02-00

Unavailable

17

LEVER, CAMSHAFT 1

109-25155-00-00

Unavailable

18

BOLT(JF7)

97080-06030-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

NUT, HEXAGON

95380-06600-00

Unavailable

22

NIPPLE, GREASE

93700-06M03-00

Unavailable

23

PLATE, BRAKE SHOE

122-25121-02-38

Unavailable

24

BUSHING

109-25136-00-00

Unavailable

25

OIL SEAL(1RY)

93104-06108-00

Unavailable

26

O-RING (26H)

93210-14579-00

Unavailable

27

RING, STOP

102-25137-00-00

$7.99

28

COLLAR

90387-10079-00

Unavailable

29

AXLE, WHEEL

99999-02188-00

Unavailable

30

NUT, SPEC''L SHAPE

90179-10123-00

Unavailable

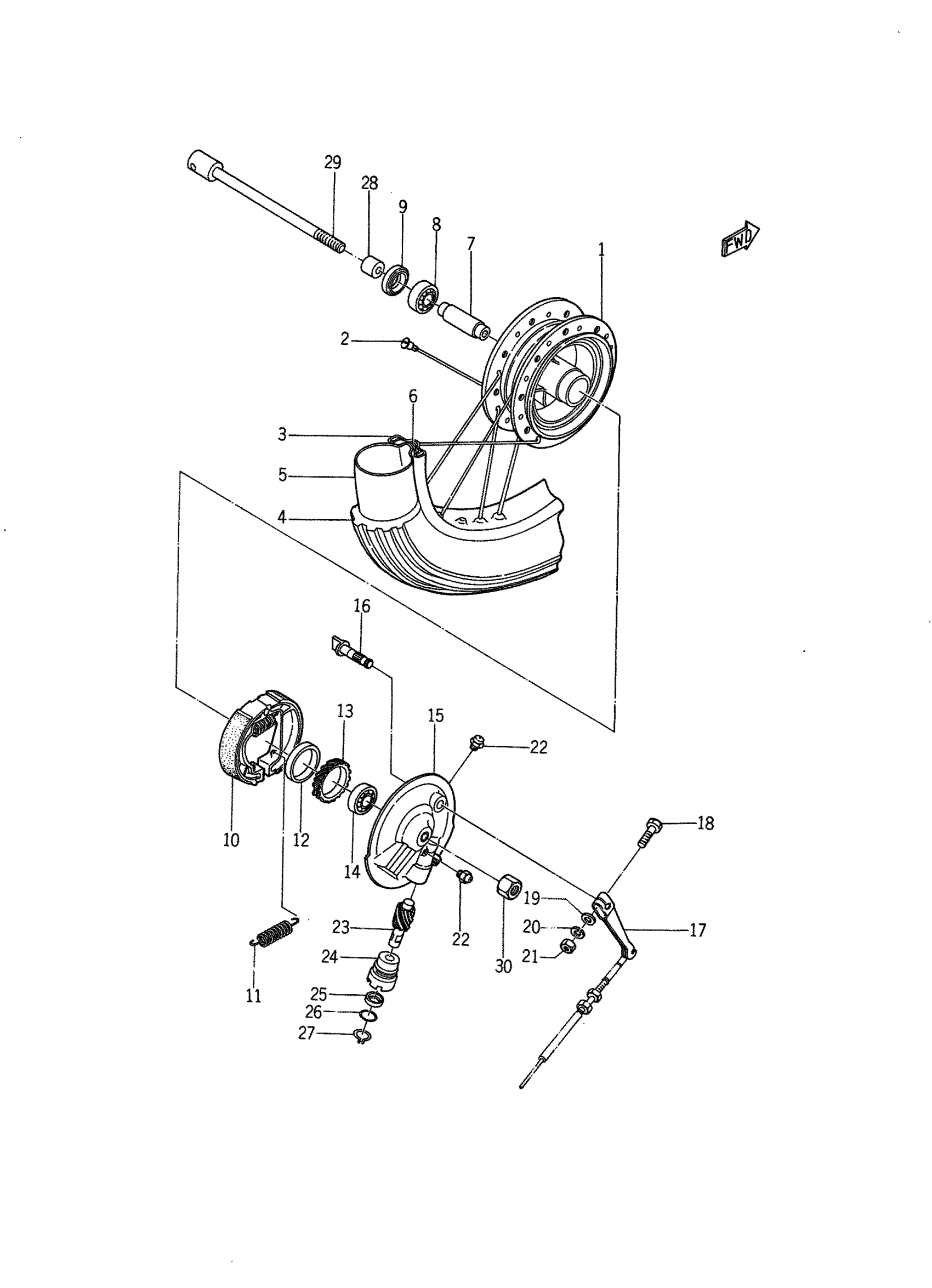

Yamaha YL1 (YL1_1E) 1966 FRONT WHEEL Diagram

HUB,FRONT

PLATE, BRAKE SHOE

RIM 1.40X17

250X17 FRNTRIB

TUBE

BAND, RIM (3.25-17) (3Y0)

HUB,FRONT

BEARING(3DL)

OIL SEAL (20X35X7-136)

BRAKE SHOE KIT

SPRING, TENSION

OIL SEAL, OS-TYPE

RING, STOP

BEARING(3DL)

PLATE, BRAKE SHOE

CAM SHAFT

LEVER, CAMSHAFT 1

BOLT(JF7)

YBS66-6 WASHER, PLAIN

WASHER, SPRING

NUT, HEXAGON

NIPPLE, GREASE

PLATE, BRAKE SHOE

BUSHING

OIL SEAL(1RY)

O-RING (26H)

RING, STOP

COLLAR

AXLE, WHEEL

NUT, SPEC''L SHAPE
