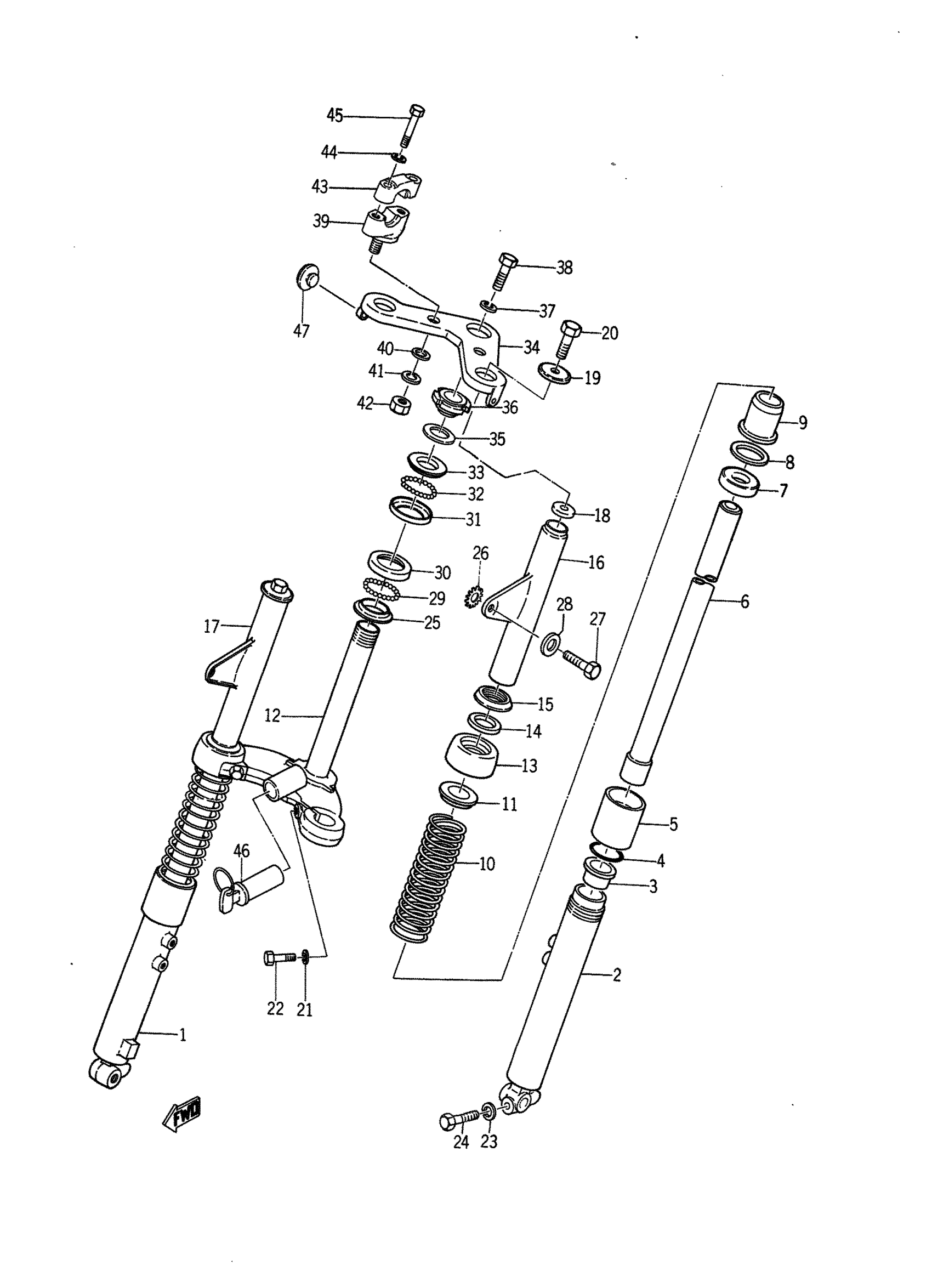

Yamaha YL1 (YL1_1E) 1966 FRONT FORK Diagram

#

Description
Price

1

TUBE, OUTER 2

124-23136-00-81

Unavailable

2

TUBE,OUTER 1

196-23126-40-81

Unavailable

3

METAL,SLIDE 1

357-23125-90-00

Unavailable

4

. O-RING

122-23147-00-00

Unavailable

5

OUTER NUT

128-23150-00-00

Unavailable

6

TUBE,INNER 1

196-23124-40-00

Unavailable

7

OIL SEAL (5R6)

93110-27010-00

Unavailable

8

WASHER,OIL SEAL

124-23146-00-00

Unavailable

9

SEAT, SPRING LOWER

122-23143-00-00

Unavailable

10

SPRING, FRONT FORK

132-23141-00-00

Unavailable

11

SEAT, SPRING UPPER

124-23142-00-00

Unavailable

12

UNDER BRACKET

122-23340-00-33

Unavailable

13

COVER, OUTER 1

124-23122-00-00

Unavailable

14

PACKING(LAMP STAY)

164-23163-00-00

$6.99

15

GUIDE, COVER LOWER

122-23116-00-00

Unavailable

16

COVER, UPPER 1

122-23121-00-81

Unavailable

17

COVER, UPPER 2

122-23131-00-81

Unavailable

18

GASKET

307-23114-00-00

Unavailable

19

WASHER, CAP

207-23112-00-00

Unavailable

20

BOLT, CAP

205-23111-40-00

Unavailable

21

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

22

BOLT 1

122-23346-02-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

24

BOLT (682)

97013-08025-00

Unavailable

25

RACE, BALL 2

B6E-23412-00-00

Unavailable

26

WASHER (688)

92990-08400-00

Unavailable

27

BOLT(JA9)

90101-08691-00

Unavailable

28

WASHER, PLAIN

92990-08200-00

Unavailable

29

BALL

93501-04011-00

Unavailable

30

RACE, BALL 1

B6E-23411-00-00

Unavailable

31

RACE, BALL 1

BP2-23411-00-00

Unavailable

32

BALL

93503-16003-00

Unavailable

33

RACE, BALL 2

BP2-23412-00-00

Unavailable

34

CROWN, HANDLE

122-23435-01-33

Unavailable

35

COVER, BALL RACE

122-23416-00-00

Unavailable

36

NUT (122-23453-00)

90179-25051-00

Unavailable

37

WASHER (1YJ)

90209-10160-00

Unavailable

38

BOLT 1222345100

90105-10006-00

Unavailable

39

HOLDER, HANDLE UNDER

462-23442-00-98

Unavailable

40

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

41

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

42

NUT, SELF LOCKING

90185-10031-00

Unavailable

43

HOLDER, HANDLE UPPER

462-23441-01-00

Unavailable

44

WASHER, SPRING

92995-06100-00

Unavailable

45

BOLT (682)

97095-06040-00

Unavailable

46

STEERING LOCK ASY

122-23480-01-00

Unavailable

47

PLUG,SPEC'L SHAPE

90338-09060-00

Unavailable
