- YL1 (YL1_1E) 1966
ELECTRICAL

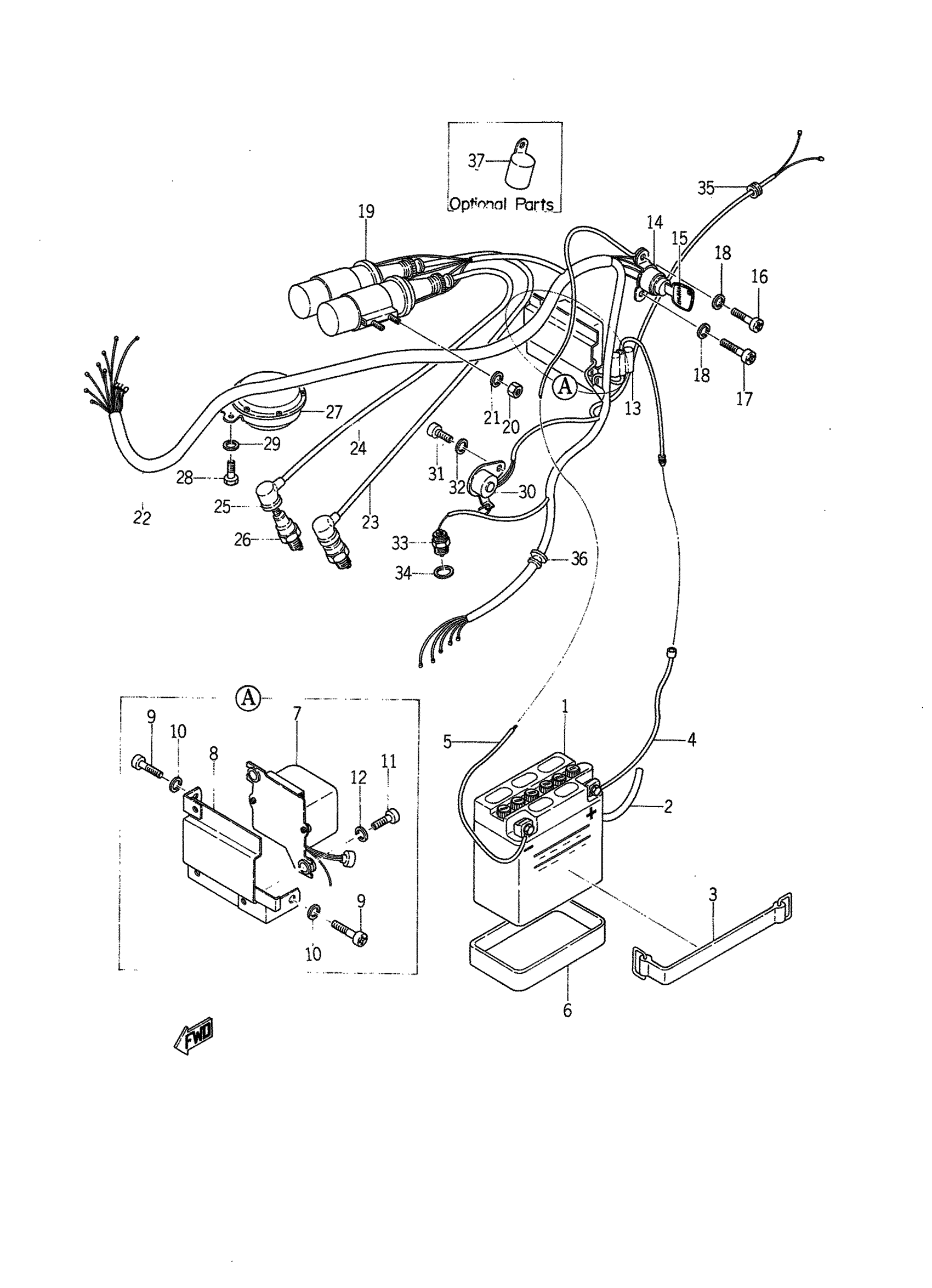

Yamaha YL1 (YL1_1E) 1966 ELECTRICAL Diagram
#
1
12N5.5-3B GS BATTERY
12N-553BA-00-00
Unavailable
1
12N73BY YUASA BATTERY
12N-73BY0-00-00
Unavailable
2
PIPE,BREATHER
2RH-21826-00-00
Unavailable
4
WIRE, PLUS LEAD
123-82115-00-00
Unavailable
4
WIRE, PLUS LEAD
131-82115-00-00
Unavailable
5
WIRE, MINUS LEAD
123-82116-00-00
Unavailable
5
WIRE, MINUS LEAD
131-82116-00-00
Unavailable
6
SEAT, BATTERY
102-82122-00-00
Unavailable
6
SEAT, BATTERY
123-82122-00-00
Unavailable
7
VOLTAGE REG ASSEMBLY
132-81910-11-00
Unavailable
7
VOLTAGE REG ASSEMBLY
176-81910-11-00
Unavailable
8
PLATE, REG FITTING
132-81915-00-00
Unavailable
9
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
13
FUSE HOLDER ASSY
2UJ-82150-02-00
Unavailable
14
MAIN SWITCH ASSEMBLY
131-82508-10-00
Unavailable
15
NOT AVAILABLE
KEY
Unavailable
16
SCREW PAN HEAD
98580-06010-00
Unavailable
17
SCREW, PAN
98507-06014-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
20
NUT, HEXAGON
95380-06600-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
WIRE HARNESS ASSEMBLY
133-82590-11-00
Unavailable
23
CORD, HIGHT TENSION 1
137-82341-01-00
Unavailable
24
CORD, HIGHT TENSION 1
137-82341-01-00
Unavailable
25
PLUG CAP ASSY
56J-82370-00-00
Unavailable
26
B7HS NGK 4PK
B7H-S0000-00-00
Unavailable
27
HORN
131-83371-23-00
Unavailable
28
BOLT, HEXAGON
97013-08016-00
Unavailable
29
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
30
STOPSWITCHASSY
122-82530-02-00
Unavailable
31
SCREW,PAN HEAD
92503-05012-00
Unavailable
32
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
33
NEUTRAL SWITCH ASSY
136-82540-03-00
Unavailable
34
WASHER, PLATE
90201-12790-00
Unavailable
35
GROMMET
122-82596-00-00
Unavailable
36
GROMMET
132-82597-00-00
Unavailable
37
FLASHER RELAY ASY
136-83350-20-00
Unavailable
38
FUSE
1A0-82161-00-00
Unavailable
