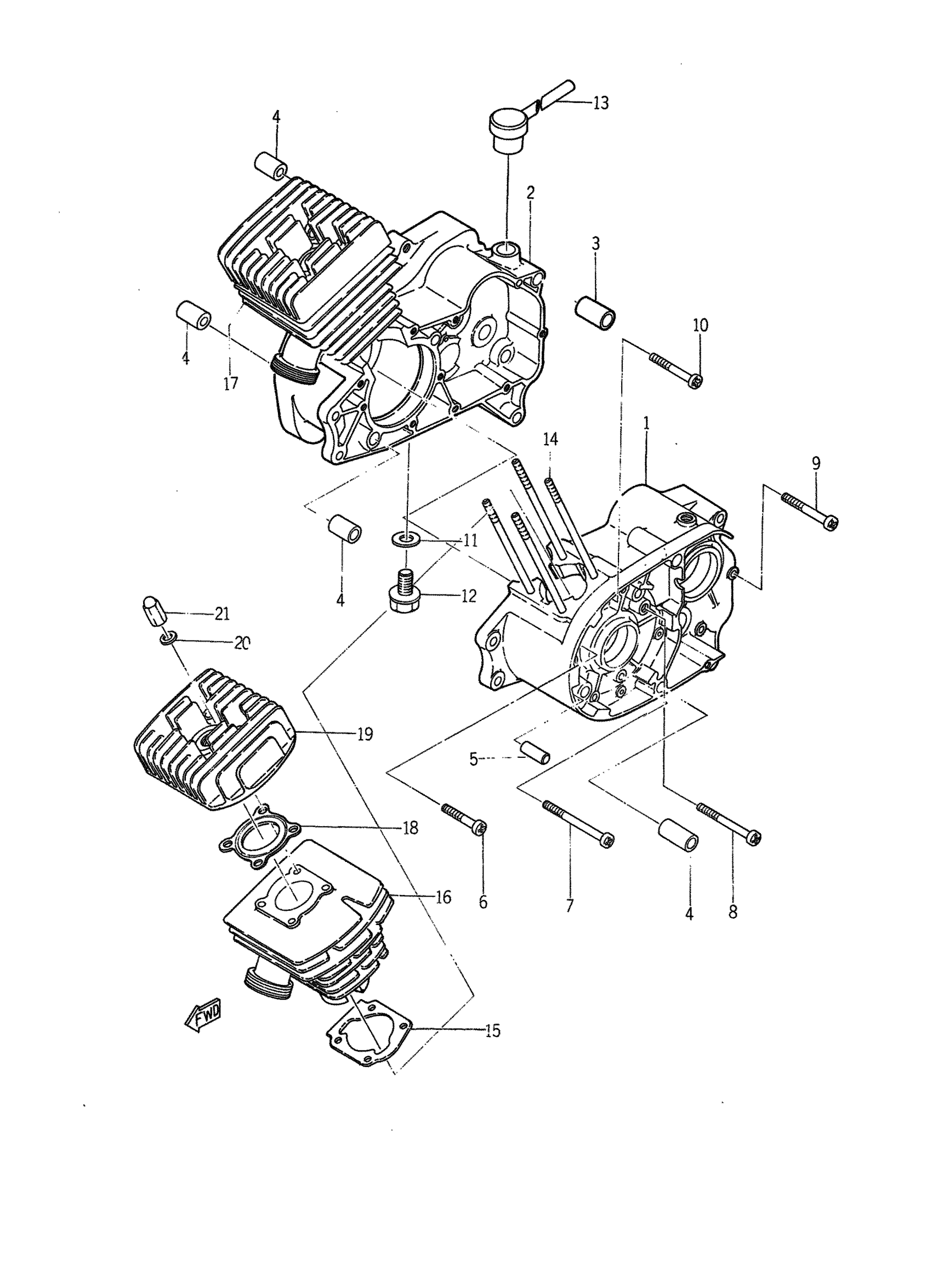

Yamaha YL1 (YL1_1E) 1966 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

132-15111-03-00

Unavailable

2

CRANKCASE 2

132-15121-01-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

PIN, DOWEL

93603-14026-00

$8.49

6

SCREW PAN HEAD

98580-06545-00

$5.60

7

SCREW, PAN HEAD

98580-06580-00

Unavailable

8

SCREW PAN HEAD

98580-06570-00

$18.99

9

SCREW, BIND (JH1)

98580-06560-00

Unavailable

10

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

11

GASKET (3JD1)

90430-12207-00

$7.99

12

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

13

BREATHER

206-15371-00-00

Unavailable

14

BOLT STUD 1091136100

90116-06026-00

$4.29

15

GASKET,CYLINDER

195-11351-10-00

Unavailable

16

CYLINDER 1

134-11311-01-00

Unavailable

17

CYLINDER 2

134-11321-01-00

Unavailable

18

GASKET, CYLINDER HEAD 1

134-11181-01-00

Unavailable

19

HEAD, CYLINDER 1

134-11111-01-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

NUT CAP 126111716000

90176-06002-00

Unavailable
