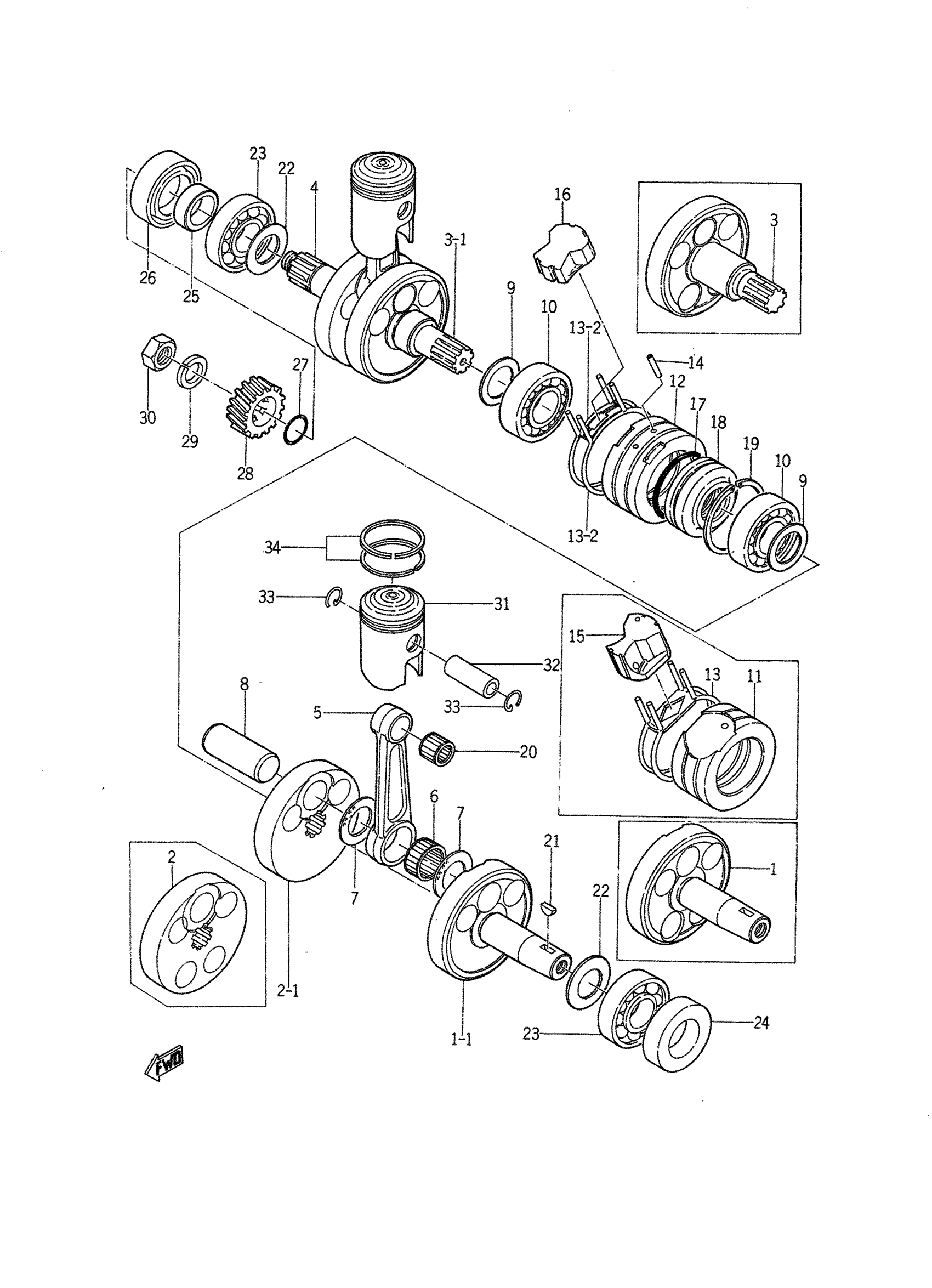

Yamaha YL1 (YL1_1E) 1966 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

132-11400-03-00

Unavailable

1

CRANK 1

132-11412-02-00

Unavailable

2

CRANK 2

132-11422-04-00

Unavailable

3

CRANK 3

132-11432-02-00

Unavailable

4

CRANK 4

132-11442-02-00

Unavailable

5

ROD, CONNECTING

3R1-11651-01-00

$125.99

6

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

7

WASHER 132116850000

90209-18112-00

$10.49

8

. PIN, CRANK 1

3R1-11681-00-00

Unavailable

9

. SHIM, CRANK 1

132-11561-00-03

Unavailable

10

BEARING(1FF)

93306-00519-00

$36.99

10

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

11

COVER, CRANK

132-11511-02-00

Unavailable

12

COVER, CRANK

132-11511-02-00

Unavailable

13

SEAL, CRANK COVER

132-11512-01-00

Unavailable

14

PIN, DOWEL(4SS)

93604-18251-00

Unavailable

15

METAL, FILLER

132-11541-00-00

Unavailable

16

METAL, FILLER

132-11541-01-00

Unavailable

17

O-RING (132)

93210-41042-00

Unavailable

17

. O-RING

93210-48045-00

Unavailable

18

. SEAL, LABYRINTH 1

132-11515-01-00

Unavailable

19

CIRCLIP, INNER

93450-47011-00

Unavailable

19

. CIRCLIP

93450-52010-00

Unavailable

20

BEARING, CYLINDER.#10

93310-11296-00

Unavailable

21

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

22

SHIM, CRANK 1

136-11561-00-04

Unavailable

23

BEARING(1GJ)

93306-20458-00

Unavailable

23

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

24

OIL SEAL(4BA)

93102-20447-00

Unavailable

25

COLLAR (132-16136-01)

90387-20345-00

Unavailable

26

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

27

O-RING(3KX)

93210-180A6-00

Unavailable

28

GEAR, PRI DRIVE

122-16111-00-00

Unavailable

29

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

30

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

31

PISTON STD

134-11631-01-96

Unavailable

31

PISTON 1 O/S 0.25

134-11635-01-00

Unavailable

31

PISTON 2 O/S 0.50

134-11636-01-00

Unavailable

32

PIN, PISTON

132-11633-00-00

Unavailable

33

CIRCLIP 132116340000

93450-13022-00

Unavailable

34

PISTON RINGSET STD

134-11610-00-00

Unavailable

34

PISTON RINGSET 1ST

134-11610-10-00

Unavailable

34

PISTON RINGSET 2ND

134-11610-20-00

Unavailable
