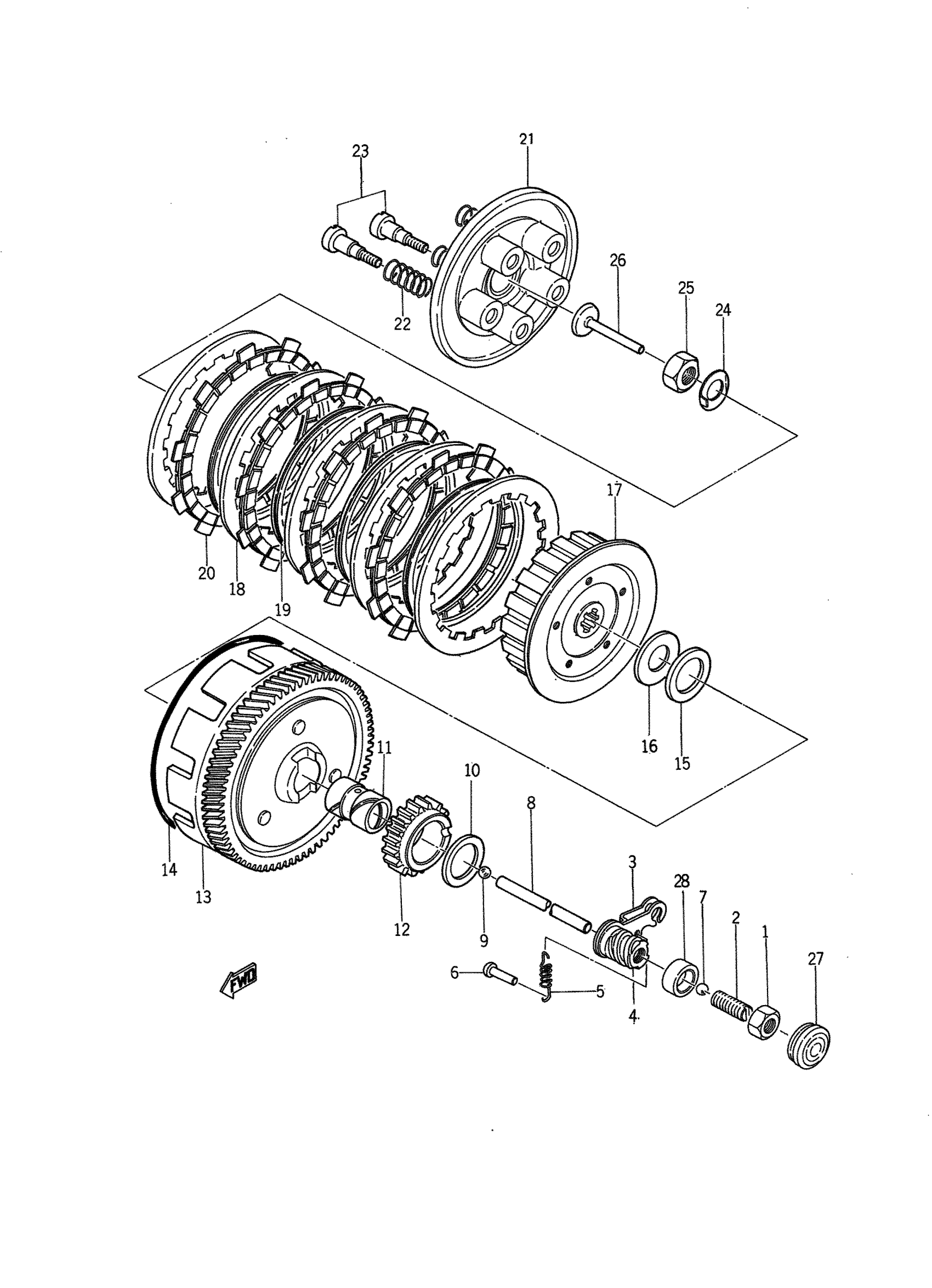

Yamaha YL1 (YL1_1E) 1966 CLUTCH Diagram
#
Description
Price
2
BOLT, SET
90113-10026-00
Unavailable
3
LEVER, PUSH
132-16342-00-00
Unavailable
4
SCREW, PUSH
137-16341-00-00
Unavailable
5
SPRING, TENSION
90506-10020-00
Unavailable
8
ROD, PUSH 2
132-16357-01-00
Unavailable
11
SPACER 1
132-16181-00-00
Unavailable
12
KICK CRANK ASSEMBLY
3AY-15620-00-00
Unavailable
13
PRI DRVN GEAR
132-16105-00-00
Unavailable
15
. BEARING, FLAT #41
93341-22302-00
Unavailable
16
PLATE, THRUST
131-16154-00-00
Unavailable
17
. BOSS, CLUTCH
132-16371-02-00
Unavailable
18
PLATE, CLUTCH 1
336-16324-10-00
Unavailable
19
RING, CUSHION
137-16367-00-00
Unavailable
20
PLATE, FRICTION
3HA-16321-00-00
Unavailable
21
PLATE, PRESSURE
132-16351-00-00
Unavailable
22
SPRING COMPRESSION132163330000
90501-20125-00
Unavailable
23
SCREW,SPEC'L SHAPE
90149-05147-00
Unavailable
24
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
25
NUT, HEXAGON 1371637700
90170-12060-00
Unavailable
26
ROD,PUSH (1)
137-16356-00-00
Unavailable
27
COVER, CAP
132-15417-00-00
Unavailable
28
OIL SEAL (15.3X22X7-136)
93108-15001-00
Unavailable
