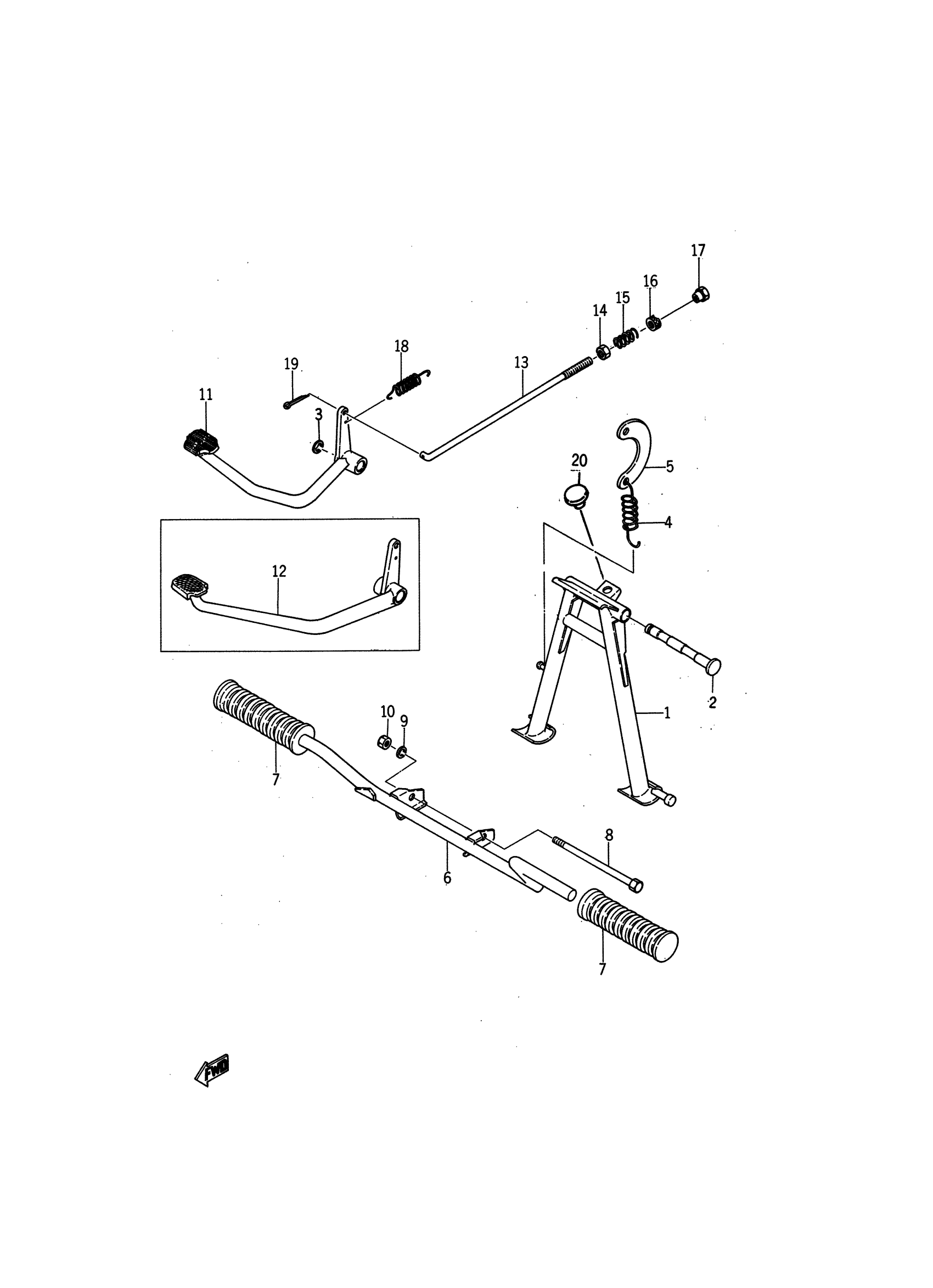

Yamaha YJ2S (CAMPUS 60) 1966 STAND - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

128-27111-01-00

Unavailable

2

SHAFT, MAIN STAND

122-27112-00-00

$9.46

3

CIRCLIP (122)

93430-12008-00

Unavailable

4

SPRING (122-27116-00)

90506-29054-00

$3.05

5

LINK, MAIN STAND

109-27115-00-00

Unavailable

6

FOOTREST 1

109-27411-00-00

Unavailable

7

COVER, FOOTREST

122-27413-00-00

$14.52

8

BOLT, FLANGE

95817-08125-00

$7.72

9

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

10

NUT(6L2)

95333-08600-00

$3.20

11

PEDAL, BRAKE

126-27211-00-91

Unavailable

13

ROD, BRAKE

180-27231-01-00

Unavailable

14

NUT, HEXAGON

95380-06600-00

$4.13

15

SPRING, (180-27236-00)

90501-10245-00

$6.17

16

SEAT, SPRING

148-27239-00-00

Unavailable

17

NUT (25K)

90179-06411-00

Unavailable

18

SPRING, TENSION

90506-26051-00

Unavailable

19

. PIN, COTTER

91490-12012-00

Unavailable

20

STOPPER, MAIN STAND

128-27114-00-00

Unavailable
