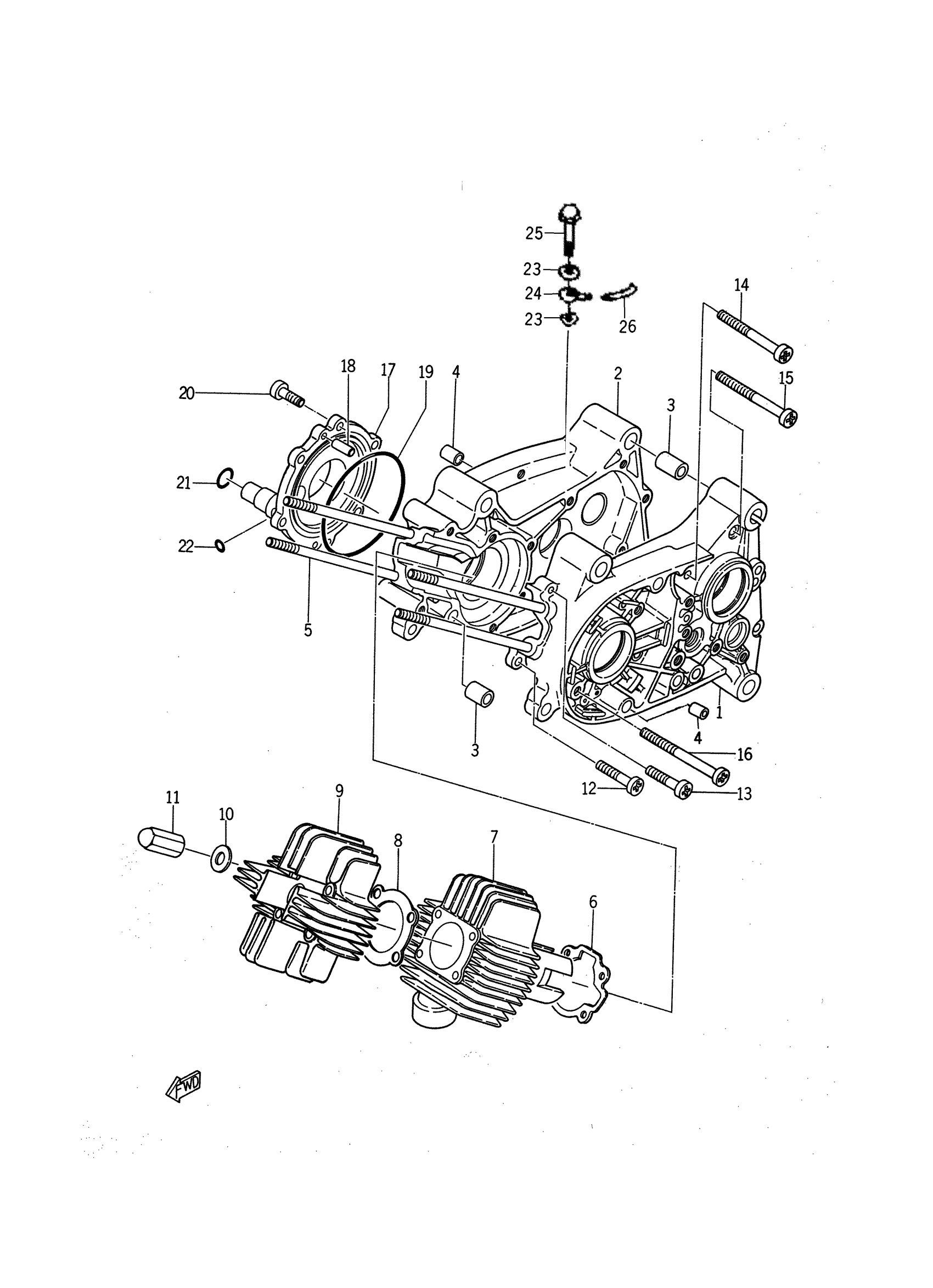

Yamaha YJ2S (CAMPUS 60) 1966 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

109-15111-01-00

Unavailable

2

CRANKCASE 2

110-15121-02-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

BOLT STUD 1091136100

90116-06026-00

$4.29

6

GASKET, CYLINDER

3LA-11351-10-00

$18.49

7

CYLINDER 1

115-11311-60-00

Unavailable

8

GASKET, CYLINDER HEAD 1

517-11181-01-00

$6.99

9

HEAD,CYLINDER 1

115-11111-61-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

NUT CAP 126111716000

90176-06002-00

$5.60

12

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

13

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

14

SCREW PAN HEAD

98580-06545-00

$5.60

15

SCREW PAN HEAD

98580-06550-00

$8.49

16

SCREW PAN HEAD

98580-06565-00

Unavailable

17

COVER, VALVE

126-13551-02-00

Unavailable

18

PIN,DOWEL (137)

93604-14012-00

Unavailable

19

RING,RUBBER

120-13554-00-00

Unavailable

20

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

21

O-RING (122)

93210-23029-00

Unavailable

22

O-RING (137)

93210-12014-00

Unavailable

23

GASKET

90430-10028-00

Unavailable

24

COLLAR, UNION

122-15372-00-00

Unavailable

25

BREATHER

122-15371-90-00

Unavailable

26

PIPE, BREATHER

122-15373-00-00

Unavailable
