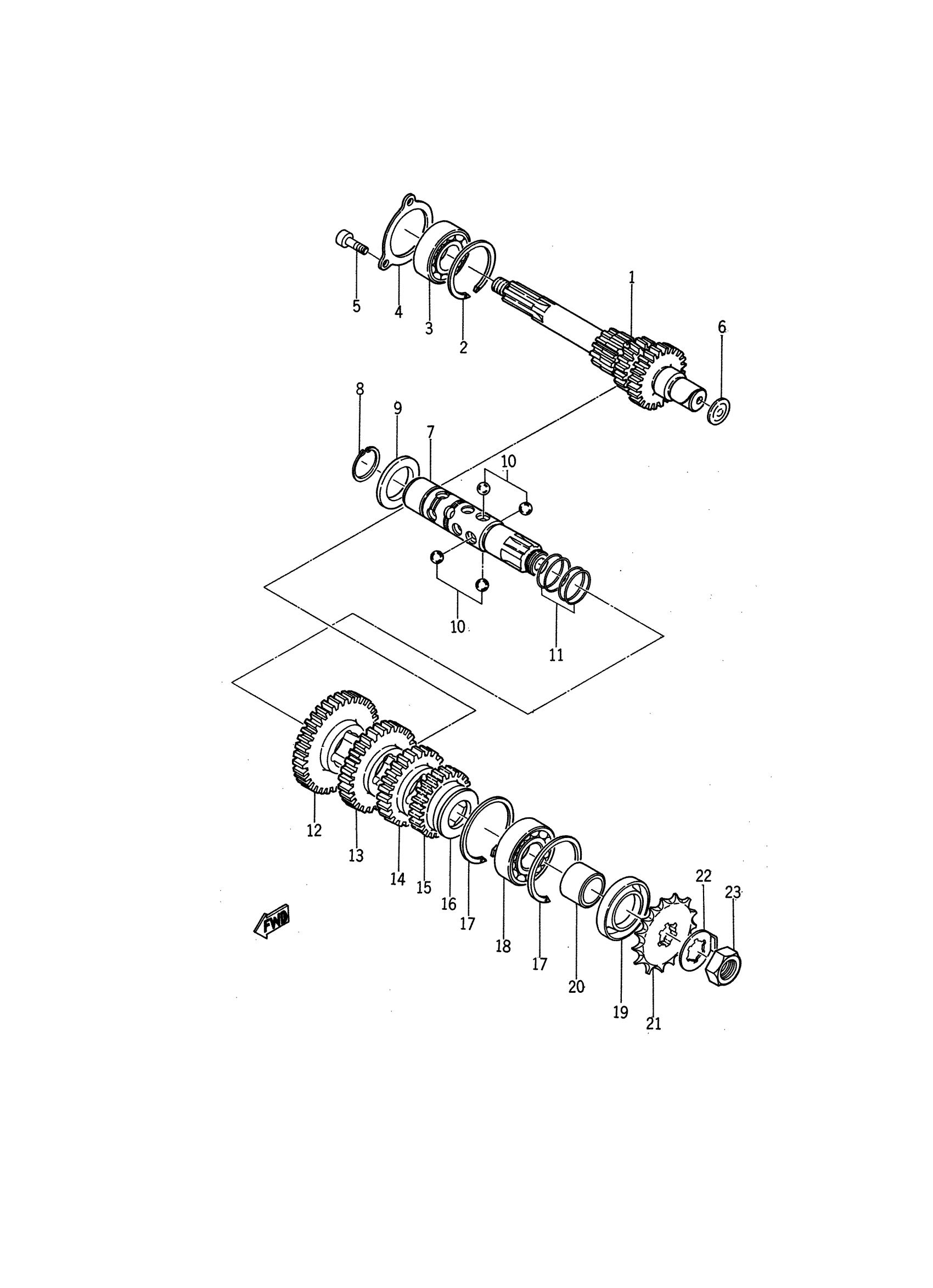

Yamaha YJ2 (RIVERSIDE 60) 1965 TRANSMISSION Diagram

#

Description

Price

1

MAIN AXLE

122-17410-00-00

Unavailable

2

CIR-CLIP (70R)

93420-40064-00

Unavailable

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

PLATE, BRNG COVER

102-15381-00-00

Unavailable

5

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

6

PLUG,EXPANSION

90330-20004-00

Unavailable

7

AXLE, DRIVE

122-17421-00-00

Unavailable

8

CIRCLIP(JF7)

99009-25400-00

$8.49

9

SHIM 1

102-17427-00-00

Unavailable

10

BALL

93509-32012-00

Unavailable

11

SPRING, BALL HOLD

122-17479-00-00

Unavailable

12

GEAR, 1ST WHEEL

122-17211-00-00

Unavailable

13

GEAR, 2ND WHEEL

122-17221-00-00

Unavailable

14

GEAR, 3RD WHEEL

122-17231-00-00

Unavailable

15

GEAR, 4TH WHEEL

122-17241-00-00

Unavailable

16

. SPACER

90560-20040-00

Unavailable

17

CIRCLIP, INNER

93450-47011-00

Unavailable

18

BEARING(1YW)

93306-20461-00

Unavailable

19

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

20

COLLAR

90387-20346-00

Unavailable

21

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

Unavailable

21

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

Unavailable

21

SPROCKET, DRIVE (166-17461-60)

93812-16092-00

Unavailable

22

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

23

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable
