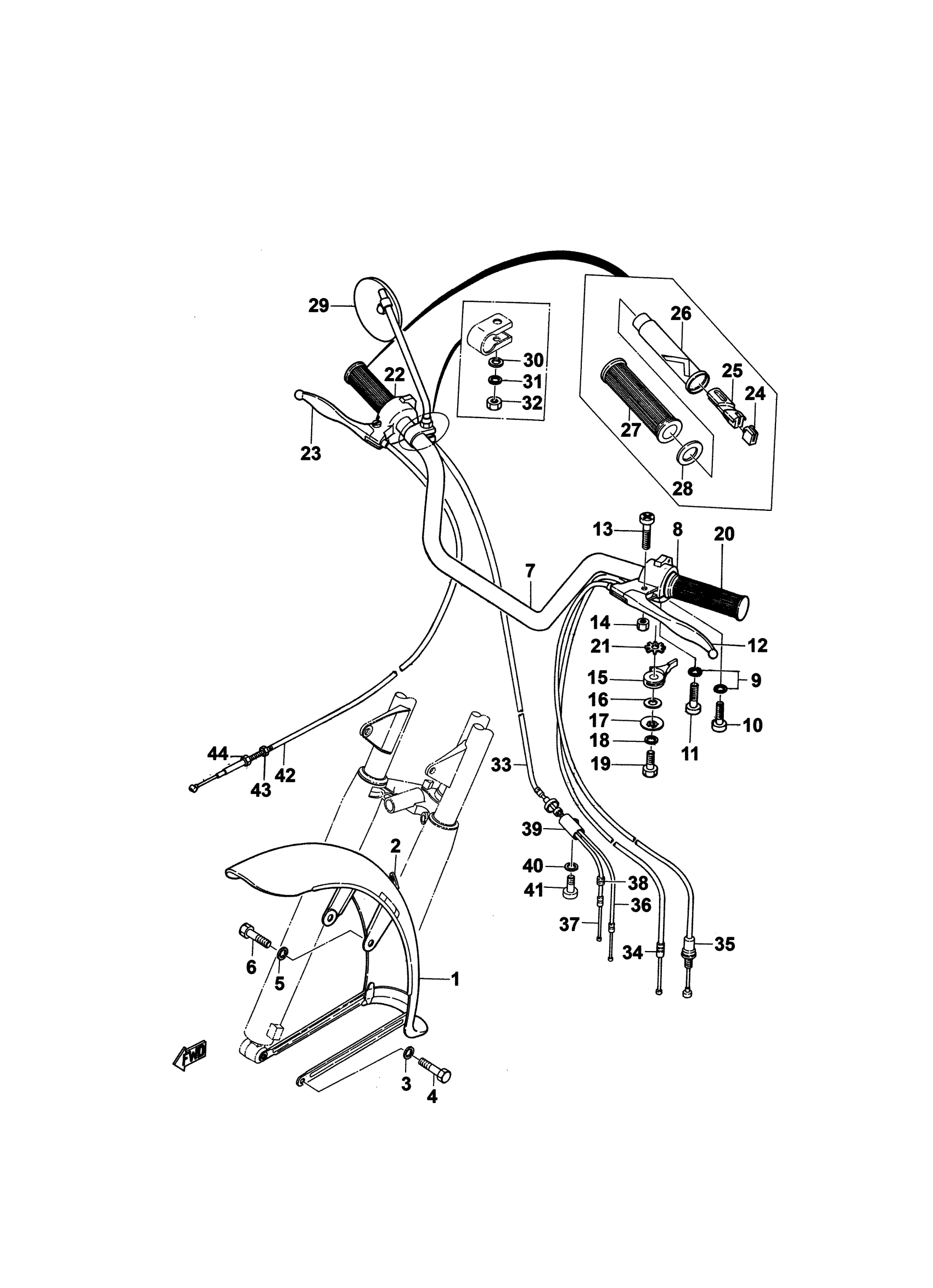

Yamaha YJ2 (RIVERSIDE 60) 1965 HANDLE - FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

109-21510-01-81

Unavailable

2

PAD, CABLE

122-21517-00-00

Unavailable

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SCREW, PAN HEAD

90102-06010-00

Unavailable

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

BOLT, HEXAGON

97013-08016-00

$1.01

7

HANDLEBAR

126-26111-01-00

Unavailable

8

LEVER HOLDER ASSEMBLY 1

124-82710-11-94

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

SCREW, PAN HEAD

92503-05030-00

Unavailable

11

SCREW, PAN HEAD

92501-05006-00

Unavailable

12

LEVER L

803-83912-00-38

Unavailable

13

SCREW, PAN HEAD

92501-05006-00

Unavailable

14

NUT

95380-05700-00

Unavailable

15

LEVER, STARTER

103-83941-00-00

Unavailable

16

PLATE, SPRING

102-83929-00-00

Unavailable

17

COVER, STARTER

122-83942-00-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

GRIP LH

102-26241-00-00

Unavailable

21

WASHER,SPEC'L SHAP

90209-12115-00

Unavailable

22

LEVER HOLDER ASSEMBLY 2

122-82720-11-94

Unavailable

23

. LEVER R

122-83922-01-00

Unavailable

24

STOPPER,CABLE

135-26245-00-00

Unavailable

25

SLIDER, THROTTLE

102-26244-00-00

Unavailable

26

TUBE,THRTL GUIDE

207-26243-00-00

Unavailable

27

GRIP RH

102-26242-00-00

Unavailable

28

RING, LEAF

150-26249-00-00

Unavailable

29

MIRROR

116-26290-02-00

Unavailable

30

WASHER, PLAIN

92990-08200-00

Unavailable

31

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

32

NUT(6L2)

95333-08600-00

Unavailable

33

CABLE, THROTTLE 1

126-26311-01-00

Unavailable

34

CABLE, STARTER 1

122-26331-00-00

Unavailable

35

CABLE, CLUTCH

122-26335-00-00

Unavailable

36

CABLE, THROTTLE 2

126-26312-00-00

Unavailable

37

CABLE, PUMP

126-26321-00-00

Unavailable

38

GROMMET, PUMP CABLE

126-26326-00-00

Unavailable

39

CONNECTOR, CABLE

137-26261-01-00

Unavailable

40

WASHER, SPRING

92995-06100-00

Unavailable

41

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

42

WIRE, BRAKE

132-26341-10-00

Unavailable

43

BOLT (109-26345-00)

90123-06011-00

Unavailable

44

NUT (109-26344-00)

90179-06143-00

Unavailable
