- YJ2 (RIVERSIDE 60) 1965
ELECTRICAL

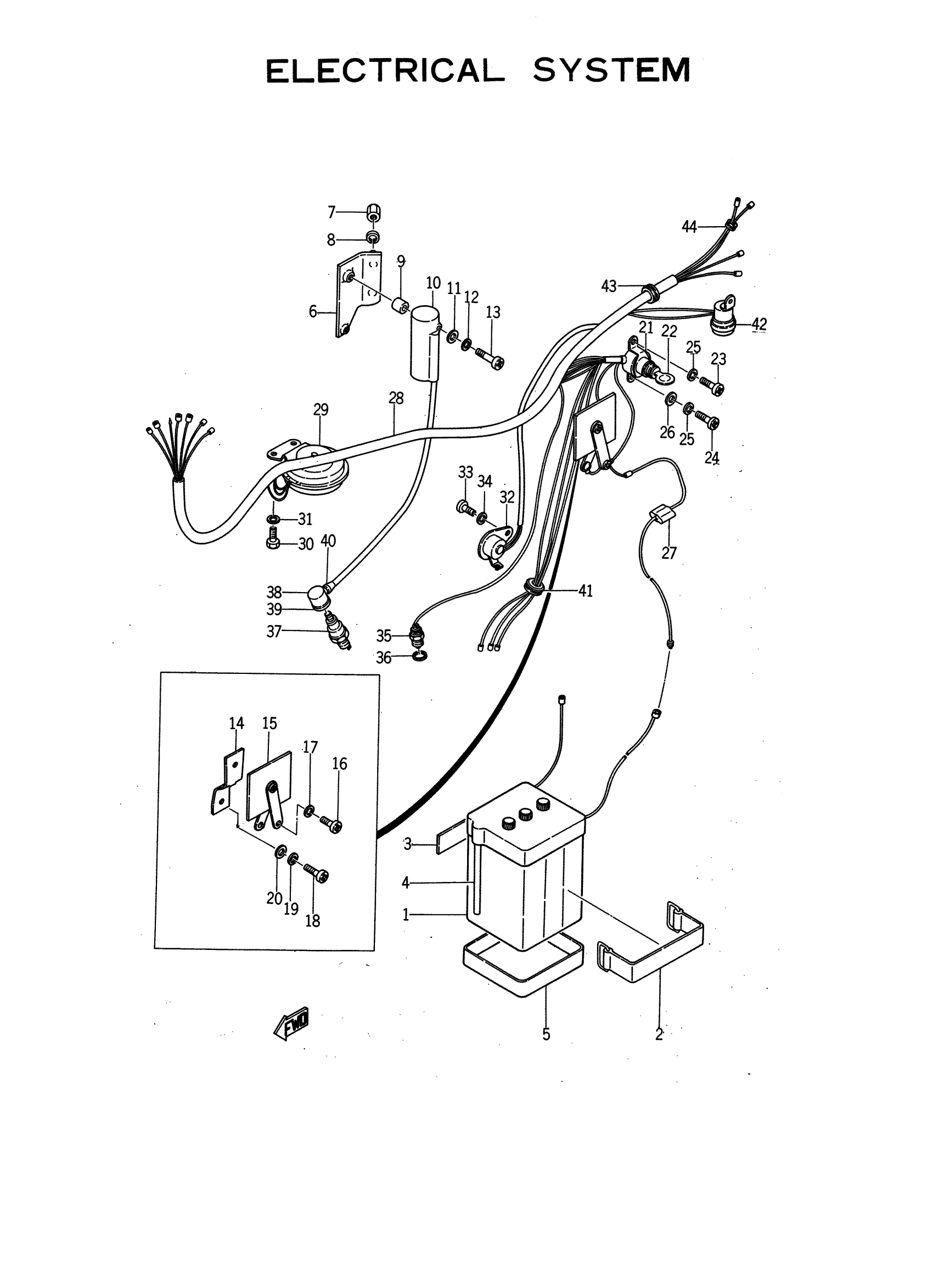

Yamaha YJ2 (RIVERSIDE 60) 1965 ELECTRICAL Diagram
#
1
6N4A4D YUASA BATTERY
6N4-A4DY0-00-00
Unavailable
2
BAND, BATTERY
26L-82131-00-00
$7.99
3
PAD, BATTERY
122-82121-00-00
Unavailable
4
PIPE, BREATHER
122-82112-00-00
Unavailable
5
SEAT, BATTERY
104-82122-00-00
Unavailable
6
HOLDER,COIL
127-21363-00-00
Unavailable
7
NUT(650)
95380-06700-00
$8.49
8
WASHER, SPRING
92995-06100-00
Unavailable
9
COLLAR
90387-05014-00
Unavailable
10
IGNITION COIL ASSEMBLY
109-82310-30-00
Unavailable
11
. WASHER, PLAIN
92990-05200-00
Unavailable
12
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
13
SCREW, PAN HEAD (686)
98580-05035-00
Unavailable
14
PLATE, RECTIFR FTNG
122-81975-00-00
Unavailable
15
RECTIFIER ASY
127-81970-40-00
Unavailable
16
SCREW
92530-04008-00
Unavailable
17
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
18
SCREW PAN HEAD
98580-06010-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
20
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
21
MAIN SWITCH ASSEMBLY
122-82508-20-00
Unavailable
23
SCREW PAN HEAD
98580-06010-00
Unavailable
24
SCREW, PAN
98507-06014-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
27
FUSE HOLDER ASSY
55K-82150-02-00
Unavailable
28
WIRE HARNESS ASSEMBLY
122-82590-20-00
Unavailable
29
HORN
2A7-83371-10-00
Unavailable
30
BOLT(3JP)
97017-06010-00
Unavailable
31
WASHER, SPRING
92995-06100-00
Unavailable
32
STOPSWITCHASSY
122-82530-02-00
Unavailable
33
SCREW,PAN HEAD
92503-05012-00
Unavailable
34
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
35
NEUTRAL SWITCH ASY
146-82540-01-00
Unavailable
36
WASHER, PLATE
90201-12790-00
Unavailable
37
B7HS NGK 4PK
B7H-S0000-00-00
Unavailable
37
BR8HS NGK SCREW TOP PLUG 4PK
BR8-HS000-00-00
Unavailable
38
PLUG CAP ASSY
56J-82370-00-00
Unavailable
39
SEAL, PLUG CAP
104-82372-00-00
Unavailable
40
SEAL, H/TENS CORD
104-82373-00-00
Unavailable
41
GROMMET
104-81329-00-00
Unavailable
42
FLASHER RELAY ASSEMBLY
122-83350-10-00
Unavailable
43
GROMMET
122-82596-00-00
Unavailable
44
GROMMET 152845180000
90480-12013-00
Unavailable
45
FUSE
1A0-82151-00-00
Unavailable
