- YJ2 (RIVERSIDE 60) 1965
CRANKCASE COVER

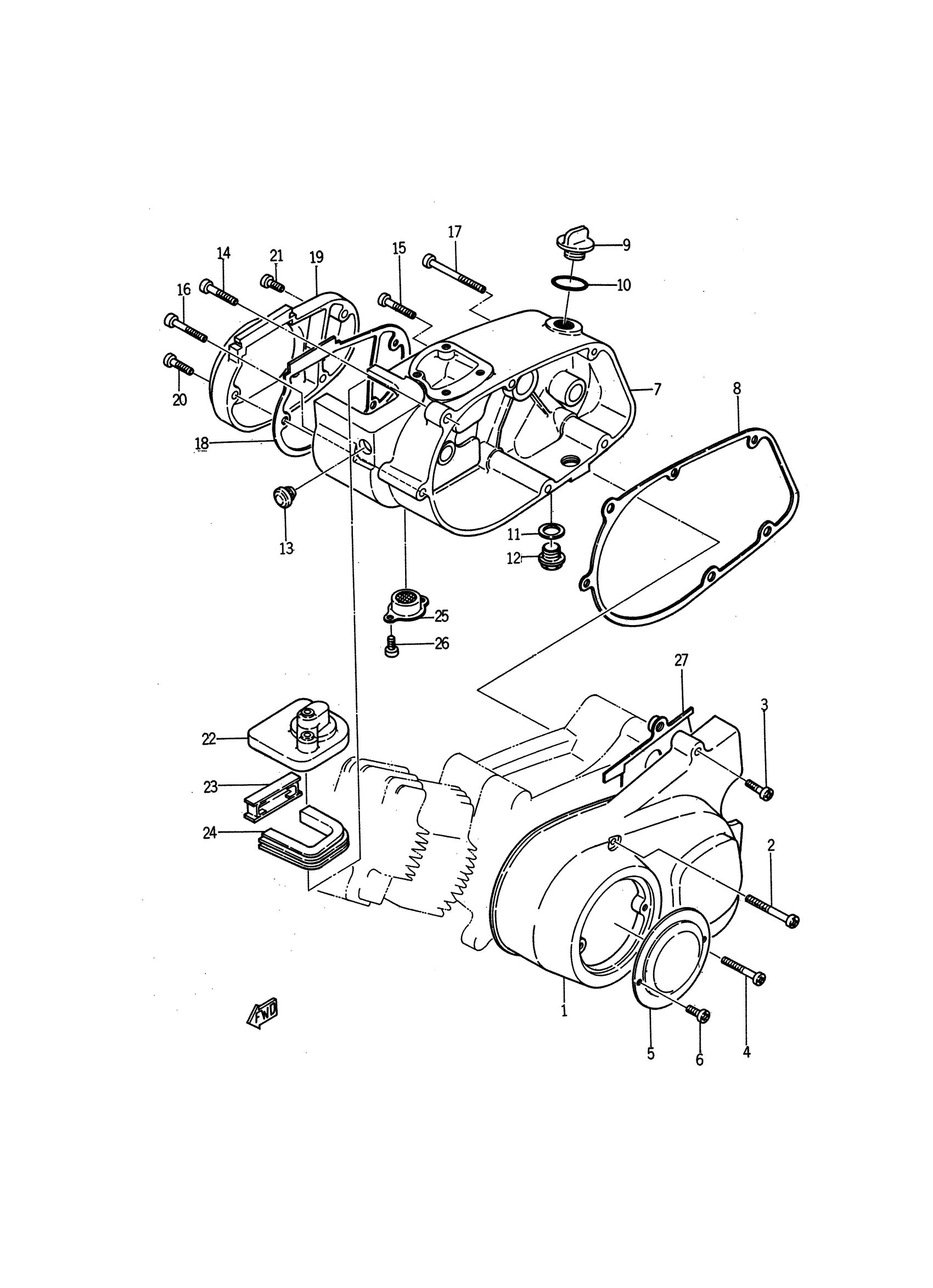

Yamaha YJ2 (RIVERSIDE 60) 1965 CRANKCASE COVER Diagram
#
Description
Price
1
CRCS COVER ASSEMBLY L
122-15410-02-00
Unavailable
2
SCREW, PAN
98507-06085-00
$6.99
3
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
4
SCREW PAN HEAD
98580-06575-00
$12.49
5
COVER, GENERATOR
123-15415-00-00
Unavailable
6
SCREW, PAN HEAD
92503-04008-00
Unavailable
7
CRCS COVER ASSEMBLY R
126-15420-01-00
Unavailable
8
GASKET,CRCS COVER
126-15451-09-00
Unavailable
9
PLUG, OIL
116-15363-00-00
Unavailable
10
O-RING
93210-22028-00
Unavailable
11
WASHER, PROTECTOR
4F4-14766-00-00
$6.99
12
PLUG, STRAIGHT SCREW
90340-14119-00
Unavailable
13
GROMMET 122154860000
90480-12012-00
$8.49
14
SCREW PAN HEAD
98580-06040-00
$8.49
15
SCREW PAN HEAD
98580-06550-00
$8.49
16
SCREW PAN HEAD
98580-06545-00
Unavailable
17
SCREW, PAN HEAD
98580-06580-00
Unavailable
18
GASKET, CARB COVER
126-15453-00-00
Unavailable
19
COVER, CARBURETOR
126-15413-00-00
Unavailable
20
SCREW, PAN
98507-06014-00
Unavailable
21
SCREW PAN HEAD
98580-06010-00
Unavailable
22
CAP, CARBURETOR
122-14481-00-00
Unavailable
23
HOLDER, GUIDE
122-14459-00-00
Unavailable
24
GUIDE, ELEMENT
122-14458-00-00
Unavailable
25
CLEANER, DRAIN
126-15433-00-00
Unavailable
26
SCREW, PAN HEAD
92503-04008-00
Unavailable
27
COVER, CHAIN CASE
102-15418-00-00
Unavailable
