CRANK - PISTON

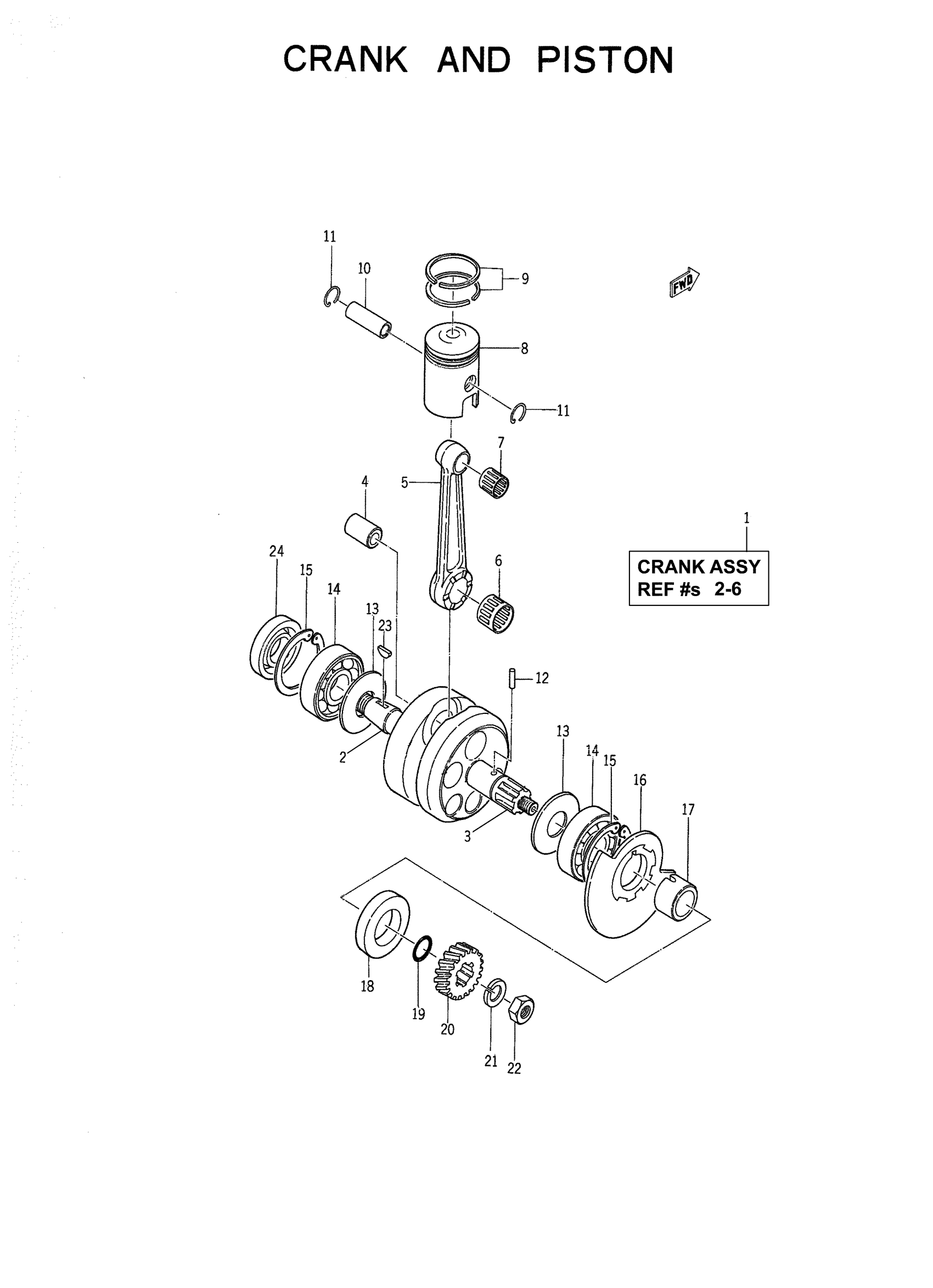

Yamaha YJ2 (RIVERSIDE 60) 1965 CRANK - PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSEMBLY
115-11400-00-00
Unavailable
2
. CRANK 1
115-11412-00-00
Unavailable
3
. CRANK 2
115-11422-00-00
Unavailable
4
. PIN, CRANK 1
3R1-11681-00-00
Unavailable
5
ROD, CONNECTING
3R1-11651-01-00
$125.99
6
BEARING, CYLINDRICAL(3TU)
93310-418C4-00
$48.99
7
BRG,CYL-CAL ROLLER 5G TM
93310-11268-00
$35.99
8
PISTON STD
113-11631-02-96
Unavailable
8
PISTON 1 O/S 0.25
113-11635-02-00
Unavailable
9
PISTON RINGSET STD
113-11610-01-00
Unavailable
9
PISTON RINGSET 2ND
113-11610-21-00
Unavailable
9
PISTON RINGSET 1ST
388-11601-10-00
Unavailable
10
PIN, PISTON
102-11633-02-00
Unavailable
11
CIRCLIP 132116340000
93450-13022-00
$8.49
12
PIN,DOWEL (137)
93604-14012-00
$1.81
13
SHIM, CRANK 1
136-11561-00-04
Unavailable
14
BEARING(1GJ)
93306-20458-00
Unavailable
15
CIRCLIP, INNER
93450-47011-00
Unavailable
16
VALVE, ROTARY
122-13512-01-00
Unavailable
17
COLLAR, VALVE
122-13515-02-00
Unavailable
18
OIL SEAL (28X47X8-137)
93103-28012-00
Unavailable
19
O-RING(3KX)
93210-180A6-00
Unavailable
20
GEAR, PRI DRIVE
122-16111-00-00
Unavailable
21
WASHER, LOCK
136-16135-00-00
Unavailable
22
NUT, HEXAGON
90170-12056-00
Unavailable
23
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
24
OIL SEAL, SD-TYPE
93102-20039-00
Unavailable
