Description

Price

1

STAND, MAIN

128-27111-01-00

Unavailable

2

SHAFT, MAIN STAND

122-27112-00-00

$10.99

3

CIRCLIP (122)

93430-12008-00

$8.49

4

SPRING (122-27116-00)

90506-29054-00

$4.82

5

LINK, MAIN STAND

109-27115-00-00

$4.52

6

FOOTREST 1

109-27411-00-00

Unavailable

7

COVER, FOOTREST

122-27413-00-00

$16.49

8

BOLT, FLANGE

95817-08125-00

$9.49

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

NUT(6L2)

95333-08600-00

$2.49

11

PEDAL, BRAKE

109-27211-00-91

Unavailable

12

ROD, BRAKE

102-27231-01-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

SPRING, (180-27236-00)

90501-10245-00

$8.49

15

SEAT, SPRING

148-27239-00-00

Unavailable

16

NUT (25K)

90179-06411-00

Unavailable

17

SPRING, TENSION

90506-26051-00

Unavailable

18

. PIN, COTTER

91490-12012-00

Unavailable

19

STOPPER, MAIN STAND

128-27114-00-00

Unavailable

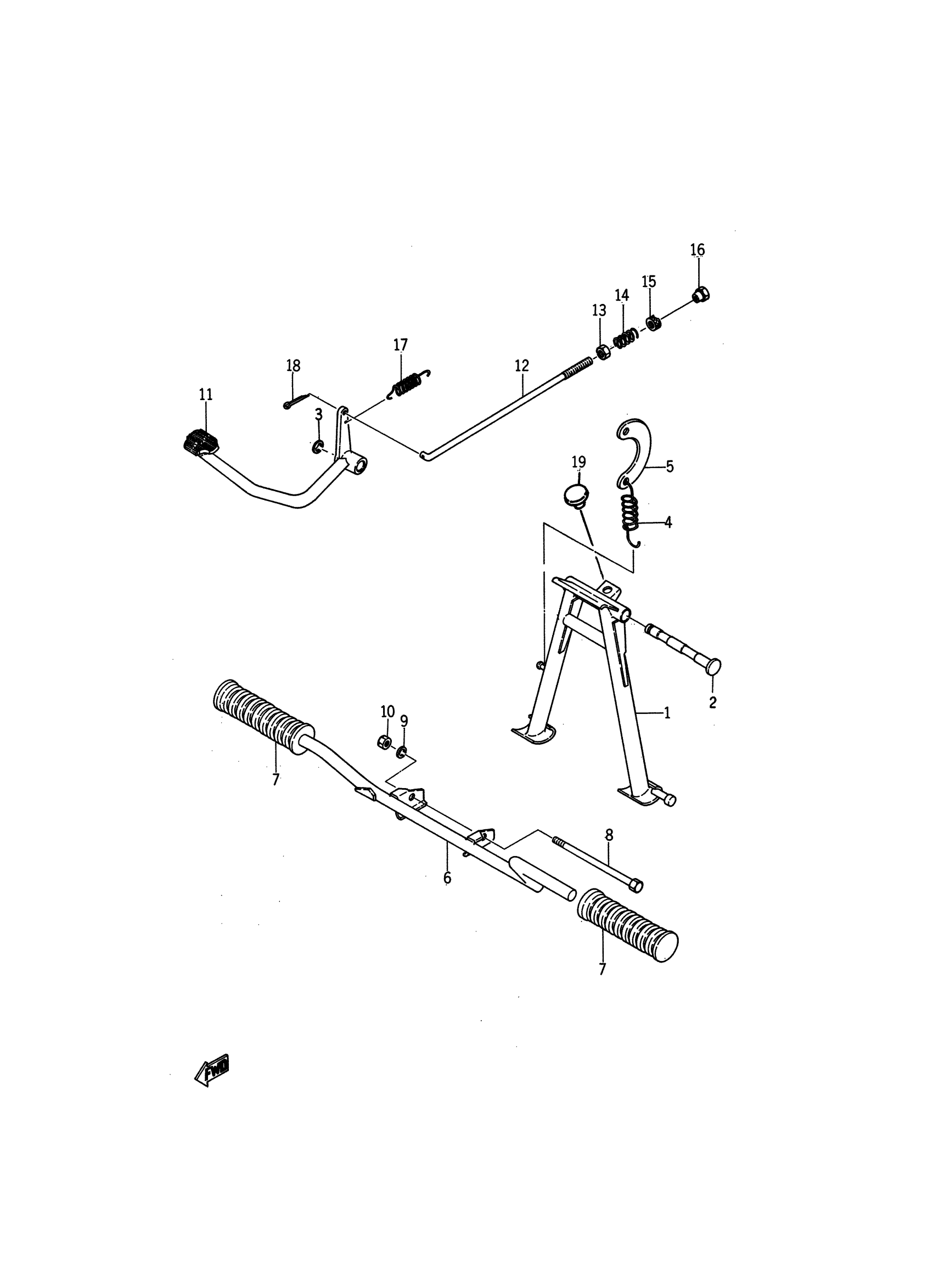

Yamaha YJ1K (RIVERSIDE 55) 1965 STAND - BRAKE PEDAL Diagram

STAND, MAIN

SHAFT, MAIN STAND

CIRCLIP (122)

SPRING (122-27116-00)

LINK, MAIN STAND

FOOTREST 1

COVER, FOOTREST

BOLT, FLANGE

YBS67-8 WASHER, SPRING

NUT(6L2)

PEDAL, BRAKE

ROD, BRAKE

NUT, HEXAGON

SPRING, (180-27236-00)

SEAT, SPRING

NUT (25K)

SPRING, TENSION

. PIN, COTTER

STOPPER, MAIN STAND
