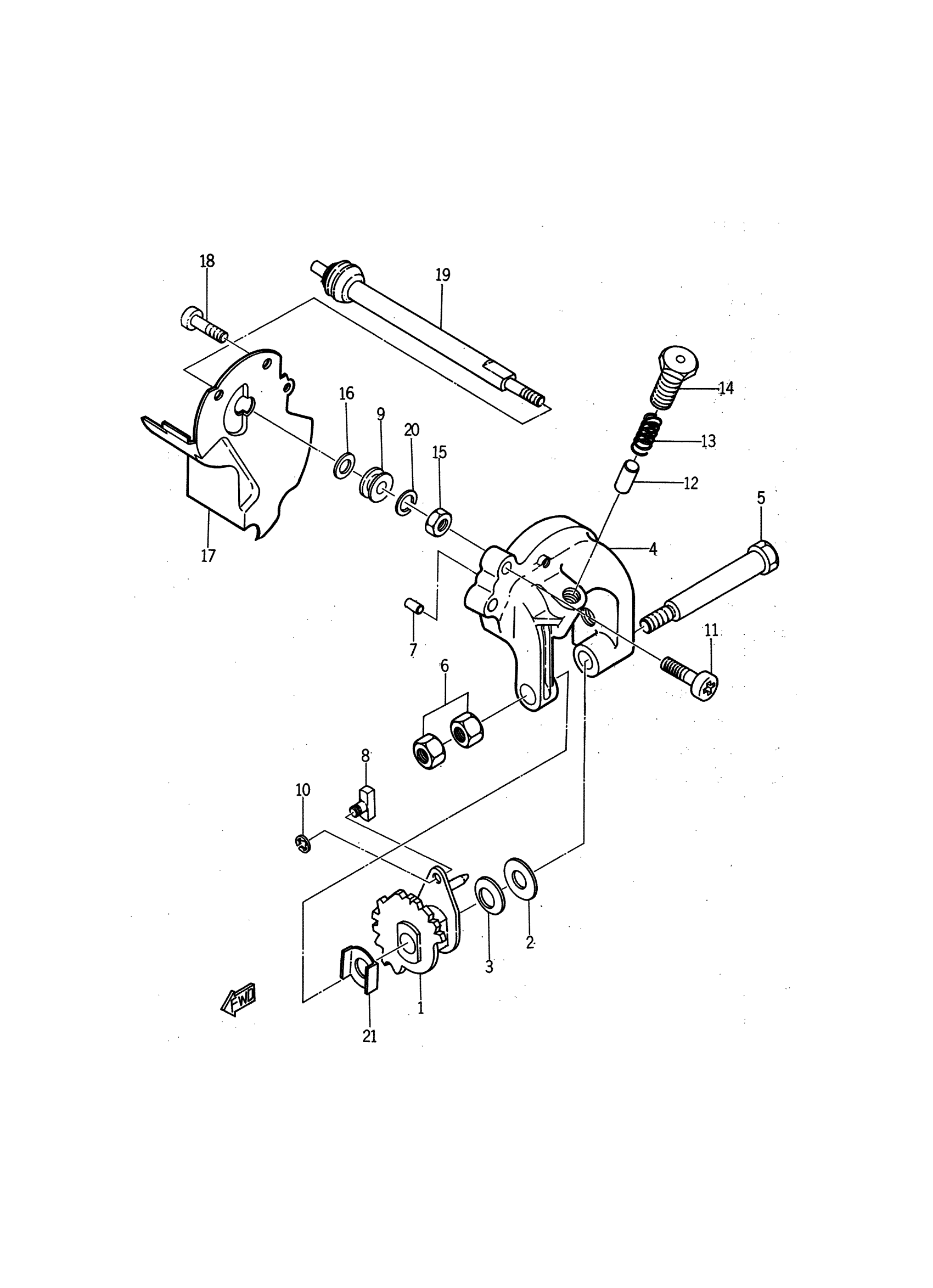

Yamaha YJ1K (RIVERSIDE 55) 1965 SHIFTER 1 Diagram

#

Description
Price

1

CAM PLATE ASSEMBLY

122-18440-00-00

Unavailable

2

PLATE, THRUST

102-18457-00-00

Unavailable

3

WASHER, WAVE

90206-10013-00

Unavailable

4

BRACKET, SHIFTER

122-18431-01-00

Unavailable

5

SHAFT, CAM

102-18432-00-00

Unavailable

6

. NUT

95380-08700-00

Unavailable

7

PIN,DOWEL (137)

93604-14012-00

$1.81

8

SHIFTER

122-18421-01-00

Unavailable

9

RETAINER, SHIFTER

122-18422-01-00

Unavailable

10

CIRCLIP (EU0)

99080-04600-00

Unavailable

11

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

12

STOPPER, CAM

102-18547-00-00

Unavailable

13

SPRING,COMPRESSION

90501-10056-00

Unavailable

14

BOLT

90109-10201-00

Unavailable

15

NUT(650)

95380-06700-00

$8.49

16

SHIM, ROD

122-18416-00-10

Unavailable

17

SEAL, DUST

102-18428-00-00

Unavailable

18

SCREW,PAN HEAD

164-81245-20-00

Unavailable

19

SHIFTER ROD ASSEMBLY

122-18410-00-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLATE(52H)

90201-105J4-00

Unavailable
