- YJ1K (RIVERSIDE 55) 1965
REAR WHEEL

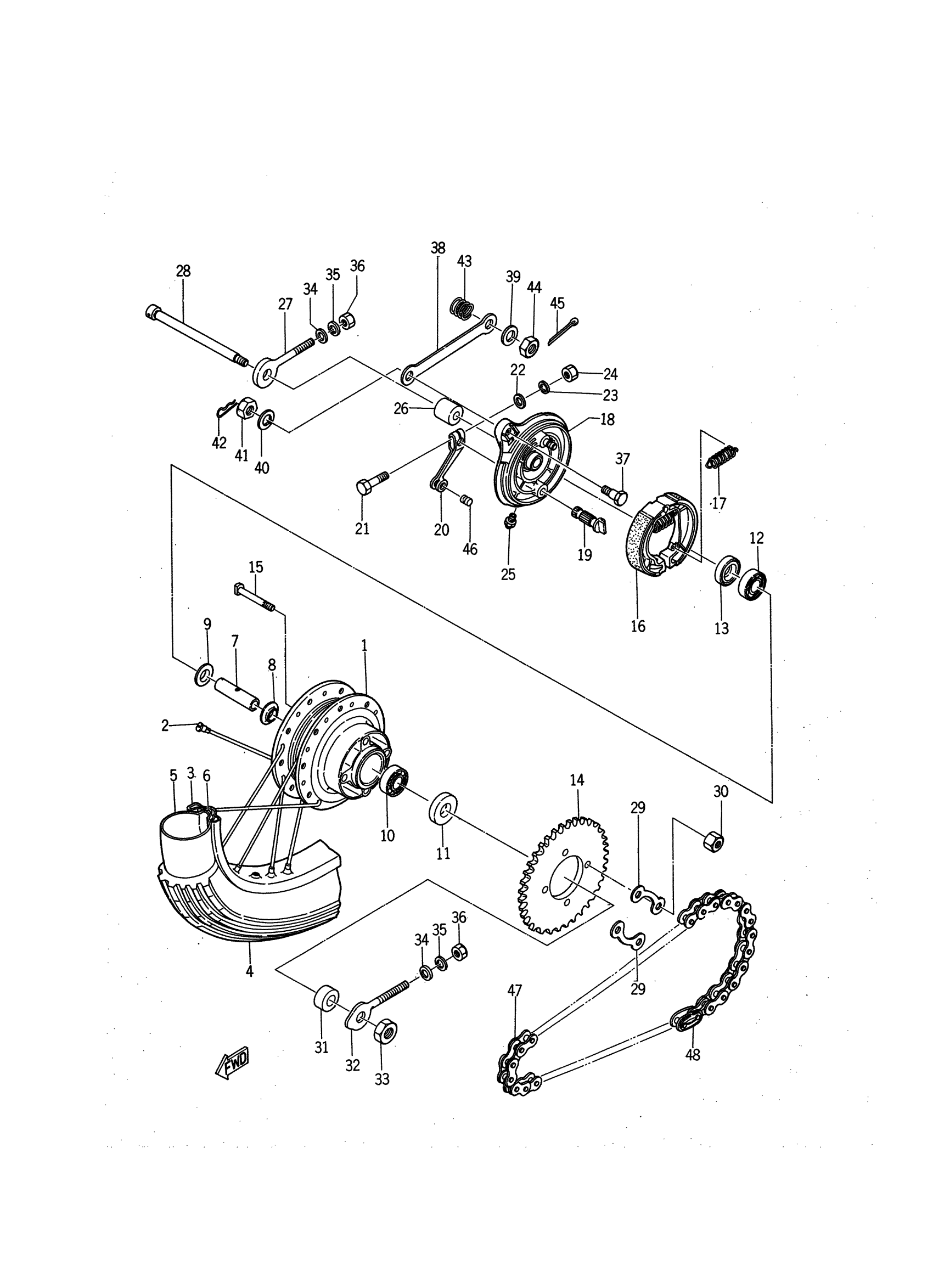

Yamaha YJ1K (RIVERSIDE 55) 1965 REAR WHEEL Diagram
#
1
HUB, REAR
109-25311-01-35
Unavailable
2
SPOKE SET, REAR
109-25304-00-00
Unavailable
3
RIM (1.20-17)(19K)
94412-17496-00
Unavailable
4
225X17 IRC
94122-17009-00
Unavailable
5
TUBE
94225-17082-00
Unavailable
6
BAND, RIM (3.25-17) (3Y0)
94332-17112-00
$9.49
7
SPACER
90560-12139-00
Unavailable
8
FLANGE, SPACER
109-25315-00-00
$7.99
9
FLANGE, SPACER
109-25315-00-00
$7.99
10
BRG.
93306-30101-00
$36.99
11
OIL SEAL (18X37X8-109)
93102-18008-00
$25.99
12
BRG.
93306-30101-00
$36.99
13
OIL SEAL(3TU)
93106-20033-00
$13.49
14
SPROCKET, DRIVN 35T
109-25435-10-33
Unavailable
14
SPROCKET, DRIVN 37T
109-25437-10-00
Unavailable
14
SPROCKET, DRVN 38T
288-25438-10-33
Unavailable
14
SPROCKET,DRIVN 39T
288-25439-10-00
Unavailable
15
BOLT 109254110000
90109-08319-00
Unavailable
16
BRAKE SHOE KIT
4KN-W253E-11-00
Unavailable
17
SPRING, TENSION (566).
90506-16150-00
Unavailable
18
BRAKE SHOE PLT ASSEMBLY
393-25026-10-Y8
Unavailable
19
CAM SHAFT
122-25351-02-00
Unavailable
20
LEVER, CAM SHAFT
122-25355-00-00
Unavailable
21
BOLT, HEXAGON
97017-06030-00
Unavailable
22
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
NUT, HEXAGON
95380-06600-00
Unavailable
25
NIPPLE, GREASE
93700-06M03-00
Unavailable
26
COLLAR 102253830000
90387-12412-00
Unavailable
27
PULLER, CHAIN
3AC-2538G-10-00
Unavailable
28
SHAFT, WHEEL
353-25381-00-00
Unavailable
29
WASHER
2AL-25412-00-00
Unavailable
30
. NUT
95380-08700-00
Unavailable
31
COLLAR (40E)
90387-120F9-00
Unavailable
32
PULLER, CHAIN 1
106-25388-00-00
Unavailable
33
NUT, SELF LOCKING
90185-10031-00
Unavailable
34
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
NUT, HEXAGON
95380-06600-00
Unavailable
37
BOLT 1092537300
90109-08063-00
Unavailable
38
BAR, TENSION
102-25371-00-00
Unavailable
39
WASHER, PLAIN
92990-08200-00
Unavailable
40
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
41
. NUT
95380-08700-00
Unavailable
42
CLIP (156-83525-00)
90468-10050-00
Unavailable
43
SPRING,COMPRESSION
90501-20129-00
Unavailable
44
. NUT
95380-08700-00
Unavailable
45
PIN, COTTER
91490-20025-00
Unavailable
46
PIN 1562723700
90249-12008-00
Unavailable
47
420 100L
94504-20100-00
Unavailable
48
JOINT, CHAIN (29A)
94680-52001-00
Unavailable
