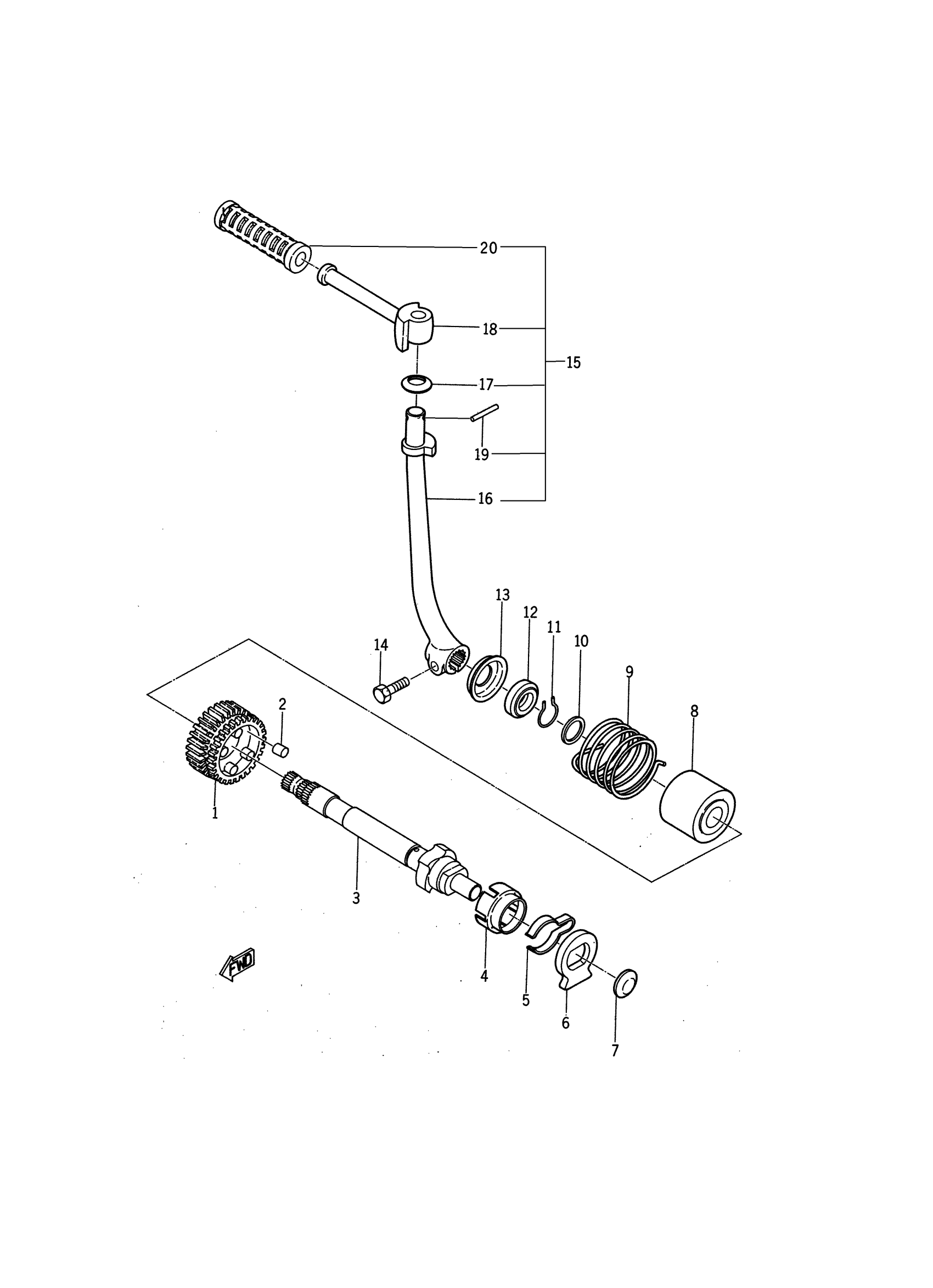

Yamaha YJ1K (RIVERSIDE 55) 1965 KICK - STARTER Diagram

#

Description
Price

1

GEAR, KICK

122-15641-00-00

Unavailable

2

PIN, DOWEL (296)

93606-07082-00

$8.49

3

KICK AXLE ASSEMBLY

122-15660-00-00

Unavailable

4

RETAINER, KICK ROLLER

102-15689-00-00

Unavailable

5

CLIP

90468-12011-00

Unavailable

6

STOPPER

102-15668-00-00

Unavailable

7

PLUG, BLIND

101-15678-00-00

Unavailable

8

SPACER

126-15666-00-00

Unavailable

9

SPRING,TORSION

90508-26044-00

Unavailable

10

WASHER,PLATE

90201-15233-00

Unavailable

11

CLIP

90468-18014-00

Unavailable

12

OIL SEAL (15X26X6-102)

93109-15001-00

$8.49

13

COVER, KICK AXLE

122-15662-00-00

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

KICK CRANK ASY

127-15610-01-91

Unavailable

16

. CRANK, KICK

122-15611-00-00

Unavailable

17

WASHER,WAVE

90206-10014-00

Unavailable

18

LEVER,KICK

214-15612-09-00

Unavailable

19

. PIN, DOWEL

93604-18017-00

Unavailable

20

COVER, KICK LEVER

102-15618-00-00

Unavailable
