- YJ1K (RIVERSIDE 55) 1965
HANDLE - FRONT FENDER

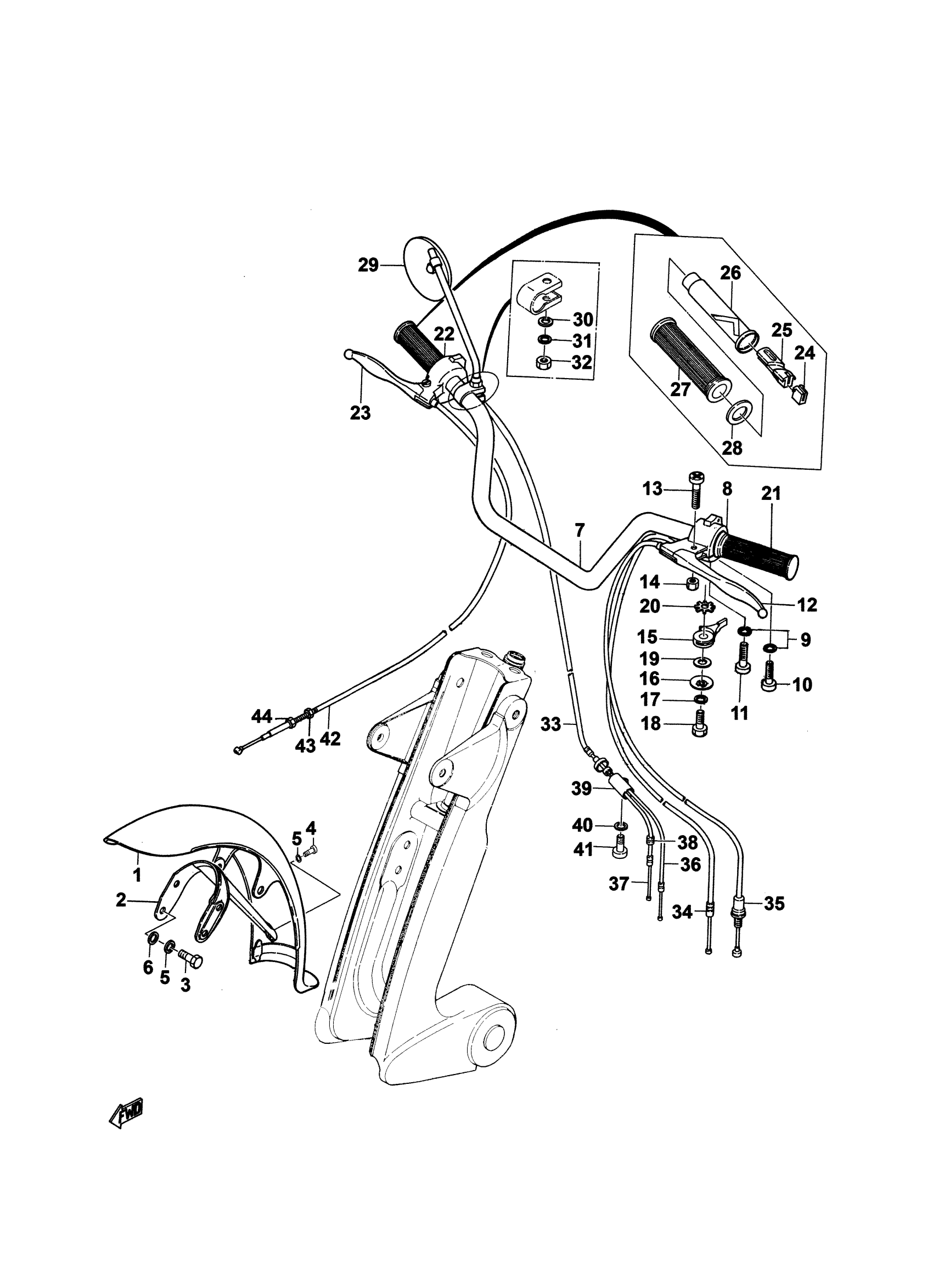

Yamaha YJ1K (RIVERSIDE 55) 1965 HANDLE - FRONT FENDER Diagram
#
1
FENDER,FRONT
109-21511-00-33
Unavailable
2
STAY, FENDER 1
109-21513-00-00
Unavailable
3
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
4
SCREW, PAN
98517-06012-00
$3.78
5
WASHER, SPRING
92995-06100-00
Unavailable
6
WASHER, SPRING
90201-06200-00
Unavailable
7
HANDLEBAR
122-26111-01-00
Unavailable
8
LEVER HOLDER ASSEMBLY 1
124-82710-11-94
Unavailable
9
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
10
SCREW, PAN HEAD
92501-05006-00
Unavailable
11
SCREW, PAN HEAD
92501-05006-00
Unavailable
12
LEVER L
803-83912-00-38
Unavailable
13
SCREW, PAN HEAD(4MY)
98507-05018-00
$3.28
14
NUT
95380-05700-00
Unavailable
15
LEVER, STARTER
103-83941-00-00
Unavailable
16
COVER, STARTER
122-83942-00-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
19
WASHER, PLAIN
92990-08200-00
Unavailable
20
WASHER, SPEC''L SHAP
135-83944-00-00
Unavailable
21
GRIP LH
102-26241-00-00
Unavailable
22
LEVER HOLDER ASSEMBLY 2
122-82720-11-94
Unavailable
23
. LEVER R
122-83922-01-00
Unavailable
24
STOPPER,CABLE
135-26245-00-00
Unavailable
25
SLIDER, THROTTLE
102-26244-00-00
Unavailable
26
TUBE, GUIDE
1V1-26243-00-00
Unavailable
27
GRIP RH
102-26242-00-00
Unavailable
28
RING, LEAF
150-26249-00-00
Unavailable
29
MIRROR
116-26290-02-00
Unavailable
30
WASHER, PLAIN
92990-08200-00
Unavailable
31
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
32
NUT(6L2)
95333-08600-00
Unavailable
33
CABLE, THROTTLE 1
126-26311-01-00
Unavailable
34
CABLE, STARTER 1
122-26331-00-00
Unavailable
35
WIRE, CLUTCH
124-26335-10-00
Unavailable
36
CABLE, THROTTLE 2
126-26312-00-00
Unavailable
37
CABLE, PUMP
126-26321-00-00
Unavailable
38
GROMMET, PUMP CABLE
126-26326-00-00
Unavailable
39
CONNECTOR, CABLE
137-26261-01-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
41
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
42
CABLE, BRAKE
109-26341-01-00
Unavailable
43
BOLT (109-26345-00)
90123-06011-00
Unavailable
44
NUT (109-26344-00)
90179-06143-00
Unavailable
