- YJ1K (RIVERSIDE 55) 1965
FRONT WHEEL

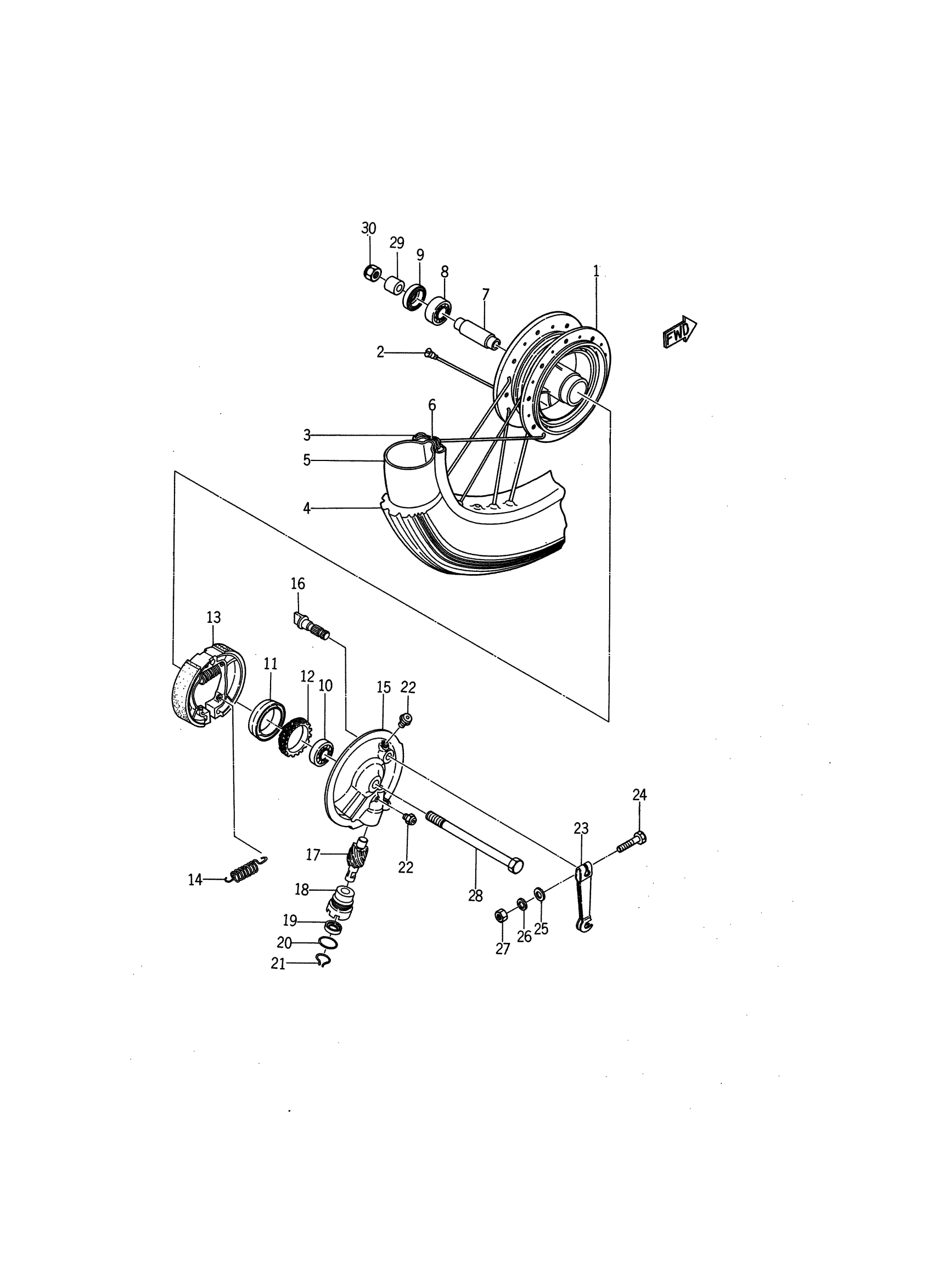

Yamaha YJ1K (RIVERSIDE 55) 1965 FRONT WHEEL Diagram
#
1
HUB, FRONT
109-25111-00-35
Unavailable
2
SPOKE SET, FRONT
109-25104-00-00
Unavailable
3
RIM (1.20-17)(19K)
94412-17496-00
Unavailable
4
TIRE FRONT 225X17
94122-17315-00
Unavailable
5
TUBE
94225-17082-00
Unavailable
6
BAND, RIM (3.25-17) (3Y0)
94332-17112-00
$9.49
7
SPACER, BEARING
102-25117-00-00
Unavailable
8
BEARING(3DL)
93306-20226-00
$38.99
9
OIL SEAL (20X35X7-136)
93102-20009-00
$10.49
10
BEARING(3DL)
93306-20226-00
$38.99
11
OIL SEAL, OS-TYPE
93107-42001-00
Unavailable
12
GEAR, DRIVE
109-25135-00-00
Unavailable
13
BRAKE SHOE KIT
4KN-W253E-11-00
$25.99
13
BRAKE SHOE KIT
4KN-W253E-11-00
$25.99
14
SPRING, TENSION (566).
90506-16150-00
$9.49
15
PLATE, BRAKE SHOE
116-25121-00-35
Unavailable
15
BRAKE SHOE PLT ASY
394-25120-00-38
Unavailable
16
CAM SHAFT
122-25351-02-00
Unavailable
17
GEAR, METER
141-25138-00-00
Unavailable
18
BUSHING
109-25136-00-00
Unavailable
19
OIL SEAL (7X14X4-136)
93104-07003-00
Unavailable
20
O-RING (26H)
93210-14579-00
Unavailable
21
RING, STOP
102-25137-00-00
Unavailable
22
NIPPLE, GREASE
93700-06M03-00
Unavailable
23
LEVER, CAMSHAFT 1
109-25155-00-00
Unavailable
24
BOLT, HEXAGON
97017-06030-00
Unavailable
25
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
NUT, HEXAGON
95380-06600-00
Unavailable
28
AXLE, WHEEL
102-25181-00-00
Unavailable
29
COLLAR
90387-10079-00
Unavailable
30
NUT, SELF LOCKING
90185-10031-00
Unavailable
