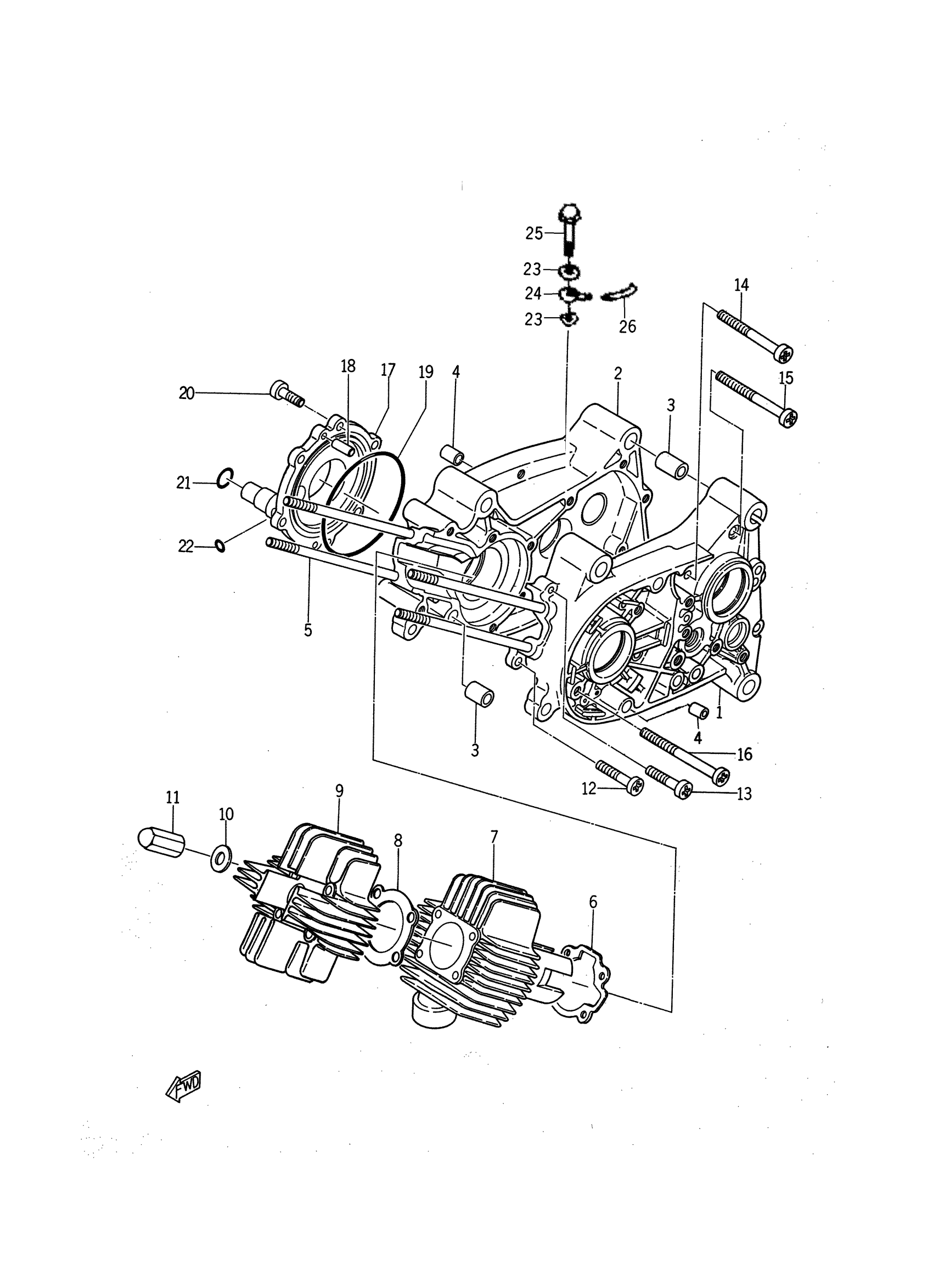

Yamaha YJ1K (RIVERSIDE 55) 1965 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE 1
109-15111-01-00
Unavailable
2
CRANKCASE 2
109-15121-02-00
Unavailable
3
PIN, DOWEL
99530-12016-00
$4.89
4
PIN, DOWEL(3VD)
99530-10114-00
$2.55
5
BOLT STUD 1091136100
90116-06026-00
$4.29
6
GASKET, CYLINDER
3LA-11351-10-00
$18.49
7
CYLINDER 1
113-11311-00-00
Unavailable
8
GASKET, CYLINDER HEAD 1
517-11181-01-00
$6.99
9
HEAD,CYLINDER 1
115-11111-61-00
Unavailable
10
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
11
NUT CAP 126111716000
90176-06002-00
$5.60
12
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
13
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
14
SCREW PAN HEAD
98580-06545-00
$5.60
15
SCREW PAN HEAD
98580-06550-00
$8.49
16
SCREW PAN HEAD
98580-06565-00
Unavailable
17
COVER, VALVE
126-13551-02-00
Unavailable
18
PIN,DOWEL (137)
93604-14012-00
Unavailable
19
RING,RUBBER
120-13554-00-00
Unavailable
20
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
21
O-RING (122)
93210-23029-00
Unavailable
22
O-RING (137)
93210-12014-00
Unavailable
23
GASKET
90430-10028-00
Unavailable
24
COLLAR, UNION
122-15372-00-00
Unavailable
25
BREATHER
122-15371-90-00
Unavailable
26
PIPE, BREATHER
122-15373-00-00
Unavailable
