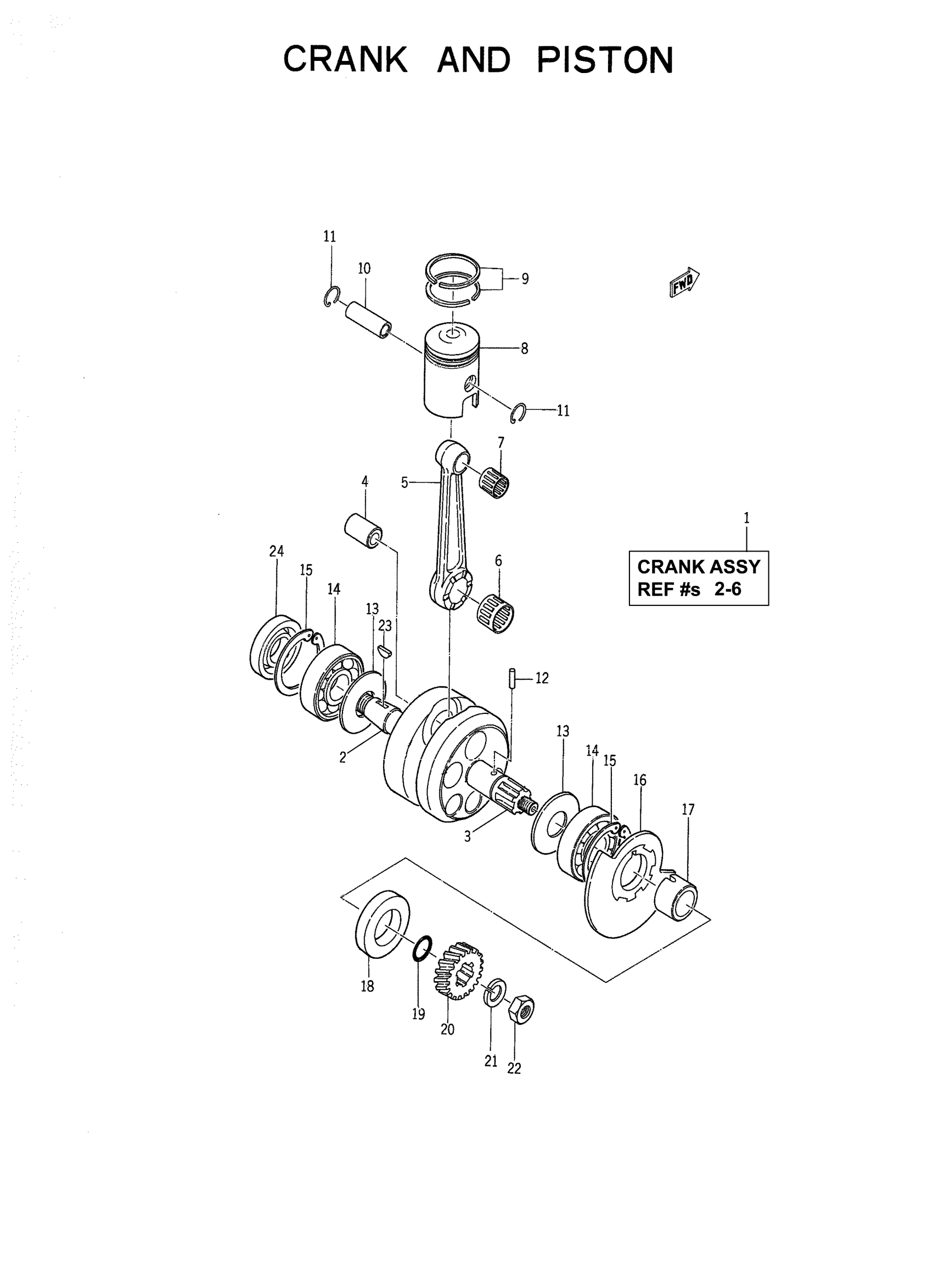

Yamaha YJ1K (RIVERSIDE 55) 1965 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

109-11400-01-00

Unavailable

2

CRANK 1

109-11412-00-00

Unavailable

3

CRANK 2

109-11422-01-00

Unavailable

4

. PIN, CRANK 1

3R1-11681-00-00

Unavailable

5

ROD, CONNECTING

3R1-11651-01-00

$125.99

6

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

7

PISTON STD

113-11631-02-96

Unavailable

7

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

8

PISTON STD

113-11631-02-96

Unavailable

8

PISTON 1 O/S 0.25

113-11635-02-00

Unavailable

9

PISTON RINGSET STD

113-11610-01-00

Unavailable

9

PISTON RINGSET 2ND

113-11610-21-00

Unavailable

9

PISTON RINGSET 1ST

388-11601-10-00

Unavailable

10

PIN, PISTON

102-11633-02-00

Unavailable

11

CIRCLIP 132116340000

93450-13022-00

$8.49

12

PIN,DOWEL (137)

93604-14012-00

Unavailable

13

SHIM, CRANK 1

136-11561-00-04

Unavailable

14

BEARING(1GJ)

93306-20458-00

Unavailable

15

CIRCLIP, INNER

93450-47011-00

Unavailable

16

VALVE, ROTARY

122-13512-01-00

Unavailable

17

COLLAR, VALVE

122-13515-02-00

Unavailable

18

OIL SEAL (28X47X8-137)

93103-28012-00

Unavailable

19

O-RING(3KX)

93210-180A6-00

Unavailable

20

GEAR, PRI DRIVE

122-16111-00-00

Unavailable

21

WASHER, LOCK

136-16135-00-00

Unavailable

22

NUT, HEXAGON

90170-12056-00

Unavailable

23

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

24

OIL SEAL, SD-TYPE

93102-20039-00

Unavailable
