- YJ1K (RIVERSIDE 55) 1965
CARBURETOR

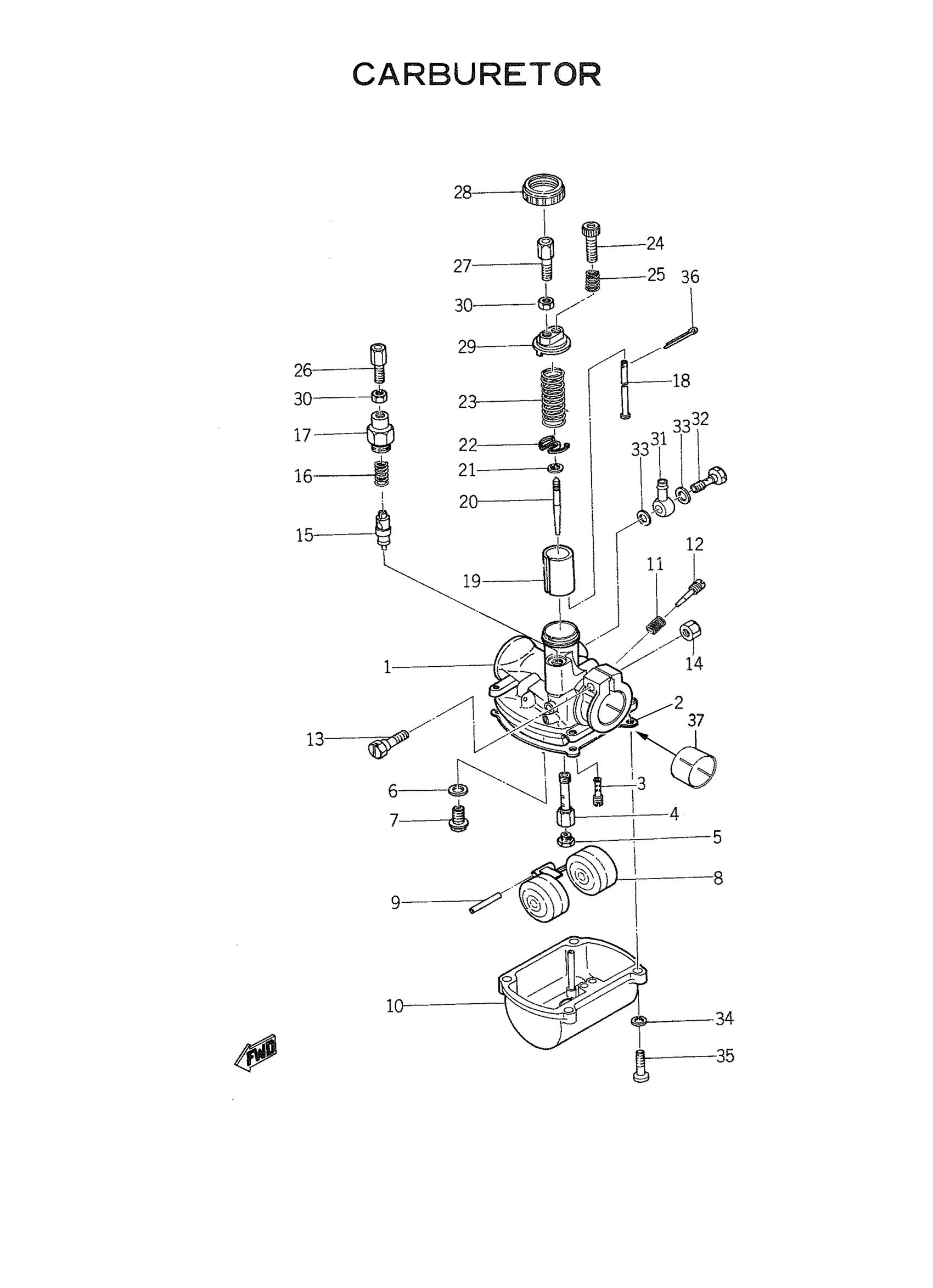

Yamaha YJ1K (RIVERSIDE 55) 1965 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
109-14101-01-00
Unavailable
2
GASKET, FLOAT CHAMBER
127-14184-00-00
$10.99
3
JET, PILOT #15
127-14142-15-00
Unavailable
4
NOZZLE, MAIN
127-14141-17-00
Unavailable
5
JET, MAIN #60
127-14143-12-00
Unavailable
5
JET, MAIN #70
127-14143-14-00
Unavailable
5
JET, MAIN #80
127-14143-16-00
Unavailable
5
. JET, MAIN #90
127-14143-18-00
Unavailable
5
JET, MAIN (NO.100)
127-14143-20-00
$7.99
5
JET, MAIN (NO.110)
127-14143-22-00
Unavailable
6
WASHER, VALVE SEAT
127-14195-00-00
$7.99
7
VALVE SEAT ASSY (#1.2)
2E9-14190-12-00
$55.99
8
FLOAT
127-14185-00-00
$38.99
9
PIN, FLOAT
127-14186-00-00
$6.65
10
BODY, FLOAT CHMBR 1
127-14181-00-00
Unavailable
11
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
12
. SCREW, AIR ADJUSTINGSET
127-W1412-00-00
Unavailable
13
. SCREW, BODY FITTING
127-14125-01-00
Unavailable
14
NUT, HOLDING
127-14164-00-00
Unavailable
15
PLUNGER, STARTER
58E-14171-00-00
Unavailable
16
SPRING, PLUNGER
127-14135-00-00
Unavailable
17
CAP, PLUNGER
127-14174-00-00
Unavailable
18
BAR, THROTTLE
127-14114-00-00
Unavailable
19
VALVE, THROTTLE 1
127-14112-15-00
Unavailable
20
NEEDLE
127-14116-09-00
Unavailable
21
CLIP
127-14137-00-00
Unavailable
22
. SEAT, SPRING
296-14136-00-00
Unavailable
23
. SPRING, THRTL VALVE
127-14131-00-00
Unavailable
24
SCREW, THRTL STOP
127-14121-00-00
Unavailable
25
SPRING, THROTTLE STOP
127-14133-00-00
Unavailable
26
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
27
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
28
. CAP, MIXING CHAMBER
127-14168-00-00
Unavailable
29
. TOP, MIXING CHAMBER
127-14158-00-00
Unavailable
30
NUT, WIRE ADJUSTING
127-14161-00-00
Unavailable
31
. CONNECTOR, BANJO
127-14167-00-00
Unavailable
32
. BOLT, BANJO
127-14166-00-00
Unavailable
33
GASKET
127-14198-00-00
Unavailable
34
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
35
SCREW, PAN HEAD
92503-04020-00
Unavailable
36
. PIN, COTTER
91401-10015-00
Unavailable
37
. GASKET, INSULATING
127-14156-00-00
Unavailable
