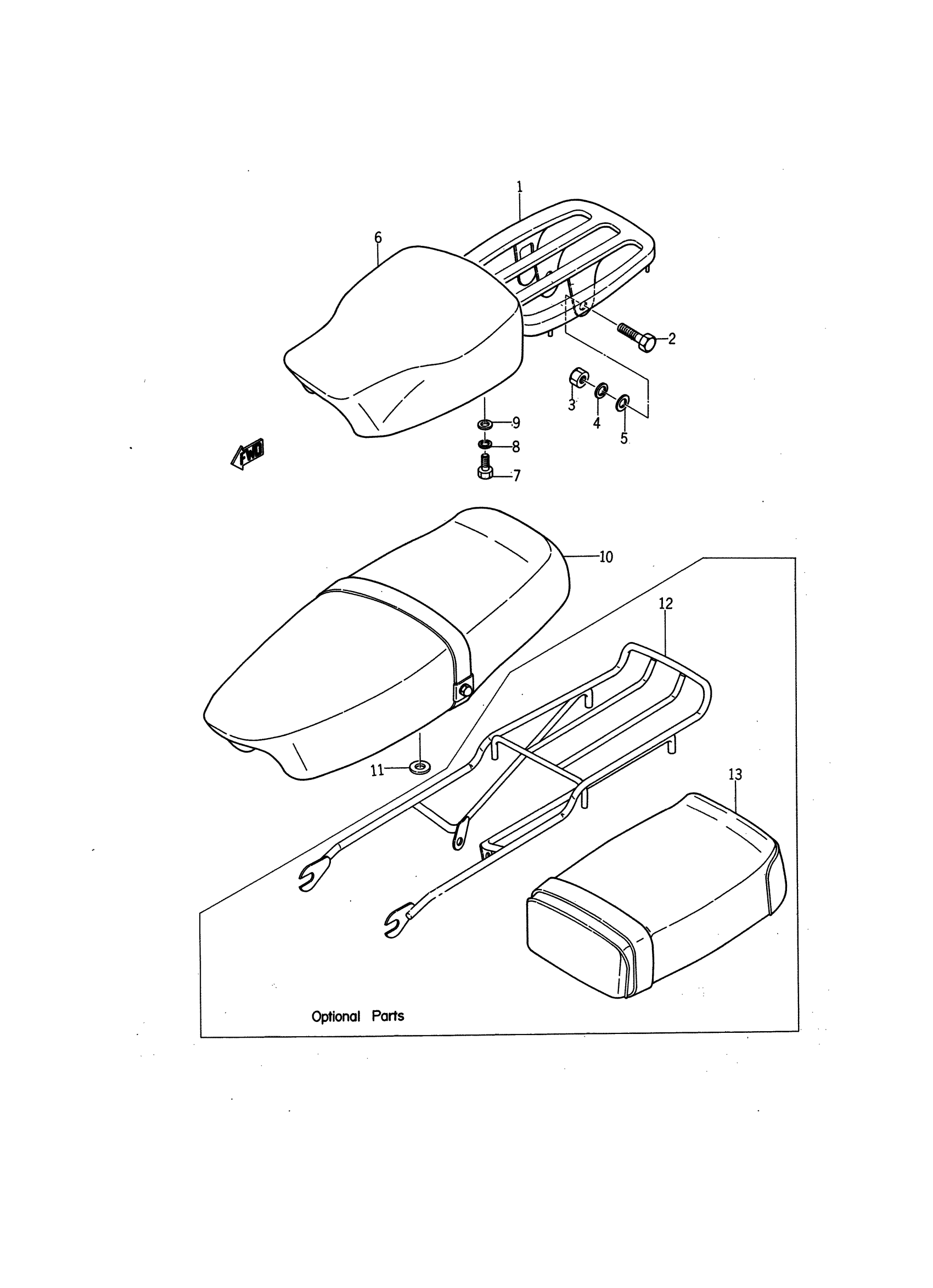

Yamaha YJ1 (RIVERSIDE 55) 1964 SEAT - CARRIER Diagram

#

Description

Price

1

CARRIER ASSEMBLY

122-24810-00-81

Unavailable

2

BOLT(JA9)

90101-08691-00

$5.13

3

NUT(6L2)

95333-08600-00

$3.15

4

YBS67-8 WASHER, SPRING

92990-08100-00

$4.32

5

WASHER, PLAIN

92990-08200-00

$2.41

6

SINGLE SEAT ASSEMBLY

122-24710-00-00

Unavailable

7

BOLT, HEXAGON

97013-08016-00

$1.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$4.32

9

WASHER, PLAIN

92990-08200-00

$2.41

10

DOUBLE SEAT ASSEMBLY

122-24730-00-00

Unavailable

11

WASHER, PLATE (4N0)

90201-126A7-00

$5.98

12

SUB CARR YG1/YL1

122-24830-00-00

Unavailable

13

TANDEM SEAT ASSEMBLY

107-24750-00-00

Unavailable
