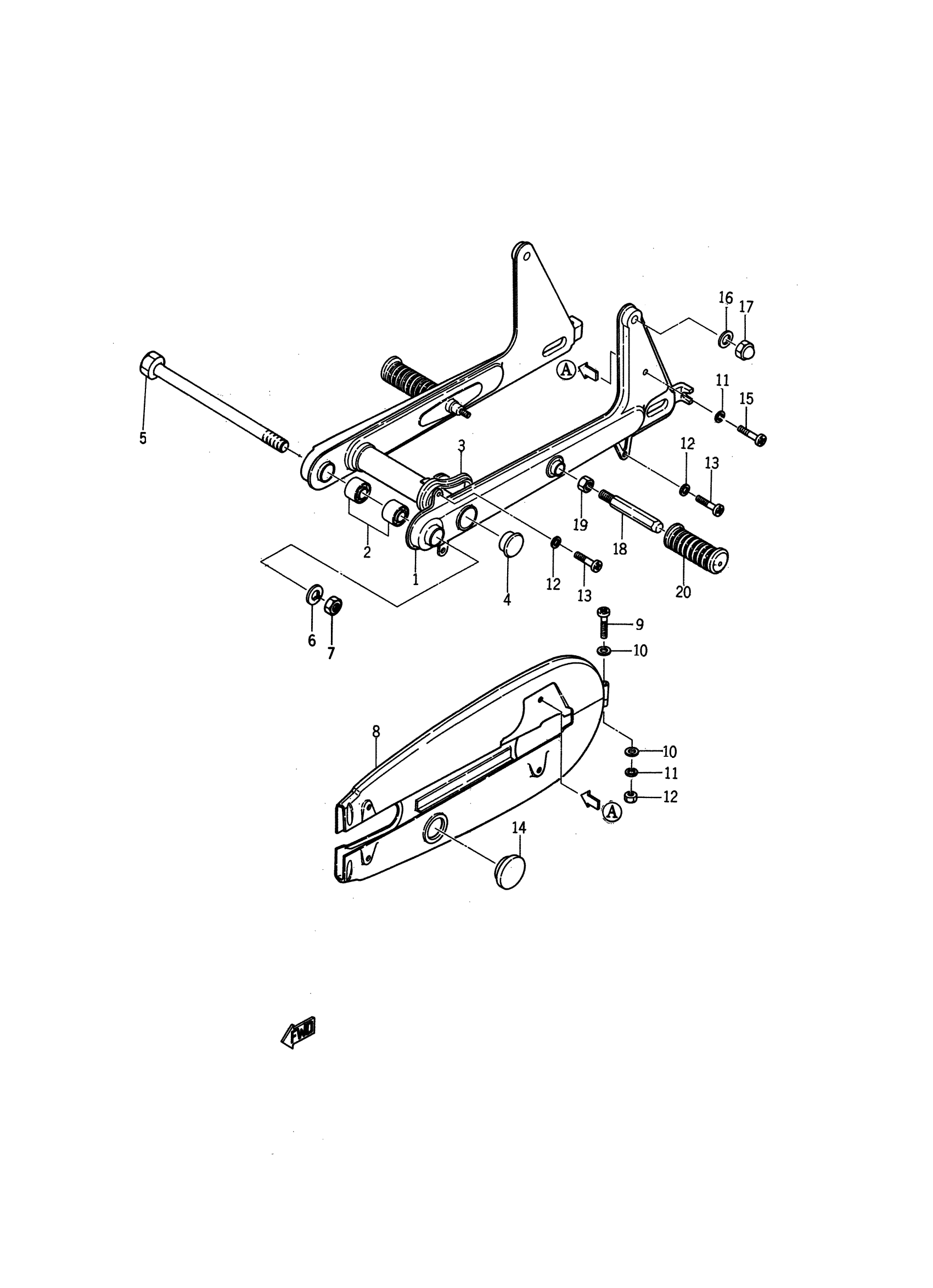

Yamaha YJ1 (RIVERSIDE 55) 1964 REAR ARM - CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

109-22110-00-81

Unavailable

2

BUSH 1

102-22123-00-00

$9.45

3

SEAL,GUARD

296-22151-01-00

Unavailable

4

CAP, REAR ARM

180-22117-00-00

$6.42

5

SHAFT, PIVOT

486-22141-01-00

$28.08

6

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

7

NUT, SELF LOCKING

90185-10031-00

Unavailable

8

CHAIN CASE ASY

207-22310-01-81

Unavailable

9

SCREW, PAN HEAD (686)

98580-05035-00

$8.33

10

. WASHER, PLAIN

92990-05200-00

$4.77

11

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

12

NUT, HEXAGON SMALL

95317-05700-00

$5.88

13

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.36

14

CAP

148-22315-00-00

$6.30

15

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.36

16

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

17

NUT, CROWN

90176-12006-00

Unavailable

18

BOLT

90101-12120-00

Unavailable

19

NUT, HEXAGON

90170-12061-00

Unavailable

20

COVER, RR FOOTREST

128-27433-00-00

Unavailable
