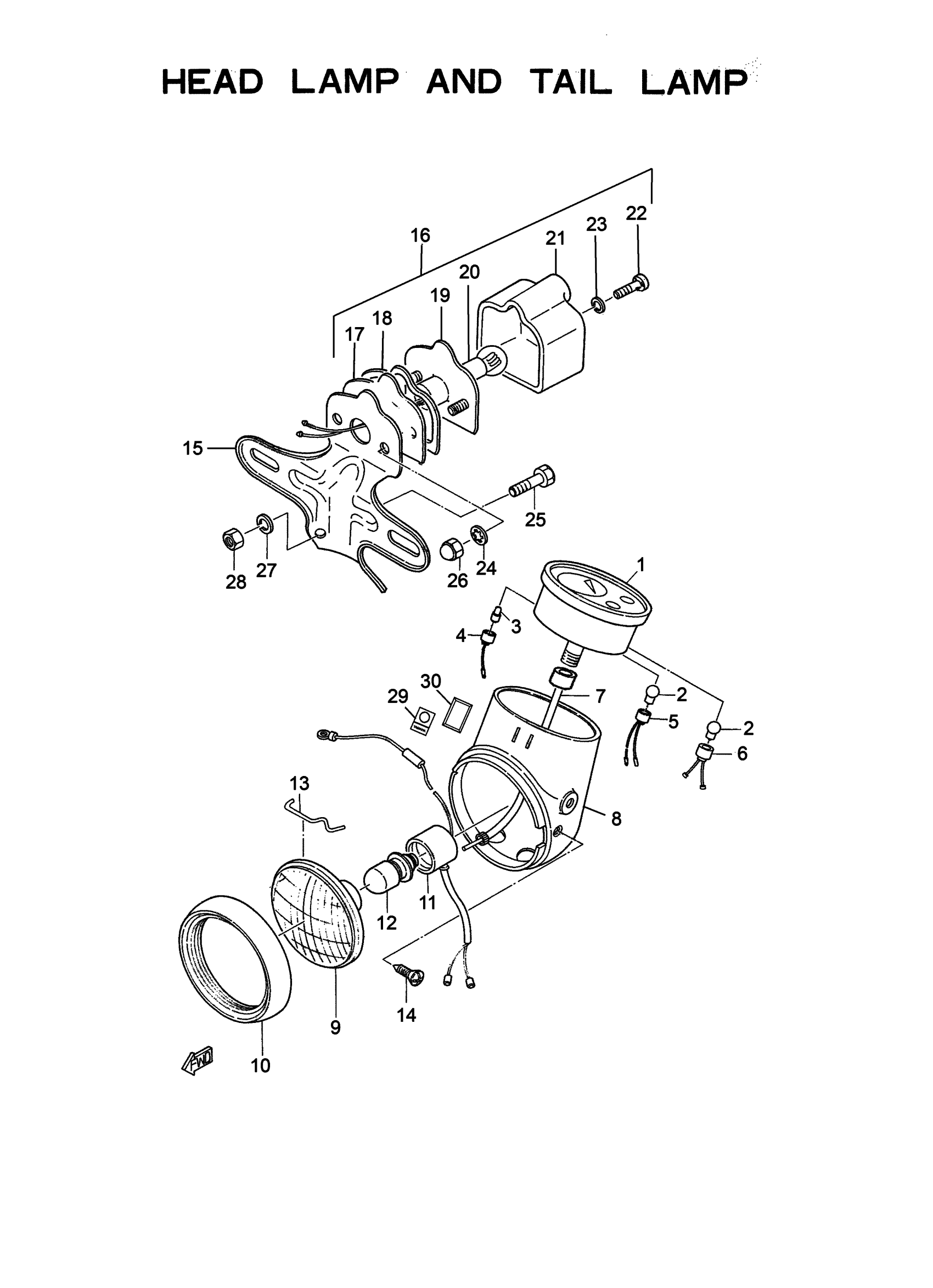

Yamaha YJ1 (RIVERSIDE 55) 1964 HEADLIGHT - TAILLIGHT Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

122-83510-30-00

Unavailable

2

BULB,(6V3W)

122-83516-10-00

Unavailable

3

BULB,METER(6V1.5W)

104-83517-10-00

$8.99

4

. SOCKET, METER

122-83536-10-00

Unavailable

5

SOCKET, NEUTRAL

122-83537-10-00

Unavailable

6

SOCKET, FLASHER

122-83538-10-00

Unavailable

7

SPEEDOMETER CABLE

166-83550-01-00

Unavailable

8

BODY ASSEMBLY, HEADLIGHT

122-84130-00-35

Unavailable

9

LENS ASSEMBLY

109-84120-00-00

Unavailable

10

RIM, HEADLIGHT

127-84115-00-00

Unavailable

11

SOCKET

122-84112-60-00

Unavailable

12

BULB, HL6V15/15W

104-84114-00-XX

Unavailable

13

SPRING, SET

122-84124-00-00

Unavailable

14

SCREW, RIM FITTING

150-84125-00-00

Unavailable

15

BRACKET, LICENCE

124-84551-60-35

Unavailable

16

TAILLIGHT UNIT ASY

127-84510-60-00

Unavailable

17

. COVER, TAILLIGHT

124-84516-60-00

Unavailable

18

. SEAT, BASE

124-84512-60-00

Unavailable

19

. BASE, TAILLIGHT

127-84511-60-00

Unavailable

20

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

21

. LENS, TAILLIGHT

124-84521-60-00

Unavailable

22

SCREW,PAN HEAD

92503-04015-00

Unavailable

23

. WASHER

124-84522-60-00

Unavailable

24

WASHER, TOOTH

92990-06300-00

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

NUT (J17)

95380-06800-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

NUT, HEXAGON

95380-06600-00

Unavailable

29

EMBLEM, HEADLIGHT

122-84141-01-00

Unavailable

30

SEAT, EMBLEM

122-84142-00-00

Unavailable
