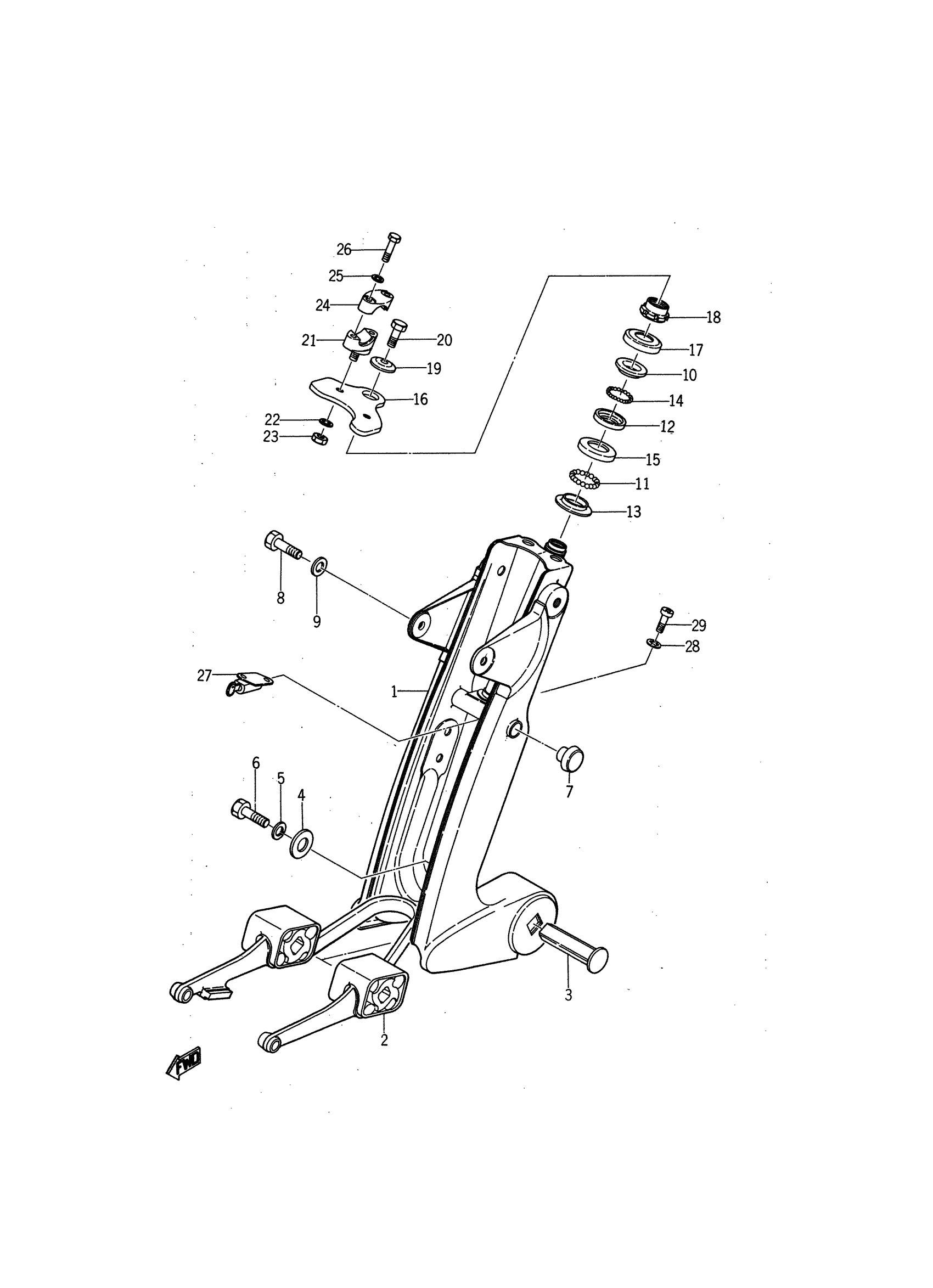

Yamaha YJ1 (RIVERSIDE 55) 1964 FRONT FORK (YJ1 - 1K) Diagram

#

Description
Price

1

FORK COVER

109-23310-00-81

Unavailable

2

ARM ASSEMBLY 1

109-23360-00-00

Unavailable

3

STEM, SQUARE

102-23368-00-00

Unavailable

4

WASHER, SQUARE STEM

102-23369-00-00

Unavailable

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

BOLT, HEXAGON

97013-08016-00

$1.01

7

CAP, SIDE 2

163-23339-00-00

Unavailable

8

BOLT, HEXAGON

97013-08020-00

$1.16

9

WASHER, PLAIN

92990-08200-00

Unavailable

10

RACE, BALL 1

BP2-23411-00-00

$11.49

11

BALL

93501-04011-00

$8.49

12

RACE, BALL 2

BP2-23412-00-00

$7.49

13

RACE, BALL 1

B6E-23411-00-00

$8.49

14

BALL

93503-16003-00

$2.72

15

RACE, BALL 2

B6E-23412-00-00

$13.49

16

CROWN, HANDLE

163-23435-00-35

Unavailable

17

COVER, BALL RACE

122-23416-00-00

Unavailable

18

NUT, FITTING 1

163-23453-00-00

Unavailable

19

WASHER, CROWN

163-23443-00-00

Unavailable

20

BOLT 1222345100

90105-10006-00

Unavailable

21

HOLDER, HANDLE LOWER

122-23442-03-00

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

23

NUT, SELF LOCKING

90185-10031-00

Unavailable

24

HOLDER, HANDLE UPPER

462-23441-01-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

BOLT (682)

97095-06040-00

Unavailable

27

STEERING LOCK ASSEMBLY

2N3-23408-00-00

Unavailable

28

WASHER, EX.TOOTH

92990-05400-00

Unavailable

29

SCREW,PAN HEAD

92503-05012-00

Unavailable
