Description

Price

1

FRAME COMP.

109-21110-01-81

Unavailable

2

BOLT, FLANGE(2UJ)

95814-08110-00

$7.49

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

NUT(6L2)

95333-08600-00

$2.49

5

REAR CUSHION ASSY

109-22210-00-02

Unavailable

6

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

7

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

8

NUT, CROWN (650)

95380-10800-00

Unavailable

9

FLAP

122-21621-00-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

COVER, SIDE 1

109-21711-00-81

Unavailable

15

WASHER PLATE 122217250000

90202-07015-00

$8.49

16

KNOB, SIDE COVER 1

102-21714-00-00

Unavailable

17

RING, STOP

102-21718-00-00

Unavailable

18

COVER,SIDE 2

122-21721-00-81

Unavailable

19

KNOB,SIDE COVER 2

122-21724-00-00

Unavailable

20

NUT(650)

95380-06700-00

Unavailable

21

BAND, TOOL

122-21376-00-00

Unavailable

22

PIN, COTTER

91490-30030-00

Unavailable

23

BOLT

90101-12089-00

Unavailable

24

TOOL KIT

1E7-W2810-00-00

Unavailable

25

PLUG,SPEC'L SHAPE

90338-09060-00

Unavailable

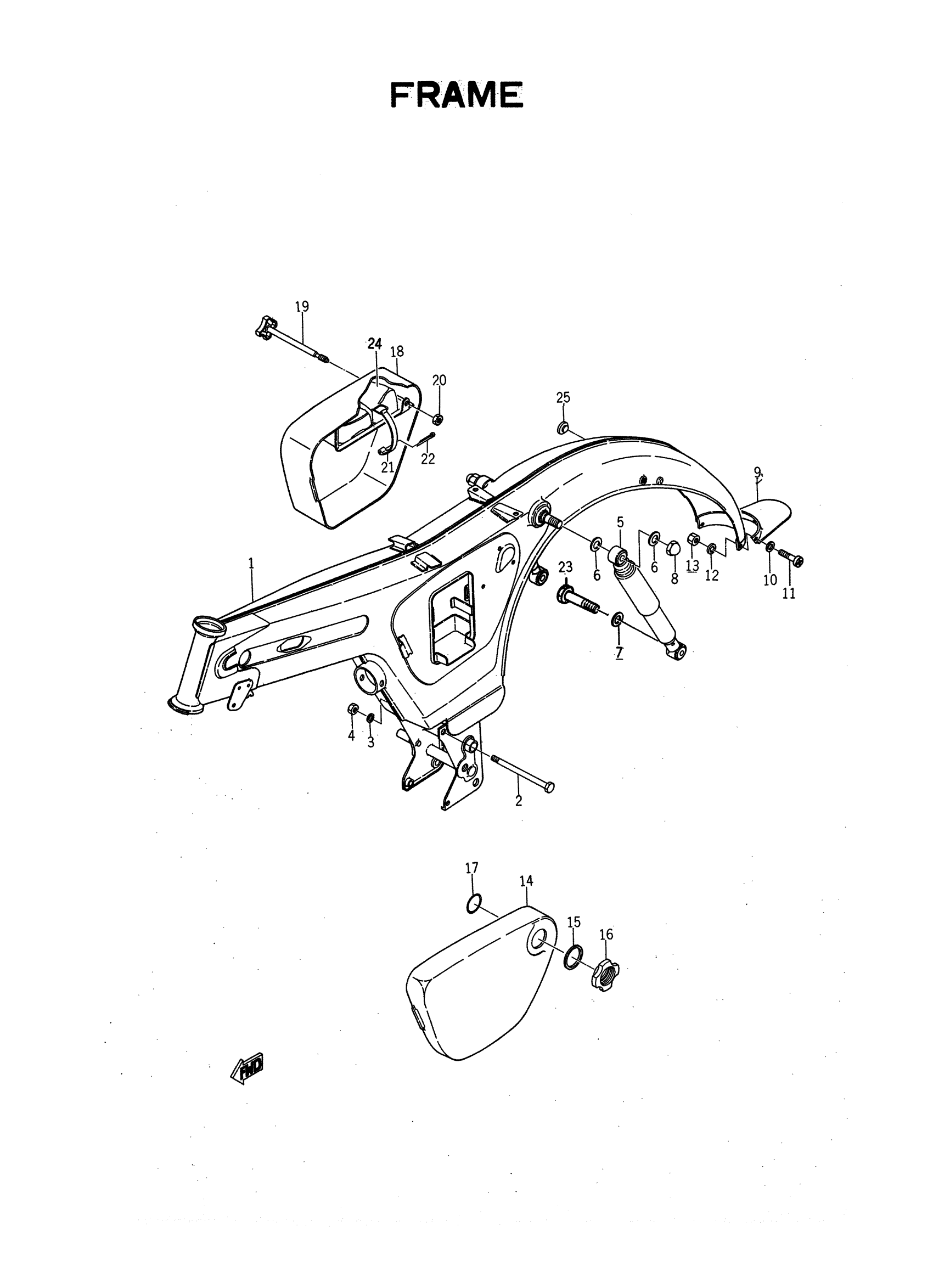

Yamaha YJ1 (RIVERSIDE 55) 1964 FRAME Diagram

FRAME COMP.

BOLT, FLANGE(2UJ)

YBS67-8 WASHER, SPRING

NUT(6L2)

REAR CUSHION ASSY

WASHER, PLATE (4N0)

WASHER, PLATE(3BM)

NUT, CROWN (650)

FLAP

YBS66-6 WASHER, PLAIN

SCREW, PAN HEAD(6B0)

WASHER, SPRING

NUT, HEXAGON

COVER, SIDE 1

WASHER PLATE 122217250000

KNOB, SIDE COVER 1

RING, STOP

COVER,SIDE 2

KNOB,SIDE COVER 2

NUT(650)

BAND, TOOL

PIN, COTTER

BOLT

TOOL KIT

PLUG,SPEC'L SHAPE
