Description

Price

1

FRT FLSHR LITE ASY

109-83310-11-35

Unavailable

2

FRONT FLASHER LAMP

109-83320-11-33

Unavailable

3

BULB, FLASHER

104-83331-10-00

Unavailable

4

. LENS, FLASHER

102-83332-20-00

Unavailable

5

WASHER, SPRING

92990-03100-00

$8.49

6

. SCREW

92503-03006-00

Unavailable

7

. NUT

95380-08700-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

R FLSHR LITE ASY

104-83330-10-93

Unavailable

10

BULB, FLASHER

104-83331-10-00

Unavailable

11

. LENS, FLASHER

102-83332-20-00

Unavailable

12

. SCREW

92503-03006-00

Unavailable

13

WASHER, SPRING

92990-03100-00

$8.49

14

NUT(6L2)

95333-08600-00

$2.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

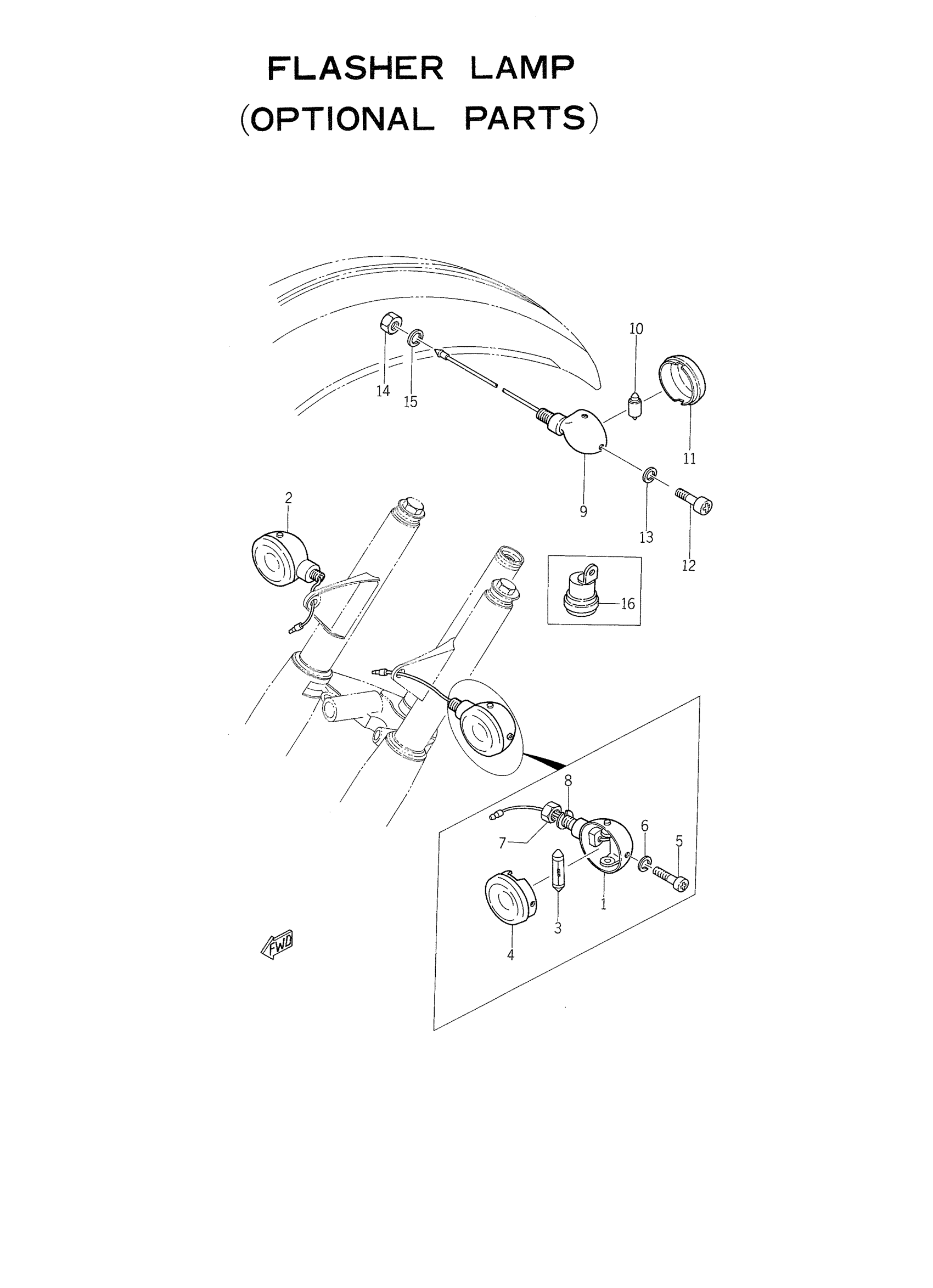

Yamaha YJ1 (RIVERSIDE 55) 1964 FLASHER LIGHT Diagram

FRT FLSHR LITE ASY

FRONT FLASHER LAMP

BULB, FLASHER

. LENS, FLASHER

WASHER, SPRING

. SCREW

. NUT

YBS67-8 WASHER, SPRING

R FLSHR LITE ASY

BULB, FLASHER

. LENS, FLASHER

. SCREW

WASHER, SPRING

NUT(6L2)

YBS67-8 WASHER, SPRING
