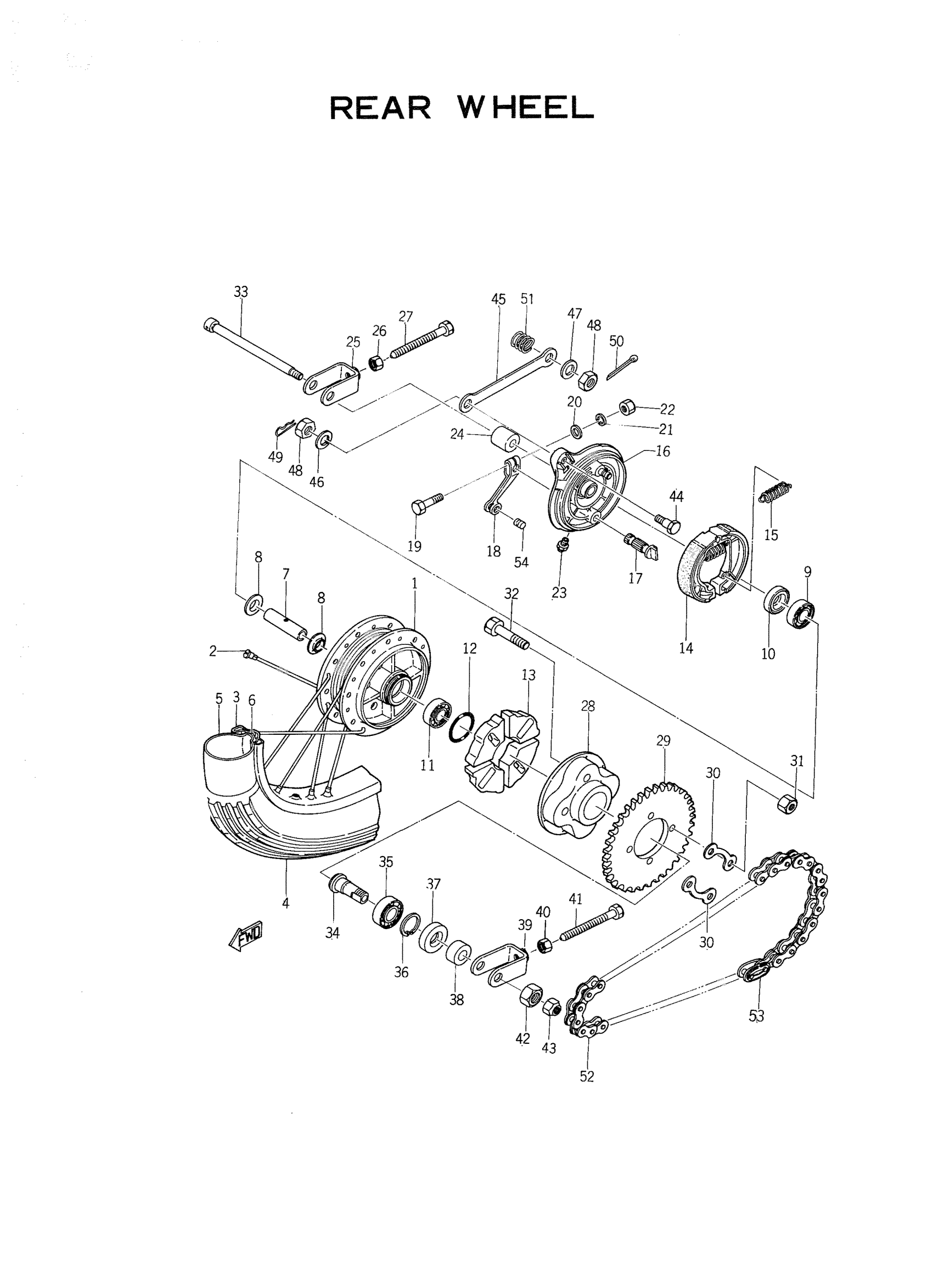

Yamaha YGS1T (YGS1T) 130 1966 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

102-25311-00-38

Unavailable

2

SPOKE SET, REAR

122-25304-00-00

Unavailable

3

RIM 1.40X17

94414-17003-00

Unavailable

4

TIRE 3.00X17

94130-17066-00

Unavailable

5

TUBE (1E2)

94227-17106-00

$21.99

6

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

$9.49

7

SPACER

90560-12145-00

$20.99

8

FLANGE, SPACER

109-25315-00-00

$7.99

9

BRG.

93306-30101-00

$36.99

10

OIL SEAL (21X37X7-102)

93104-21016-00

$14.99

11

BEARING

93306-30102-00

$39.99

12

O-RING (102)

93210-41041-00

$7.49

13

DAMPER

102-25364-00-00

Unavailable

14

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

15

SPRING, TENSION (566).

90506-16150-00

$9.49

16

BRAKE SHOE PLT ASY

339-25320-10-00

Unavailable

17

CAM SHAFT

122-25351-02-00

Unavailable

18

LEVER, CAM SHAFT

122-25355-00-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

NIPPLE, GREASE

93700-06M03-00

Unavailable

24

COLLAR

162-25386-01-00

Unavailable

25

PULLER,CHAIN 2

130-25389-00-00

Unavailable

26

NUT, HEXAGON

95380-06600-00

Unavailable

27

BOLT HEXAGON 167253790000

90101-06016-00

Unavailable

28

CLUTCH, HUB

102-25366-00-00

Unavailable

29

SPROCKET, DRIVEN (35T)

5A7-25435-01-00

Unavailable

29

SPROCKET, DRIVEN (37T)

122-25437-11-00

Unavailable

29

SPROCKET,DRVN47T

4U5-25447-10-00

Unavailable

29

SPROCKET, DRIVN 49T

122-25449-10-33

Unavailable

29

SPROCKET, DRIVN 51T

122-25451-10-00

Unavailable

29

SPROCKET DRIVN 39T

132-25439-00-00

Unavailable

30

WASHER

4AW-25412-00-00

Unavailable

31

NUT(6L2)

95333-08600-00

Unavailable

32

BOLT

102-25411-00-00

Unavailable

33

AXLE,WHEEL

357-25381-00-00

Unavailable

34

AXLE,SPROCKET

102-25387-02-00

Unavailable

35

BEARING(3BN)

93306-00438-00

Unavailable

36

CIRCLIP(5U8)

99009-42500-00

Unavailable

37

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

38

COLLAR

90387-12098-00

Unavailable

39

PULLER,CHAIN 1

130-25388-09-00

Unavailable

40

NUT, HEXAGON

95380-06600-00

Unavailable

41

BOLT HEXAGON 167253790000

90101-06016-00

Unavailable

42

NUT, HEXAGON

90170-18165-00

Unavailable

43

NUT,SPEC'L SHAPE

90179-10106-00

Unavailable

44

BOLT 1022537300

90109-08183-00

Unavailable

45

BAR, TENSION

102-25371-00-00

Unavailable

46

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

47

WASHER, PLAIN

92990-08200-00

Unavailable

48

. NUT

95380-08700-00

Unavailable

49

CLIP

102-35375-00-00

Unavailable

50

PIN, COTTER (648)

91490-20015-00

Unavailable

51

SPRING,COMPRESSION

90501-20129-00

Unavailable

52

CHAIN, DRIVE

9Y580-52101-00

Unavailable

53

. JOINT, CHAIN

92604-20001-00

Unavailable

54

PIN, CLEVIS

148-27337-00-00

Unavailable
