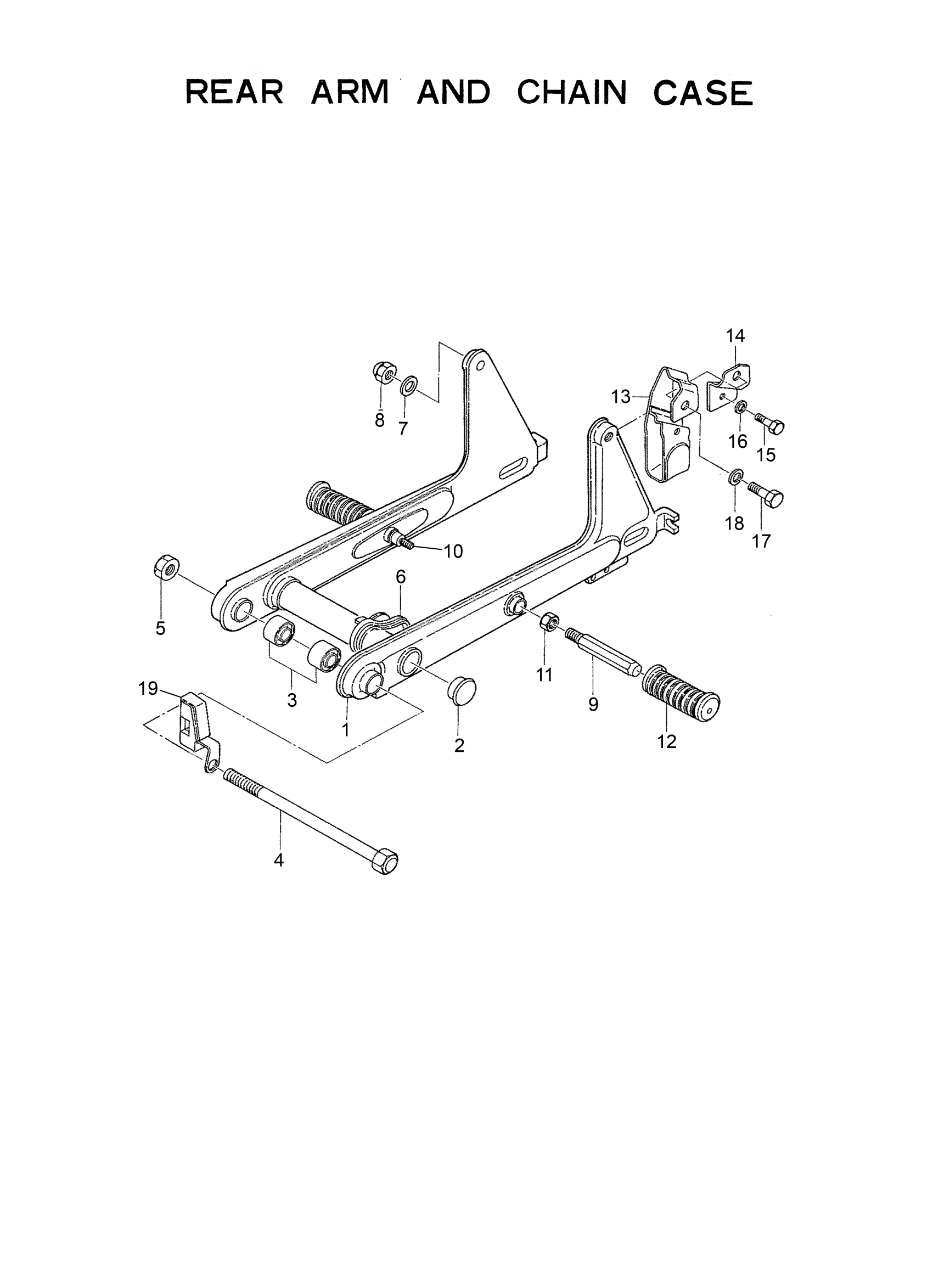

Yamaha YGS1T (YGS1T) 130 1966 REAR ARM AND CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

124-22110-03-81

Unavailable

2

CAP, REAR ARM

180-22117-00-00

$7.99

3

BUSH 1

102-22123-00-00

Unavailable

4

SHAFT, PIVOT

486-22141-01-00

$33.99

5

NUT, SELF LOCKING

90185-10031-00

Unavailable

6

SEAL,GUARD

296-22151-01-00

Unavailable

7

WASHER PLATE 122222440000

90201-12175-00

Unavailable

8

NUT, CROWN

90176-12006-00

Unavailable

9

BOLT

90101-12121-00

Unavailable

10

BOLT

90101-12120-00

Unavailable

11

NUT, HEXAGON

90170-12061-00

Unavailable

12

COVER, RR FOOTREST

128-27433-00-00

Unavailable

13

GUARD,CHAIN

130-22153-00-81

Unavailable

14

BRACKET,CHAIN GARD

130-22154-00-81

Unavailable

15

BOLT (661)

97013-06012-00

$5.60

16

WASHER, SPRING

92995-06100-00

Unavailable

17

BOLT(6TA)

97027-12020-00

Unavailable

18

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

19

PROTECTOR, CHAIN

124-15493-00-00

Unavailable
