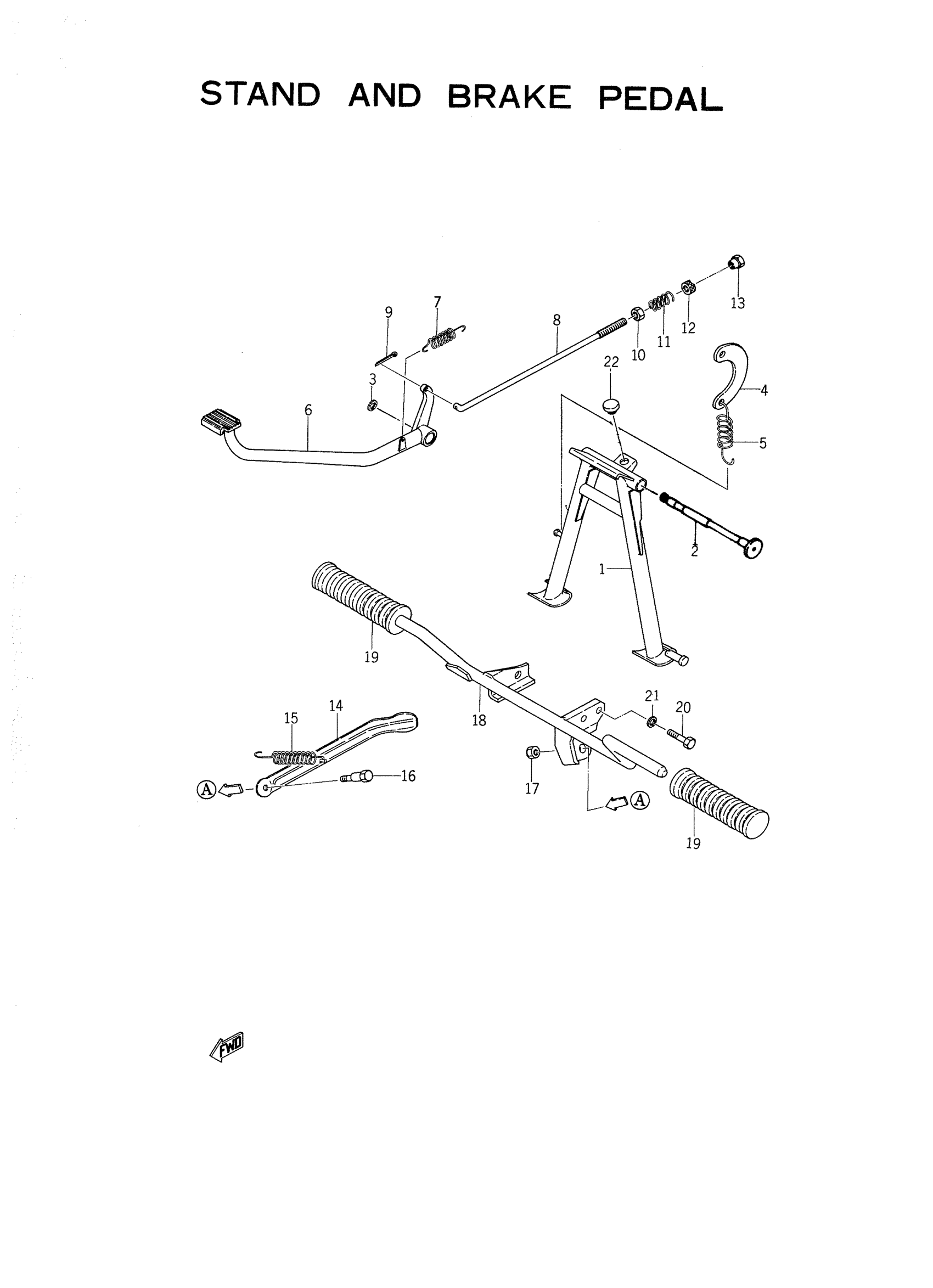

Yamaha YGS1 (YGS1) 129 1966 STAND - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

128-27111-01-00

Unavailable

2

SHAFT, MAIN STAND

122-27112-00-00

$10.99

3

CIRCLIP (122)

93430-12008-00

$8.49

4

LINK, MAIN STAND

109-27115-00-00

$4.52

5

SPRING (122-27116-00)

90506-29054-00

$4.82

6

PEDAL,BRAKE

128-27211-00-91

Unavailable

7

SPRING, TENSION

90506-26051-00

Unavailable

8

ROD, BRAKE

102-27231-01-00

Unavailable

9

. PIN, COTTER

91490-12012-00

Unavailable

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

SPRING, (180-27236-00)

90501-10245-00

$8.49

12

SEAT, SPRING

148-27239-00-00

Unavailable

13

NUT (25K)

90179-06411-00

$8.49

14

STAND, SIDE

122-27311-0100

Unavailable

15

SPRING TENSION 150273160000

90506-25047-00

$9.49

16

BOLT, SIDE STAND

122-27317-00-00

Unavailable

17

. NUT

95380-08700-00

Unavailable

18

FOOTREST

126-27411-00-00

Unavailable

19

COVER, FOOTREST

122-27413-00-00

Unavailable

20

BOLT, HEXAGON

97013-08020-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

STOPPER, MAIN STAND

128-27114-00-00

Unavailable
