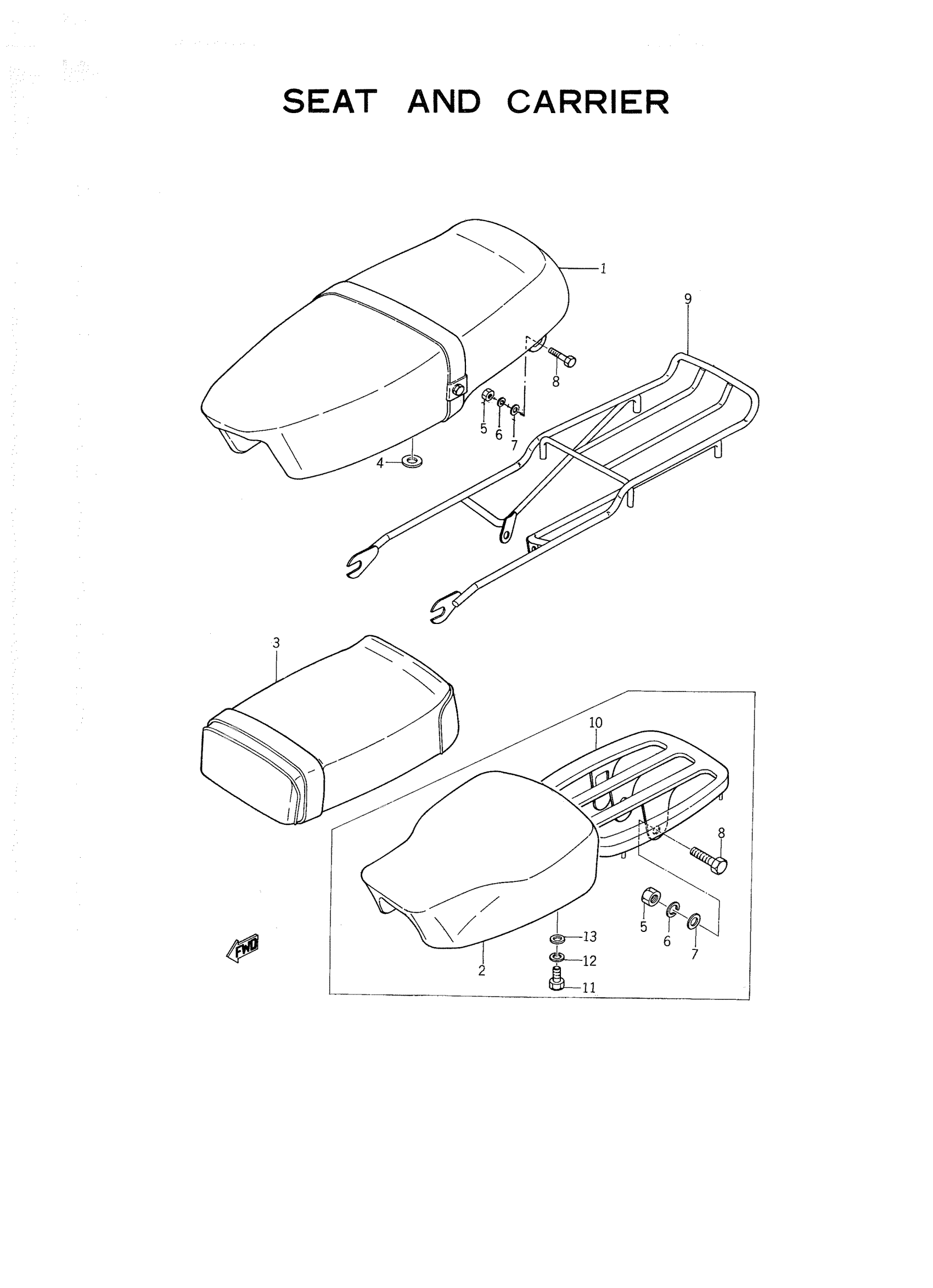

Yamaha YGS1 (YGS1) 129 1966 SEAT - CARRIER Diagram

#

Description

Price

1

DOUBLE SEAT ASY

127-24730-60-00

Unavailable

2

SINGLE SEAT ASSY

129-24710-00-00

Unavailable

3

TANDEM SEAT ASSEMBLY

107-24750-00-00

Unavailable

4

WASHER, PLATE (4N0)

90201-126A7-00

$5.98

5

NUT(6L2)

95333-08600-00

$3.15

6

YBS67-8 WASHER, SPRING

92990-08100-00

$4.32

7

WASHER, PLAIN

92990-08200-00

$2.41

8

BOLT(JA9)

90101-08691-00

$5.13

9

SUB CARR YG1/YL1

122-24830-00-00

Unavailable

10

CARRIER ASSY.

122-24810-00-00

Unavailable

11

BOLT(JA9)

90101-08691-00

$5.13

12

YBS67-8 WASHER, SPRING

92990-08100-00

$4.32

13

WASHER, PLAIN

92990-08200-00

$2.41
