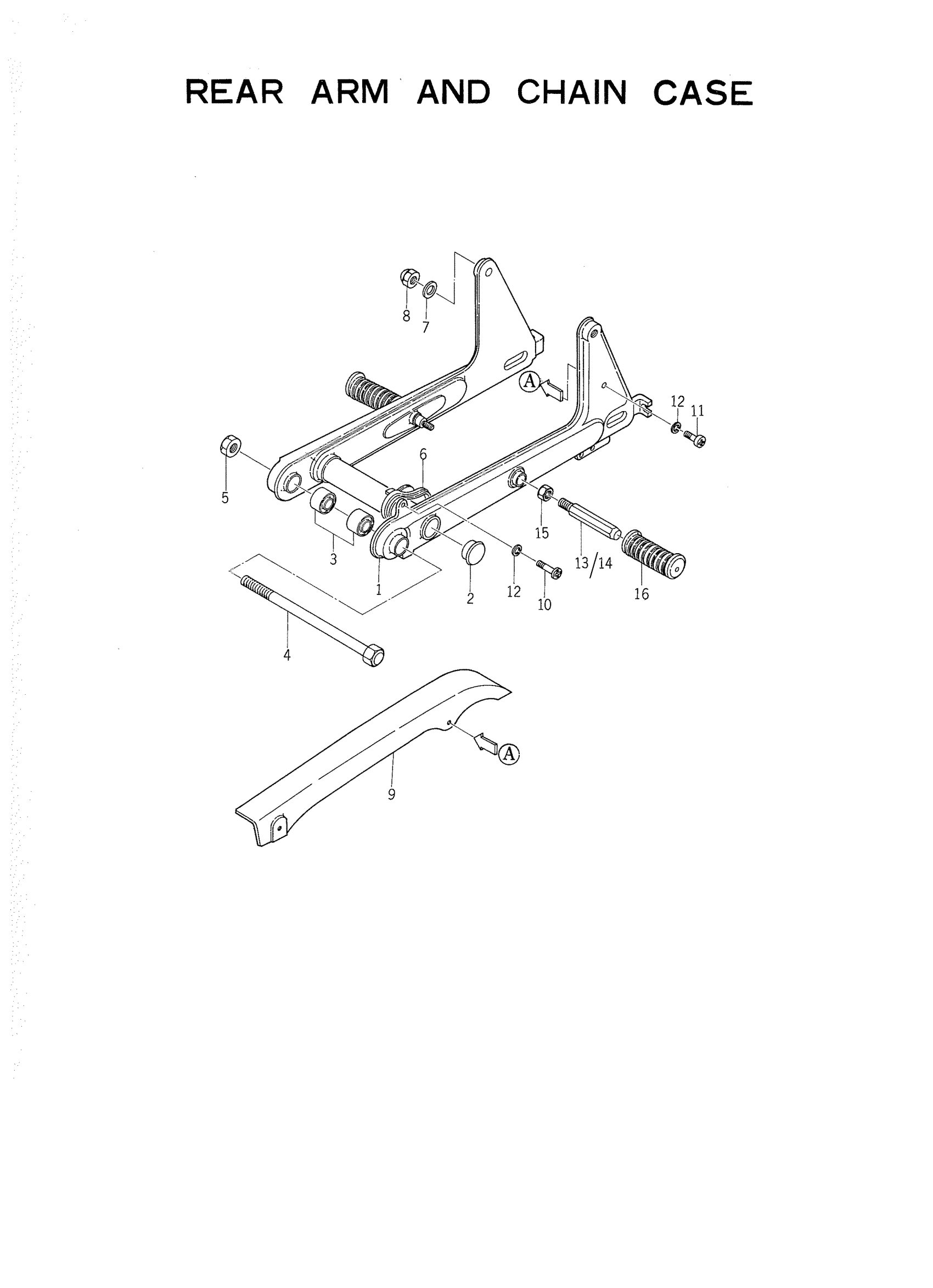

Yamaha YGS1 (YGS1) 129 1966 REAR ARM AND CHAIN CASE Diagram

#

Description

Price

1

REAR ARM COMP

129-22110-00-00

Unavailable

2

CAP, REAR ARM

180-22117-00-00

$7.99

3

BUSH 1

102-22123-00-00

Unavailable

4

SHAFT, PIVOT

486-22141-01-00

$33.99

5

NUT, SELF LOCKING

90185-10031-00

Unavailable

6

SEAL,GUARD

296-22151-01-00

Unavailable

7

WASHER PLATE 122222440000

90201-12175-00

Unavailable

8

NUT, CROWN

90176-12006-00

Unavailable

9

CASE, CHAIN

128-22311-00-35

Unavailable

10

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

11

SCREW, PAN HEAD

92501-5002-00

Unavailable

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

BOLT

90101-12121-00

Unavailable

14

BOLT

90101-12120-00

Unavailable

15

NUT, HEXAGON

90170-12061-00

Unavailable

16

COVER, RR FOOTREST

128-27433-00-00

Unavailable
