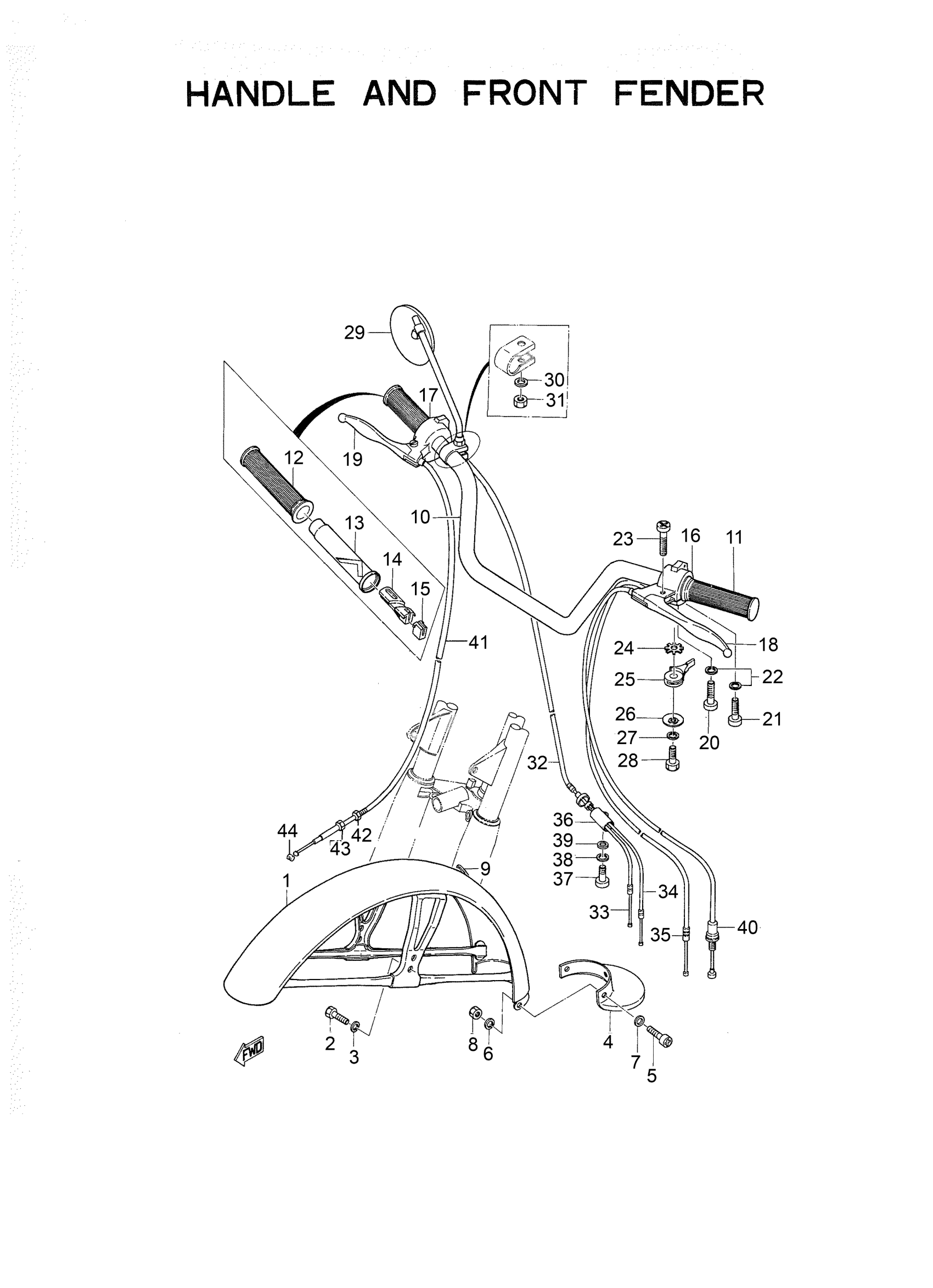

Yamaha YGS1 (YGS1) 129 1966 HANDLE AND FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP

129-21510-00-00

Unavailable

2

BOLT(62E)

97013-08012-00

Unavailable

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

FLAP, FRONT FENDER

129-21521-00-33

Unavailable

5

SCREW, PAN

98517-06012-00

$3.78

6

WASHER, SPRING

92995-06100-00

Unavailable

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

8

NUT(650)

95380-06700-00

$8.49

9

PAD, CABLE

122-21517-00-00

Unavailable

10

HANDLEBAR

126-26111-01-00

Unavailable

11

GRIP LH

102-26241-00-00

Unavailable

12

GRIP RH

102-26242-00-00

Unavailable

13

TUBE,THRTL GUIDE

207-26243-00-00

Unavailable

14

SLIDER, THROTTLE

102-26244-00-00

Unavailable

15

STOPPER,CABLE

135-26245-00-00

Unavailable

16

LEVER HOLDER ASSEMBLY 1

124-82710-11-94

Unavailable

17

LEVER HOLDER ASSEMBLY 2

122-82720-11-94

Unavailable

18

LEVER L

803-83912-00-38

Unavailable

19

. LEVER R

122-83922-01-00

Unavailable

20

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

21

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

22

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

23

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

24

WASHER,SPEC'L SHAP

90209-12115-00

Unavailable

25

LEVER, STARTER

103-83941-00-00

Unavailable

26

COVER, STARTER

122-83942-00-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

29

MIRROR ASSEMBLY

257-26290-00-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

WASHER(JN5)

92907-08100-00

Unavailable

32

CABLE, THROTTLE 1

126-26311-01-00

Unavailable

33

CABLE, THROTTLE 2

126-26312-00-00

Unavailable

34

CABLE, PUMP

126-26321-00-00

Unavailable

35

CABLE, STARTER 1

122-26331-00-00

Unavailable

36

CONNECTOR, CABLE

137-26261-01-00

Unavailable

37

SCREW, PAN

98517-06012-00

$3.78

38

WASHER, SPRING

92995-06100-00

Unavailable

39

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

40

CABLE, CLUTCH

122-26335-00-00

Unavailable

41

CABLE,BRAKE

102-26341-01-00

Unavailable

42

BOLT (109-26345-00)

90123-06011-00

Unavailable

43

NUT (109-26344-00)

90179-06143-00

Unavailable

44

END, WIRE

164-26363-00-00

Unavailable
